Smart-1 Installing and Removing
the SAN Card
Classi ficati on: [P rotecte d] P/N TBD
Protecte d

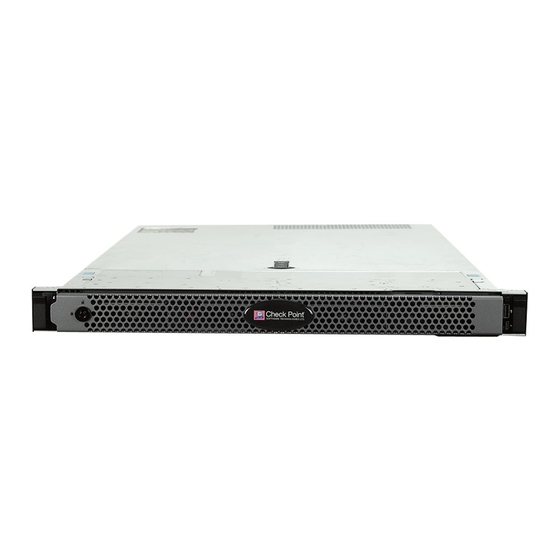

This document is for appliance models Smart-1 5050 and Smart-1 5150.
Safety Instructions
•
Lift the appliance with assistance. To avoid injury, do not attempt to lift the
appliance by yourself.
•
Opening or removing the appliance cover, while the appliance is powered on
may expose you to a risk of electric shock.
•
Do not operate the appliance without the cover for more than five minutes.
Operating the appliance without the cover can result in component damage.
•
Many repairs may only be done by a certified service technician. Only
perform troubleshooting and simple repairs as authorized in your product
documentation, or as directed by the technical support.
•
We recommend that you always use an antistatic mat and antistatic strap on
your wrist, while working on components inside the appliance.
•
To ensure proper operation and cooling, all bays in the appliance and
cooling fans must be always populated with a component or a blank.
For more information, see the
Regulatory Information
carton.
Classification [Protected]
©2019 Check Point Software Technologies Ltd. All rights reserved.
For a list of our trademarks, please refer to: www.checkpoint.com/copyright.html.
For a list of our Third Party Copyright notices, please refer to:
Enterprise Products Safety, Environmental, and
booklet supplied in the original appliance shipping
www.checkpoint.com/3rd_party_copyright.html

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Smart-1 5050 and is the answer not in the manual?

Questions and answers

Related Manuals for Check Point Smart-1 5050

Summary of Contents for Check Point Smart-1 5050

  • Page 1 SAN Card Classi ficati on: [P rotecte d] P/N TBD Protecte d This document is for appliance models Smart-1 5050 and Smart-1 5150. Safety Instructions • Lift the appliance with assistance. To avoid injury, do not attempt to lift the appliance by yourself.

  • Page 2: Hardware Components

    Security Appliance. Important - Make sure that you are electromagnetically grounded when working with hardware components of the appliance. ESD (electrostatic discharge) can damage the appliance. Hardware Components Smart-1 5050 Item Description Front panel Riser 1 Riser 2 Rear panel...
  • Page 3 To install a new expansion SAN card on Smart-1 5050 appliances: 1. Prepare the appliance with a shut down, halt and disconnection of power. 2. Remove the riser.
  • Page 4 We recommend that you populate the bottom-most slot first. 3. Reassemble the appliance. 4. Install a transceiver. To replace an existing expansion SAN card on Smart-1 5050 appliances: 1. Prepare the appliance with a shut down, halt and disconnection of power.

  • Page 5: Preparing The Appliance

    PSU removal. 7. Remove any other attached cables, if necessary. 8. Remove the appliance from the rack. Installing the Telescoping Rails See the relevant booklets for illustrated installation procedures: Smart-1 525 and Smart-1 5050 Telescoping Rails http://supportcontent.checkpoint.com/documentation_download?ID=58649...
  • Page 6 Hold the cover on both sides and lift the cover away from the appliance. Removing the Riser Smart-1 5050 Hold the touch points and lift the riser, from the riser connector, on the system board. Removing expansion riser 1:...
  • Page 7 Removing expansion riser 2: Smart-1 5150 Press the release latches, and lift the riser from the riser connector on the system board.
  • Page 8 SAN card connector on the riser. 4. Insert the card edge connector firmly into the expansion SAN card connector until the card is fully seated. 5. Close/push the expansion SAN card latch. Installing an expansion SAN card into the expansion riser 1 on Smart-1 5050:...
  • Page 9 Installing an expansion SAN card into the expansion riser 2 on Smart-1 5050: Installing an expansion SAN card into the expansion riser 1 on Smart-1 5150: We recommend that you populate the bottom-most slot first.
  • Page 10 Note - If you do not immediately install a replacement expansion SAN card when a SAN card fails, leave the failed SAN card in place to ensure proper appliance cooling until the new SAN card is installed. Removing an expansion SAN card from the expansion riser 1 on Smart-1 5050:...
  • Page 11 Removing an expansion SAN card from the expansion riser 2 on Smart-1 5050: Removing an expansion SAN card from the expansion riser 1 on Smart-1 5150:...

  • Page 12: Installing The Riser

    Installing the Riser Smart-1 5050 1. Holding the touch points, align the riser with the connector and the riser guide pin on the system board. 2. Lower the riser into place until the riser connector is fully seated in the connector.

  • Page 13: Reassembling The Appliance

    Lower the riser into the system until the riser connector engages with the connector on the system board. Reassembling the Appliance To reassemble the appliance: 1. Install the cover. a) Make sure all internal cables are routed correctly and connected, and no tools or extra parts are left inside the system.
  • Page 14 2. Install the appliance into the rack. Installing the Telescoping Rails See the relevant booklets for illustrated installation procedures: Smart-1 525 and Smart-1 5050 Telescoping Rails http://supportcontent.checkpoint.com/documentation_download?ID=58649 Smart-1 5150 Telescoping Rails http://supportcontent.checkpoint.com/documentation_download?ID=58650 3. If you have transceivers for your expansion SAN card, install them now.

  • Page 15: Replacing A Transceiver

    Replacing a Transceiver If your expansion SAN card contains removable transceivers, you can install and replace these transceivers. Note - The optical transceivers on the SAN card are delicate. • Remove and install the transceivers carefully. • Use ESD (Electrostatic Discharge) precautions such as an antistatic floor mat and an antistatic wrist strap.

  • Page 16: Attaching Cables

    Attaching Cables The Emulex Host Bus Adapter (16GFC) has two ports (Port 0 and Port 1) for fiber optic cables. These tables show the supported cables with length limitations for 16GFC. Multimode Fiber Optic Cables with Short-Wave Lasers Fiber-Optic Cable Maximum Length Min Length Connector...
  • Page 17 Viewing LEDs on the SAN Card After the cabling is complete, make sure to see the LEDs on each port. Self-Test Conditions and Results for the Ports Green LED Yellow LED State No SFP modules installed or boot failure (dead board) POST failure (dead board) Slow blink Boot failure after POST...
  • Page 18 Replacing the Bracket on a SAN Card The Emulex LPe31002 Dual, 16GFC Host Bus Adapter SFP+ ships with the short bracket for the Smart-1 5050 appliance. The long bracket for the Smart-1 5150 appliance is in the carton. If your appliance is a Smart-1 5150, you must replace the SAN card's bracket to make the card fit into the appliance.
  • Page 19 5. Store the transceivers in a safe place using ESD (Electrostatic Discharge) precautions such as antistatic bags. To remove the bracket: 1. Remove the mounting bracket screws from the top of the adapter. 2. Remove the bracket. 3. Align the new bracket tabs with the holes in the adapter. Note - Be careful not to push the bracket past the EMI (Electromagnetic ...
