20 May 2020

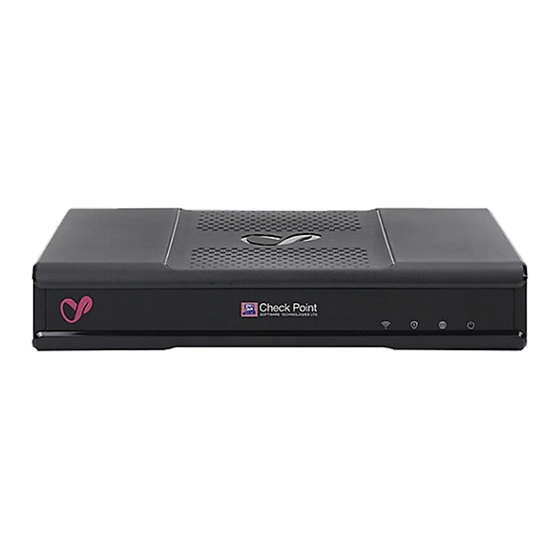

1500 and 3000 Appliance Series
Universal Rack Mount
User Guide
[Classification: Protected]
Models: V80, V81, QB-10, PB-10
P/N 708078

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1500 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Check Point 1500 Series

  • Page 1 20 May 2020 1500 and 3000 Appliance Series Universal Rack Mount User Guide [Classification: Protected] Models: V80, V81, QB-10, PB-10 P/N 708078...
  • Page 2 Check Point. While every precaution has been taken in the preparation of this book, Check Point assumes no responsibility for errors or omissions. This publication and features described herein are subject to change without notice.
  • Page 3 The latest version of this document is at: http://downloads.checkpoint.com/dc/download.htm?ID=103702 To learn more, visit the Check Point Support Center: https://supportcenter.checkpoint.com Feedback Check Point is engaged in a continuous effort to improve its documentation. Please help us by sending your comments to: cp_techpub_feedback@checkpoint.com Revision History Date...
  • Page 4: Table Of Contents

    Table of Contents Universal Rack Mount Shelf Power Adapters Shipping Carton Contents Installation Workflow Appliance Installation 1530 / 1550 and 1570 / 1590 Appliances Single appliance installation Side by side appliance installation Installing the power adapter(s) 3000 Appliances Single appliance installation Side by side appliance installation Installing the power adapters Uninstalling the appliance...
  • Page 5: Universal Rack Mount Shelf

    Universal Rack Mount Shelf The Universal Rack Mount Shelf for Desktop Appliances can hold one appliance, or two appliances in a side by side (double) installation. The Rack Mount Shelf dimensions are 482mm x 340mm x 44.4mm, and weight 1.73Kg. The shelf is mounted on a 1U rack. You can attach these appliances on the Rack Mounting Kit: 1500 Appliance Series - 1530 / 1550, 1570 / 1590 Wired 3000 Appliance Series - 3100, 3200, 3600, 3800...
  • Page 6: Shipping Carton Contents

    Shipping Carton Contents Item Description Quantity Rack Mount Shelf Accessory kit for Rack Mount Shelf Accessories : Item Description Quantity Icon Power Adapter Bracket Washer Fixator (in bag with washers) M3 black screw (for appliance) M3 black round head screw with washer (for power adapters) Cable tie...
  • Page 7: Installation Workflow

    Installation Workflow Installation specifications: Installation Appliances Appliance Orientation Type 1530 All 1500 appliances: All 1500 appliances: 1550 LEDs are facing the rear, and ports 1570 are facing the front of the shelf Single 1590 LEDs are facing the front, and ports Side are facing the rear of the shelf side...
  • Page 8: Appliance Installation

    Appliance Installation Rack Mount Shelf Legend Shelf Hole Used for Appliance Installation 1530 / 1550 Side by Side 1570 / 1590 Side by Side 3x00 Side by Side 1530 / 1550 Middle 1570 / 1590 Middle 3x00 Middle...
  • Page 9: 1530 / 1550 And 1570 / 1590 Appliances

    1530 / 1550 and 1570 / 1590 Appliances Single appliance installation Note - A single appliance can only be installed in the middle of the shelf, not on the side. All appliances can be placed with their ports facing the front or rear of the shelf.
  • Page 10 4. Line up the holes on the bottom of the appliance with the screws. Place the appliance on top of the screws and slide it forward until it locks into place. Note - The holes on the back of the appliance are the same ones used for wall mounting.
  • Page 11 1530 / 1550 single installation: LEDs are facing the front, and ports are facing the rear of the shelf. Note - The front panel of the appliance is located 5 mm from the front of the shelf. 1570 / 1590 single installation: LEDs are facing the rear, and ports LEDs are facing the front, and ports are facing the front of the shelf.
  • Page 12: Side By Side Appliance Installation

    Side by side appliance installation Follow the steps for a single appliance installation but place each appliance on one side of the shelf. Note - All appliances can be placed with their ports facing the front or rear of the shelf. 1530 / 1550 side by side installation: LEDs are facing the rear, and ports are facing the front of the shelf.
  • Page 13 1570 / 1590 side by side installation: LEDs are facing the front, and ports are facing the rear of the shelf.
  • Page 14: Installing The Power Adapter(S)

    Installing the power adapter(s) 1. Attach the DC jack of the adapter and plug into the appliance. 2. Place the adapter in the correct position on the shelf and push it until you reach the stopper. The power adapter LED should be facing up. 3.
  • Page 15: 3000 Appliances

    3000 Appliances Single appliance installation Note - A single appliance can only be installed in the middle of the shelf, not on the side. These appliances must be placed with their ports facing the front of the shelf. 1. Place the shelf on a flat surface. 2.
  • Page 16 3000 single installation: Note - The front panel of the appliance is flush with the front of the shelf.
  • Page 17: Side By Side Appliance Installation

    Side by side appliance installation Follow the steps for a single appliance installation but place each appliance on one side of the shelf. Note - These appliances must be placed with their ports facing the front of the shelf. Best practice - The installation process should be done by two people. 3000 side by side installation: Note - The rack may slightly bend in the middle with this setup.
  • Page 18: Installing The Power Adapters

    Installing the power adapters 1. Attach the DC jack of the adapter and plug into the appliance. Note - The 3000 appliances can use 2 adapters per appliance. 2. Place the adapters in the correct position on the shelf. The power adapter LED should be facing up.
  • Page 19: Uninstalling The Appliance

    Uninstalling the appliance Note - This applies to all models of the appliance, in single and side by side installations. 1. Unplug the cable from the power adapters and the appliance. 2. Loosen the screws from the adapter brackets and remove the brackets.
  • Page 20: Replacement Procedure

    Replacement Procedure To replace a unit from a side by side installation: "Uninstalling the appliance" 1. Follow the instructions in the procedure on the previous page 2. Remove the faulty appliance. 3. Follow the "Appliance Installation" on page 8 procedures to install the replacement appliance and power supply.
