The UTM-1 Edge X Series and UTM-1 Edge W Series
Network Requirements
•
10BaseT or 100BaseT Network Interface Card installed on each computer
•
CAT 5 STP (Category 5 Shielded Twisted Pair) Straight Through Ethernet cable
for each attached device
•
A broadband Internet connection via cable or DSL modem with Ethernet
interface (RJ-45)
Rear Panel
All physical connections (network and power) are made via the rear panel of your UTM-1
appliance.

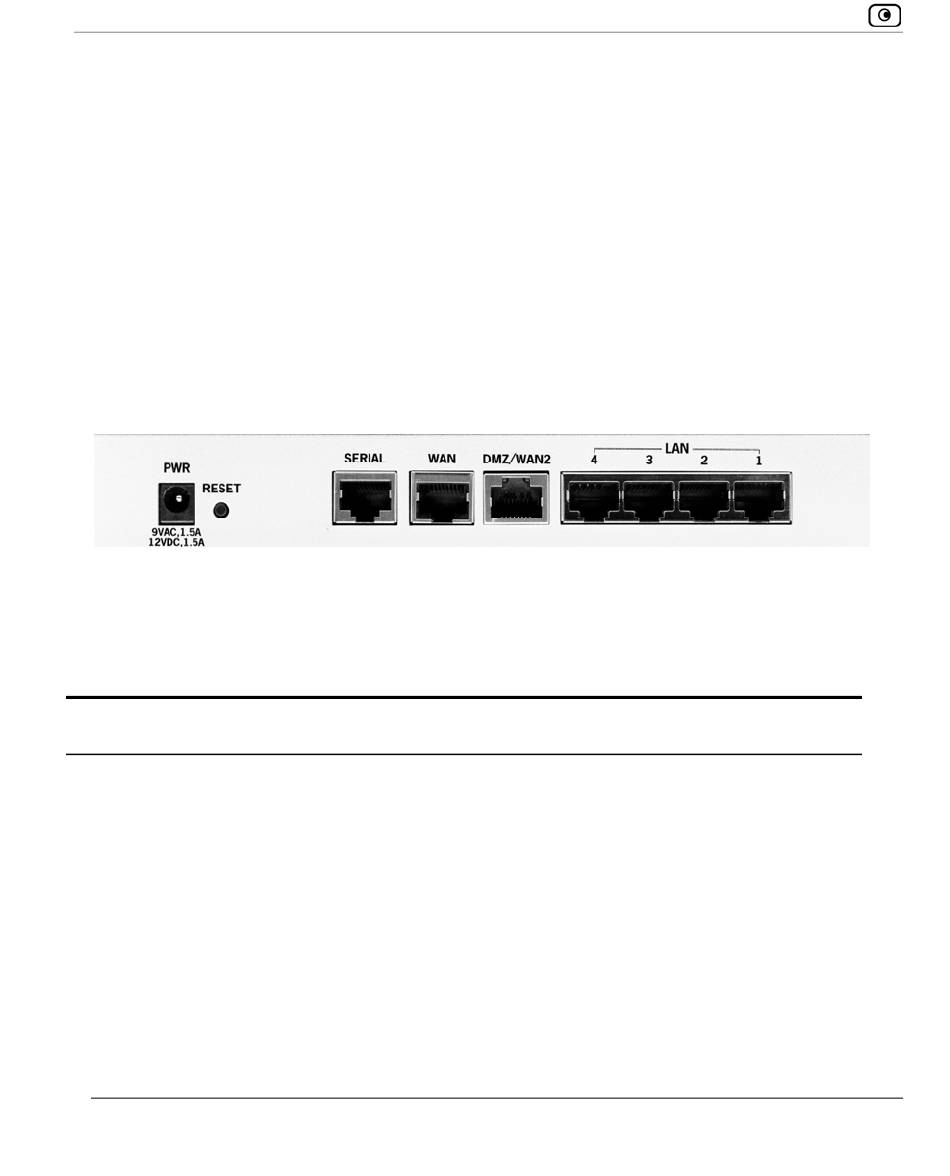

Figure 1: UTM-1 Edge X Appliance Rear Panel
The following table lists the UTM-1 Edge X appliance's rear panel elements.
Table 5: UTM-1 Edge X Appliance Rear Panel Elements
Label Description
PWR A power jack used for supplying power to the unit. Connect the supplied power
supply to this jack.
