The UTM-1 Edge X Series and UTM-1 Edge W Series
Network Requirements
•
10BaseT or 100BaseT Network Interface Card installed on each computer
•
CAT 5 STP (Category 5 Shielded Twisted Pair) Straight Through Ethernet cable
for each attached device
•
An 802.11b, 802.11g or 802.11 Super G wireless card installed on each wireless
station
•
A broadband Internet connection via cable or DSL modem with Ethernet
interface (RJ-45)
Rear Panel
All physical connections (network and power) are made via the rear panel of your UTM-1
appliance.

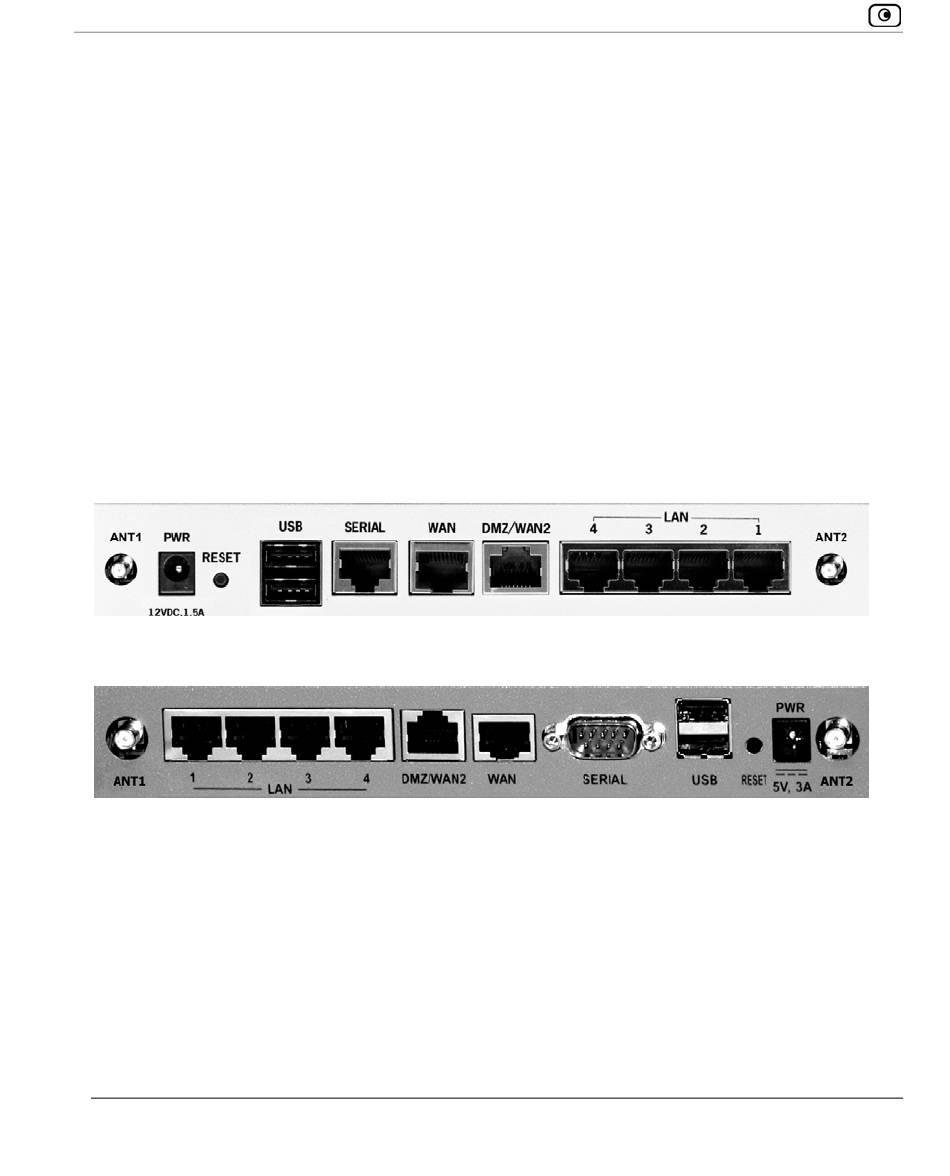

Figure 7: UTM-1 Edge W SBXW-166LHGE-5 Appliance Rear Panel
Figure 8: UTM-1 Edge W SBXW-166LHGE-6 Appliance Rear Panel
The following table lists the UTM-1 Edge W appliance's rear panel elements.
