Front Panel
The UTM-1 Edge X ADSL appliance includes several status LEDs that enable you to
monitor the appliance's operation.

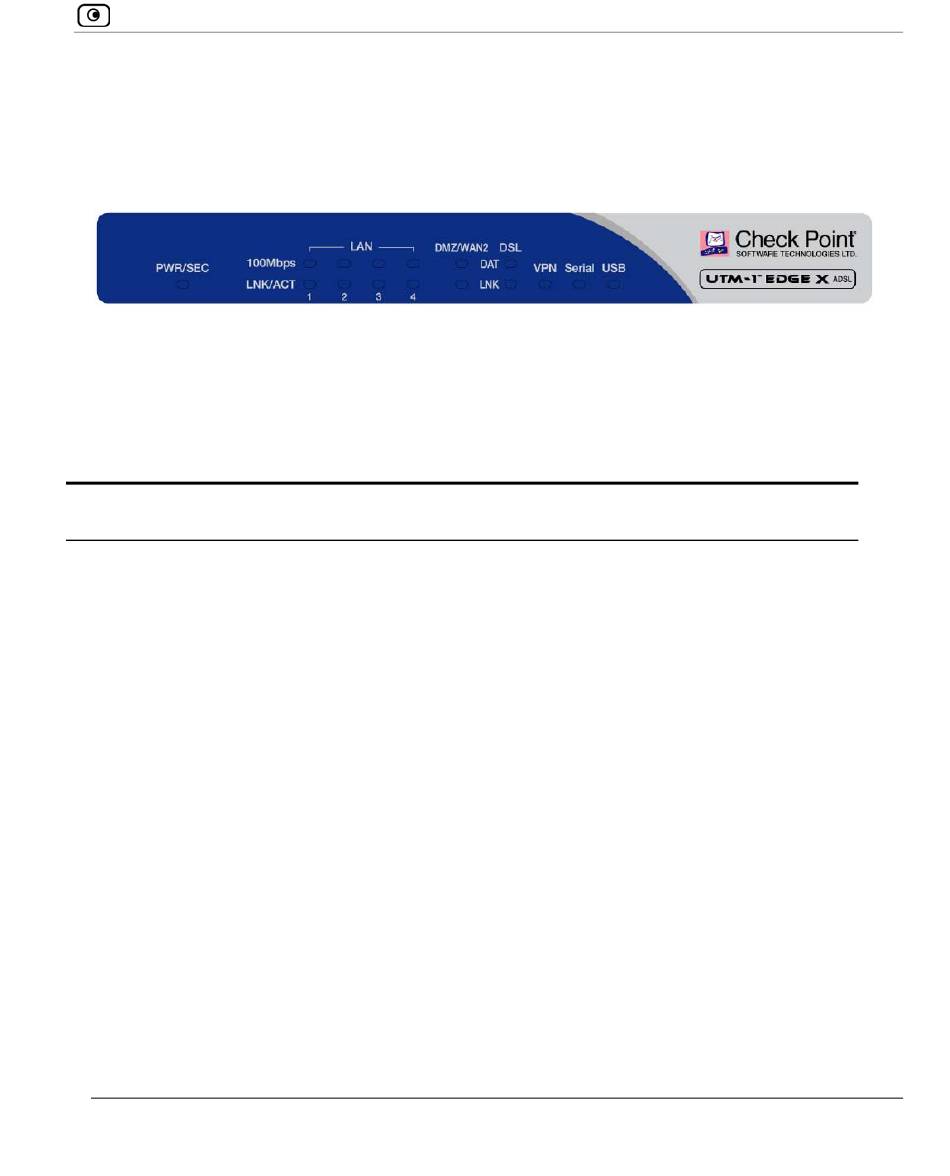

Figure 6: UTM-1 Edge X ADSL Appliance Front Panel
For an explanation of the UTM-1 Edge X ADSL appliance's status LEDs, see the
following table.
Table 11: UTM-1 Edge X ADSL Appliance Status LEDs
LED State
PWR/SEC Off
Flashing quickly (Green)
Flashing slowly (Green)
Flashing (Red)
On (Green)
On (Red)
LINK/ACT Off, 100 Off
LAN 1-4/
DMZ/WAN2
LINK/ACT On, 100 Off
LINK/ACT On, 100 On
Chapter 1: Introduction
The UTM-1 Edge X Series and UTM-1 Edge W Series
Explanation
Power off
System boot-up
Establishing Internet connection
Hacker attack blocked
Normal operation
Error
Link is down
10 Mbps link established for the
corresponding port
100 Mbps link established for the
corresponding port
