Configuring Network Settings

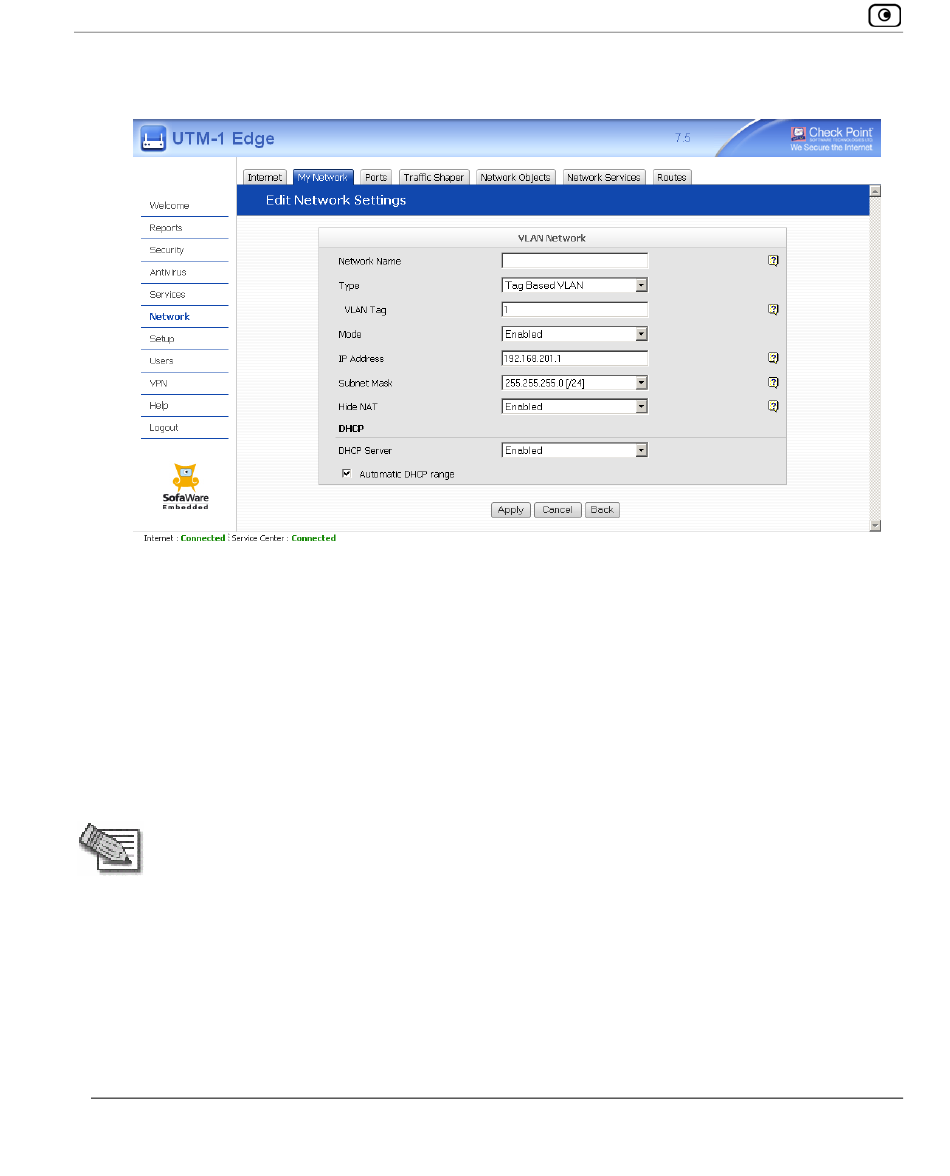

The Edit Network Settings page for VLAN networks appears.
In the Network Name field, type a name for the VLAN.
3.
In the Type drop-down list, select Port Based VLAN.
4.
The VLAN Tag field disappears.
In the Mode drop-down list, select Enabled.
5.
The fields are enabled.
In the IP Address field, type the IP address of the VLAN network's default
6.
gateway.
Note: The VLAN network must not overlap other networks.
In the Subnet Mask field, type the VLAN's internal network range.
7.
8. If desired, enable or disable Hide NAT.
See Enabling/Disabling Hide NAT on page 163.
9. If desired, configure a DHCP server.
See Configuring a DHCP Server on page 164.
