- Page 1 10 February 2021 QUANTUM SPARK 1530 / 1550 APPLIANCE R80.20.XX Getting Started Guide...
- Page 2 Check Point. While every precaution has been taken in the preparation of this book, Check Point assumes no responsibility for errors or omissions. This publication and features described herein are subject to change without notice.
- Page 3 Open the latest version of this Download the latest version of this document in PDF format Feedback Check Point is engaged in a continuous effort to improve its documentation. Please help us by sending your comments Revision History Date Description...
-
Page 4: Table Of Contents
Appliance Name Security Policy Management Security Management Server Connection Internet Connection Local Network Wireless Network Administrator Access Appliance Registration Security Management Server Authentication Software Blade Activation Summary Zero Touch Cloud Service Quantum Spark 1530 / 1550 Appliance R80.20.XX Getting Started Guide | 4... - Page 5 Table of Contents USB Drive Health and Safety Information Information sur la Santé et la Sécurité Support Quantum Spark 1530 / 1550 Appliance R80.20.XX Getting Started Guide | 5...
-
Page 6: Introduction
Introduction Introduction Thank you for choosing Check Point's Internet Security Product Suite. Check Point products provide your business with the most up to date and secure solutions available today. Check Point also delivers worldwide technical services including educational, professional, and support services through a network of Authorized Training Centers, Certified Support Partners, and Check Point technical support personnel to ensure that you get the most out of your security investment. -
Page 7: Shipping Carton Contents
WiFi Antenna RP-SMA type, black color (WiFi models only). Quantum Spark 1530 / 1550 Appliance Quick Start Guide Guides Quantum Spark 1530 / 1550 Appliance Getting Started Guide Code. License Agreement End user license agreement. Quantum Spark 1530 / 1550 Appliance R80.20.XX Getting Started Guide | 7... -
Page 8: Setting Up The Appliance
Setting up the Appliance Setting up the Appliance 1. Remove the Quantum Spark 1530 / 1550 Appliance from the shipping carton and place it on a tabletop. 2. Optional - Remove the transparent protective sticker from the front panel of the appliance. -
Page 9: Connecting The Cables
PC/LAN network port. The Internet LED on the appliance front panel lights up when the Ethernet is connected. Note - Wait 10 seconds between power cycles (off and on). Quantum Spark 1530 / 1550 Appliance R80.20.XX Getting Started Guide | 9... -
Page 10: First Time Deployment Options
First Time Deployment Options There are different options for first time deployment of your gateways: "Using the First Time Configuration Wizard" on page 17 "Zero Touch Cloud Service" on page 32 "USB Drive" on page 33 Quantum Spark 1530 / 1550 Appliance R80.20.XX Getting Started Guide | 10... -
Page 11: Appliance Diagrams And Specifications
This section describes the different features in the front, back, and side panels of the 1530 / 1550 models. Note - Depending on which model appliance you have, some of the specifications below may vary. Wired Quantum Spark 1530 / 1550 Appliance R80.20.XX Getting Started Guide | 11... -

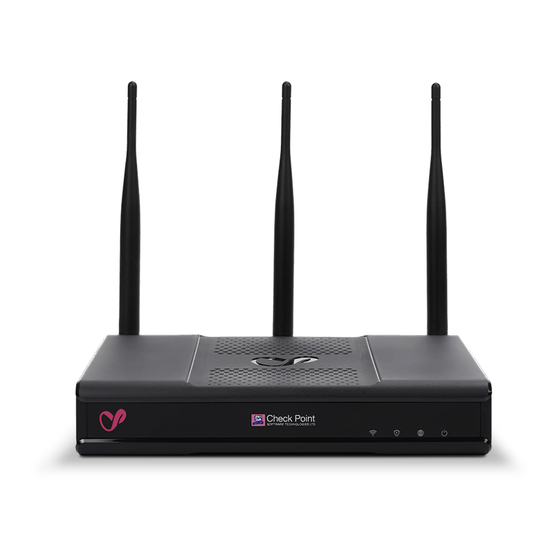

Page 12: Front Panel
Appliance Diagrams and Specifications WiFi (with antennas) Front Panel Note - There is only one set of LEDs. These LEDs show different colors depending on what activity is occurring. Quantum Spark 1530 / 1550 Appliance R80.20.XX Getting Started Guide | 12... -
Page 13: Management Led
Blinks blue (rapidly) SMP is connected. Solid blue. SMP mode is off. LED off Gateway failed to connect to the SMP and will exit from the retry script. Constant red. Quantum Spark 1530 / 1550 Appliance R80.20.XX Getting Started Guide | 13... -
Page 14: Network Leds
Each port uses a bi-color LED to reflect the link/activity and speed, from 10M to 1GbE. RJ45 LED1 (Green) LED2 (Amber) No link 1G link 1G Act Blink 100M link 100M Act Blink 10M link 10M Act Blink Quantum Spark 1530 / 1550 Appliance R80.20.XX Getting Started Guide | 14... -
Page 15: Back Panel
Plug the power adapter cord in here. Factory default Press the button continuously for 12 seconds to restore the appliance to its factory defaults. Power button Push to turn the appliance on or off. Quantum Spark 1530 / 1550 Appliance R80.20.XX Getting Started Guide | 15... -
Page 16: Side Panel
Side Panel Side Panel Item Description Anti-theft slot. Insert anti-theft cable here. Use Kensington and Sunbox TL-623M cable as a reference. Quantum Spark 1530 / 1550 Appliance R80.20.XX Getting Started Guide | 16... -
Page 17: Using The First Time Configuration Wizard
If a security warning message shows, confirm it and continue. First Time Configuration Wizard starts. Welcome Welcome page introduces the product and shows the name of your appliance. Quantum Spark 1530 / 1550 Appliance R80.20.XX Getting Started Guide | 17... -
Page 18: Zero Touch
5. If you fail to connect, an error message appears. Possible errors include: Internet connection is not configured correctly. Internet connection is through a proxy server. Zero Touch is already running. Quantum Spark 1530 / 1550 Appliance R80.20.XX Getting Started Guide | 18... -
Page 19: Authentication Details
If you select a country and install a valid license, but the wireless region of the device does not match the selected country, a warning message shows and you must edit the country information. When the country and wireless region match, you see the full settings. Quantum Spark 1530 / 1550 Appliance R80.20.XX Getting Started Guide | 19... -
Page 20: Appliance Date And Time Settings
- The IP or host name of the primary NTP server. The default server is ntp.checkpoint.com Secondary NTP server - The IP or host name of the secondary NTP server. The default server is ntp2.checkpoint.com Quantum Spark 1530 / 1550 Appliance R80.20.XX Getting Started Guide | 20... -
Page 21: Appliance Name
In the page, select how to manage security settings: Central management - A remote Security Management Server manages the Security Gateway in SmartConsole with a network object and security policy. Quantum Spark 1530 / 1550 Appliance R80.20.XX Getting Started Guide | 21... -
Page 22: Security Management Server Connection
Security Management Server. If you enter an IP address, it will override the automatic mechanism that determines the routable IP address of the Security Management Server for each appliance. Quantum Spark 1530 / 1550 Appliance R80.20.XX Getting Started Guide | 22... -
Page 23: Internet Connection
- Dynamic Host Configuration Protocol (DHCP) automatically issues IP addresses within a specified range to devices on a network. This is a common option when you connect through a cable modem. Quantum Spark 1530 / 1550 Appliance R80.20.XX Getting Started Guide | 23... - Page 24 We recommend that you configure the DNS as the appliance needs to perform DNS resolving for different functions. For example, to connect to Check Point User Center during license activation or when Application Control, Web Filtering, Anti-Virus, or Anti-Spam services are enabled.
-
Page 25: Local Network
LAN1 port. Otherwise, connectivity will be lost when you click Next Wireless Network For WiFi models only: In the Wireless Network page, configure wireless connectivity details. Quantum Spark 1530 / 1550 Appliance R80.20.XX Getting Started Guide | 25... -
Page 26: Administrator Access
2.4GHz: 2414-2462 MHz 5GHz: 5180-5240, 5260-5320, 5500-5720, 5745- 5825MHz Administrator Access In the Administrator Access page, configure if administrators can use the appliance from a specified IP address or any IP address. Quantum Spark 1530 / 1550 Appliance R80.20.XX Getting Started Guide | 26... - Page 27 2. In the IP Address Configuration window, select an option: Specific IP address IP address Get IP from my computer - Enter the or click Specific network - Enter the Network IP address and Subnet mask 3. Click Apply Quantum Spark 1530 / 1550 Appliance R80.20.XX Getting Started Guide | 27...
-
Page 28: Appliance Registration
If there is a proxy between your appliance and the Internet, you must configure the proxy details before you can activate your license. To configure the proxy details: 1. Click Set proxy 2. Select Use proxy server Address Port and enter the proxy server Quantum Spark 1530 / 1550 Appliance R80.20.XX Getting Started Guide | 28... - Page 29 First name Last Name Email . You must enter this a second time to confirm. Company - This is the Account Name to which the appliance is paired. 4. Click Next Quantum Spark 1530 / 1550 Appliance R80.20.XX Getting Started Guide | 29...
-
Page 30: Security Management Server Authentication
WebUI application. Software Blade Activation Select the Software Blades to activate on this appliance. QoS (bandwidth control) can only be activated from the WebUI after completing the First Time Configuration Wizard. Quantum Spark 1530 / 1550 Appliance R80.20.XX Getting Started Guide | 30... -
Page 31: Summary
First Time Configuration Wizard. Home System The WebUI opens on the > page. To back up the system configuration in the WebUI: Device System Operations Backup Go to > > Quantum Spark 1530 / 1550 Appliance R80.20.XX Getting Started Guide | 31... -
Page 32: Zero Touch Cloud Service
Retries mechanism: During cloud activation, there are sometimes temporary issues which prevent the gateway from activating "Front Panel" on page 12 Cloud Services. See the Management LED description in the section. Quantum Spark 1530 / 1550 Appliance R80.20.XX Getting Started Guide | 32... - Page 33 An appliance that already has an existing configuration. The appliance starts, automatically mounts the USB drive, and searches the root directory for a configuration file. Note - The USB drive must be formatted in FAT32. Quantum Spark 1530 / 1550 Appliance R80.20.XX Getting Started Guide | 33...
- Page 34 Avoid short-circuiting the lithium battery; this can cause it to superheat and cause burns if touched. Do not operate the processor without a thermal solution. Damage to the processor can occur in seconds. Quantum Spark 1530 / 1550 Appliance R80.20.XX Getting Started Guide | 34...
- Page 35 1530 / 1550 Wired, 1530 / 1550 WiFi Appliance Date First Applied: August 2019 Declares under our sole responsibility, that the products conform to the following Product Specifications: RF/Wi-Fi (*marked model) Quantum Spark 1530 / 1550 Appliance R80.20.XX Getting Started Guide | 35...
- Page 36 No 9 Harrison Road, Harrison Industrial Building, #05-01 Issued By: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Ling Kou Laboratories No. 47-2, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan Address: Quantum Spark 1530 / 1550 Appliance R80.20.XX Getting Started Guide | 36...
- Page 37 WiFi products marketed in the US must be fixed to US operation channels only. If trouble is experienced with this Gateway, for repair or warranty information, please contact: Check Point 6330 Commerce Drive Suite 120, Irving, Texas 75063 Office Phone Numbers 972-444-6612 Quantum Spark 1530 / 1550 Appliance R80.20.XX Getting Started Guide | 37...
- Page 38 The termination on an interface may consist of any combination of devices subject only to the requirement that the sum of the Ringer Equivalence Numbers of all the devices does not exceed five. Japan Class A Compliance Statement Quantum Spark 1530 / 1550 Appliance R80.20.XX Getting Started Guide | 38...
- Page 39 For more information about where you can drop off your waste equipment for recycling, please contact your local city office or your household waste disposal service. Quantum Spark 1530 / 1550 Appliance R80.20.XX Getting Started Guide | 39...
- Page 40 L'adaptateur secteur fourni avec l'appareil Un adaptateur secteur de remplacement, fourni par Check Point Un adaptateur secteur acheté en tant qu'accessoire auprès de Check Point Pour éviter d'endommager tout système, il est important de manipuler les éléments avec soin. Ces mesures sont généralement suffisantes pour protéger votre équipement contre les décharges d'électricité...
- Page 41 1530 / 1550 Wired, 1530 / 1550 WiFi Appliance Date de demande initiale: Aout 2019 Déclare sous son entière responsabilité que les produits sont conformes aux normes produit suivantes: RF/Wi-Fi (modèle signalé par *) Quantum Spark 1530 / 1550 Appliance R80.20.XX Getting Started Guide | 41...
- Page 42 Délivré par: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Ling Kou Laboratories Adresse du No. 47-2, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan laboratoire: Quantum Spark 1530 / 1550 Appliance R80.20.XX Getting Started Guide | 42...
- Page 43 États-Unis. Selon la règlementation FCC tous les produits WIFI commercialisés aux Etats-Unis sont fixés uniquement sur des canaux américains. Déclaration de conformité du département Canadien Quantum Spark 1530 / 1550 Appliance R80.20.XX Getting Started Guide | 43...
- Page 44 La terminaison d'une interface peut consister en une combinaison quelconque de dispositifs, à la seule condition que la somme d'indices d'équivalence de la sonnerie de tous les dispositifs n'excède pas 5. Quantum Spark 1530 / 1550 Appliance R80.20.XX Getting Started Guide | 44...
- Page 45 Pour obtenir plus d'informations sur les lieux où déposer vos équipements mis au rebut, veuillez contacter votre municipalité ou le service de gestion des déchets. Quantum Spark 1530 / 1550 Appliance R80.20.XX Getting Started Guide | 45...
- Page 46 When you contact support, you must provide your MAC address. Check Point Support Center For more technical information, go to: To learn more about the Check Point Internet Security Product Suite and other security solutions, go to: https://www.checkpoint.com Quantum Spark 1530 / 1550 Appliance R80.20.XX Getting Started Guide | 46...
