  • Page 1 3 September 2018 CHECK POINT 910 APPLIANCE LOCALLY MANAGED Getting Started Guide...
  • Page 2 Check Point. While every precaution has been taken in the preparation of this book, Check Point assumes no responsibility for errors or omissions. This publication and features described herein are subject to change without notice.

  • Page 3: Important Information

    To learn more, visit the Check Point Support Center http://supportcenter.checkpoint.com. Feedback Check Point is engaged in a continuous effort to improve its documentation. Please help us by sending your comments mailto:cp_techpub_feedback@checkpoint.com?subject=Feedback on Check Point 910 Appliance Locally Managed Getting Started Guide.

  • Page 4: Table Of Contents

    Contents Important Information ...................... 3 Introduction ........................5 Shipping Carton Contents ....................5 Setting up the Appliance ....................6 Connecting the Cables ...................... 6 Appliance Diagrams and Specifications ................7 Front Panel........................7 Back Panel ........................10 Using the First Time Configuration Wizard ..............11 Starting the First Time Configuration Wizard ............

  • Page 5: Introduction

    Check Point also delivers worldwide technical services including educational, professional, and support services through a network of Authorized Training Centers, Certified Support Partners, and Check Point technical support personnel to ensure that you get the most out of your security investment.

  • Page 6: Setting Up The Appliance

    Setting up the Appliance Setting up the Appliance 1. Remove the Check Point 910 Appliance from the shipping carton and place it on a tabletop. 2. Identity the network interface marked as LAN1. This interface is preconfigured with the IP address 192.168.1.1.

  • Page 7: Appliance Diagrams And Specifications

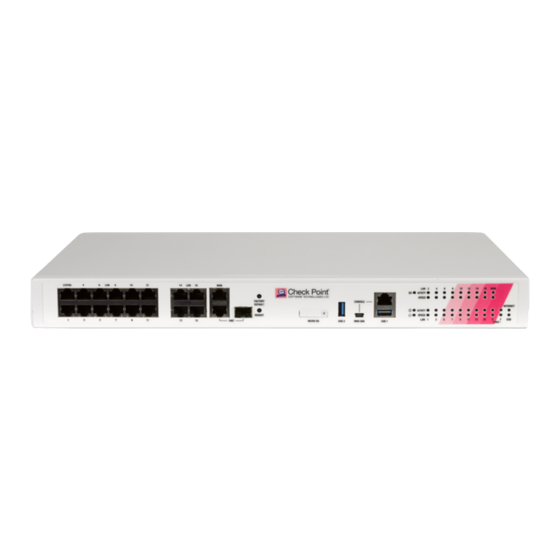

    Appliance Diagrams and Specifications In This Section: Front Panel ......................Back Panel ......................The Check Point 910 Appliance is a wired model. This section describes the front and back panels. Front Panel Front Panel - All Item Description Ear mount bracket Use to mount the appliance to a rack.
  • Page 8 Restore the appliance to its factory defaults. Reboot button Forcibly reboot the appliance. DMZ ports Ethernet ports: • Left - RJ45 • Right - SFP (1GbE) LAN1 - 16 ports RJ45 Ethernet ports. Check Point 910 Appliance Getting Started Guide Locally Managed...
  • Page 9 Blinking green when a USB device is connected. • Green when the appliance is turned on. Power LED • Red when there is a boot error or the appliance is in maintenance mode. Check Point 910 Appliance Getting Started Guide Locally Managed...

  • Page 10: Back Panel

    Contains switch, plug outlet, and fan. Back Panel - Left Item Description Socket Plug the cable in here. AC input voltage and current: 100-240V ~ 50-60 Hz 1.7A. Switch On/off switch System fan Check Point 910 Appliance Getting Started Guide Locally Managed...

  • Page 11: Using The First Time Configuration Wizard

    Starting the First Time Configuration Wizard To configure the Check Point 910 Appliance for the first time after you complete the hardware setup, use the First Time Configuration Wizard. If you do not complete the wizard because of one of these conditions, the wizard will run again the next time you connect to the appliance: •...

  • Page 12: Welcome

    You can connect to the Zero Touch server to fetch settings automatically from the cloud. To change the language of the WebUI application: Select the language link at the top of the page. Note that only English is allowed as the input language. Check Point 910 Appliance Getting Started Guide Locally Managed...
  • Page 13 When you reconnect to the WebUI or click Refresh, the browser opens to show the status of the installation process. After the gateway downloads and successfully applies the settings, it does not connect to the Zero Touch server again. Check Point 910 Appliance Getting Started Guide Locally Managed...

  • Page 14: Authentication Details

    Using the First Time Configuration Wizard Authentication Details In the Authentication Details page, enter the required details to log in to the Check Point 910 Appliance WebUI application or if the wizard terminates abnormally: • Administrator Name - We recommend that you change the default "admin" login name of the administrator.

  • Page 15: Appliance Date And Time Settings

    Primary NTP server - The IP or host name of the primary NTP server. The default server is ntp.checkpoint.com • Secondary NTP server - The IP or host name of the secondary NTP server. The default server is ntp2.checkpoint.com Check Point 910 Appliance Getting Started Guide Locally Managed...

  • Page 16: Appliance Name

    When the gateway performs DNS resolving for a specified object’s name, the domain name is appended to the object name. This lets hosts in the network look up hosts by their internal names. Check Point 910 Appliance Getting Started Guide Locally Managed...

  • Page 17: Internet Connection

    We recommend that you configure the DNS as the appliance needs to perform DNS resolving for different functions. For example, to connect to Check Point User Center during license activation or when Application Control, Web Filtering, Anti-Virus, or Anti-Spam services are enabled.

  • Page 18: Local Network

    DHCP server and range fields - DHCP is enabled by default with a default network range. Make sure to set the appropriate range and do not include predefined static IPs in your network. Check Point 910 Appliance Getting Started Guide Locally Managed...
  • Page 19 Important - If you choose to disable the switch on LAN ports (clear the checkbox), make sure your network cable is placed in the LAN1 port. Otherwise, connectivity will be lost when you click Next. Check Point 910 Appliance Getting Started Guide Locally Managed...

  • Page 20: Administrator Access

    • Specific IP address - Enter the IP address or click Get IP from my computer. • Specific network - Enter the Network IP address and Subnet mask. 3. Click Apply. Check Point 910 Appliance Getting Started Guide Locally Managed...
  • Page 21 Using the First Time Configuration Wizard Check Point 910 Appliance Getting Started Guide Locally Managed...

  • Page 22: Appliance Registration

    Using the First Time Configuration Wizard Appliance Registration The appliance can connect to the Check Point User Center with its credentials to pull the license information and activate the appliance. If you have Internet connectivity configured: • Click Activate License.
  • Page 23 The License activation was not complete notification message is shown. 2. Click OK. The appliance uses a 30-day trial license for all blades. You can register the appliance later from the WebUI Device > License page. Check Point 910 Appliance Getting Started Guide Locally Managed...

  • Page 24: Software Blade Activation

    Using the First Time Configuration Wizard Software Blade Activation Select the software blades to activate on this appliance. QoS (bandwidth control) can only be activated from the WebUI after completing the First Time Configuration Wizard. Check Point 910 Appliance Getting Started Guide Locally Managed...

  • Page 25: Summary

    Click Finish to complete the First Time Configuration Wizard. The WebUI opens on the Home > System page. To back up the system configuration in the WebUI: Go to Device > System Operations > Backup. Check Point 910 Appliance Getting Started Guide Locally Managed...

  • Page 26: Health And Safety Information

    Connection instructions: 1. Connect the power cable to an AC DC power source. 2. Turn the switch on the back panel to the on position. Check Point 910 Appliance Getting Started Guide Locally Managed...
  • Page 27 Drinking Water and Toxic Enforcement Act of 1986, California Health & Safety Code s. 25249.5, et seq. ("Proposition 65"), that is "known to the State to cause cancer or reproductive toxicity." See http://www.calepa.ca.gov. Check Point 910 Appliance Getting Started Guide Locally Managed...
  • Page 28 EN 61000-4-2:2009 EN 61000-4-3:2006+A1:2008+A2:2010 EN 61000-4-4:2012 EN 61000-4-5:2014 EN 61000-4-6:2014+AC:2015 EN 61000-4-8:2010 EN 61000-4-11:2004 AS/NZS Information Technology Equipment - Radio Disturbance Characteristics AS/NZS CISPR 32:2015, Class A AS/NZS CISPR 32:2013, Class A Check Point 910 Appliance Getting Started Guide Locally Managed...
  • Page 29 Directive (EC) No 1907/2006 (with exempt Registration Evaluation Authorization from registration) and Restriction of Chemical Substances WEEE Directive 2012/19/EU Waste Electrical and Electronic Equipment Date and Place of Issue: July 2018, Tel Aviv, Israel Check Point 910 Appliance Getting Started Guide Locally Managed...
  • Page 30 This Class A digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Canada. Check Point 910 Appliance Getting Started Guide Locally Managed...
  • Page 31 For more information about where you can drop off your waste equipment for recycling, please contact your local city office or your household waste disposal service. Check Point 910 Appliance Getting Started Guide Locally Managed...

  • Page 32: Health And Safety Information

    10 minutes. Le fait d'ouvrir le système alors qu'il est sous tension pourrait occasionner des dommages permanents au système ainsi que des blessures graves ou fatales. Check Point 910 Appliance Getting Started Guide Locally Managed...
  • Page 33 California Safe Drinking Water and Toxic Enforcement Act of 1986 du California Health & Safety Code s. 25249.5, et seq. (« Proposition 65 »), « connus par l'État comme provoquant le cancer ou ayant des effets nocifs sur la reproduction » (voir http://www.calepa.ca.gov). Voir http://www.calepa.ca.gov. Check Point 910 Appliance Getting Started Guide Locally Managed...
  • Page 34 Health and Safety Information Déclaration de conformité Nom et adresse de la Marque autorisée Check Point Software Technologies Ltd. 5 Ha'Solelim Street, Tel Aviv 67897, Israël Nom de la marque : Check Point Modèles marketing : SG 910 Modèles réglementés :...
  • Page 35 Directive (CE) N° 1907/2006 (dispensé Enregistrement, évaluation, d'enregistrement) autorisation et restriction des substances chimiques WEEE Directive 2012/19/UE Déchets d'équipements électriques et électroniques Date et lieu d'émission : Juillet 2018, Tel Aviv, Israël Check Point 910 Appliance Getting Started Guide Locally Managed...
  • Page 36 2. L'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Canada. Check Point 910 Appliance Getting Started Guide Locally Managed...
  • Page 37 Pour obtenir plus d'informations sur les lieux où déposer vos équipements mis au rebut, veuillez contacter votre municipalité ou le service de gestion des déchets. Check Point 910 Appliance Getting Started Guide Locally Managed...

  • Page 38: Support

    Support Support For technical assistance, contact Check Point 24 hours a day, seven days a week at: • +1 972-444-6600 (Americas) • +972 3-611-5100 (International) When you contact support, you must provide your MAC address. For more technical information, go to: http://supportcenter.checkpoint.com...
