Appendix A: Software Demo Utility for I/O Ports of Function Control

2. System 2

Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved.

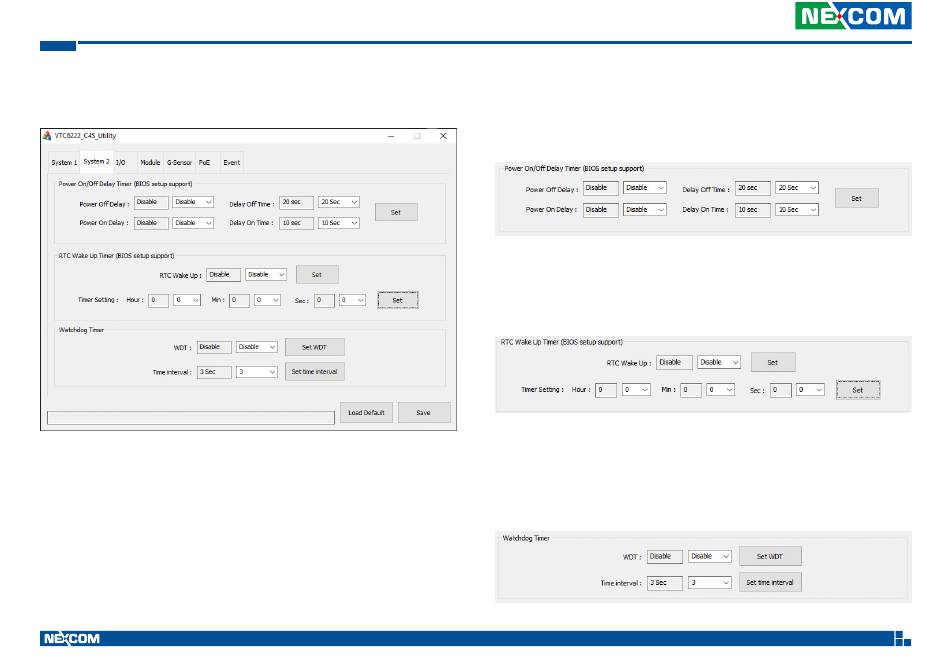

2.1 Power On/Off Delay Timer
Configures the power on/off delay timer. Click the Set button after
configuration to apply the settings.
2.2 RTC Wake Up Timer
Enables or disables the Alarm Wake Up function. Once this function is
enabled, the Alarm Timer can be configured.
2.3 Watchdog Timer
Enables or disables the Watchdog Timer function. There are several selections
of time. The timer of Watchdog Timer can also be cleared by the Set WDT
button.
