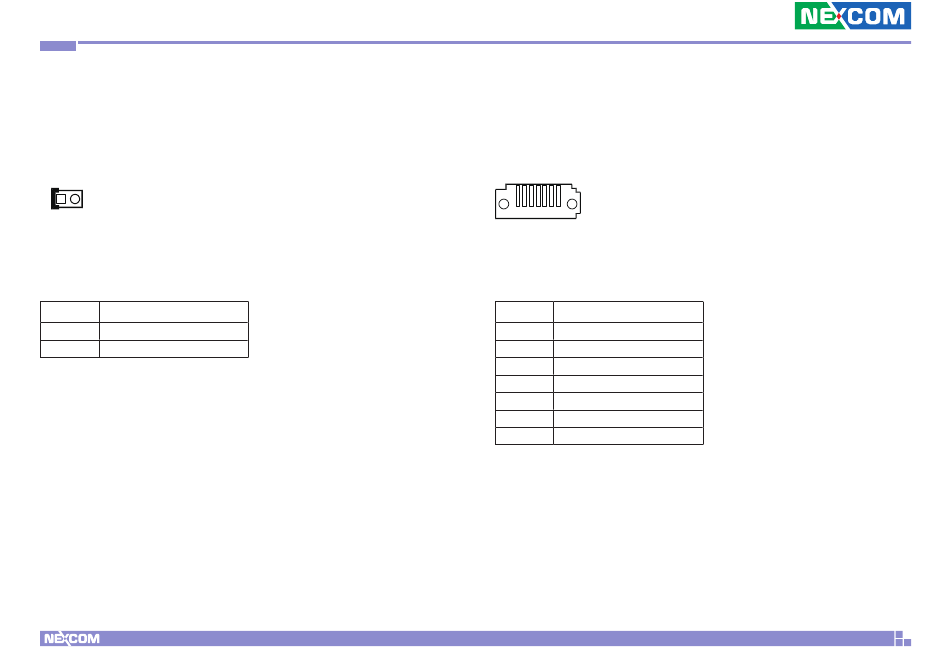

Chapter 2: Jumpers and Connectors

System Reset Connector

Connector type: 1x 2-pin header, 2.0mm pitch
Connector location: RESET_BTN
1
2
Pin
Definition
1
GND
2
RESET#
Copyright © 2023 NEXCOM International Co., Ltd. All Rights Reserved.

SATA Connector

Connector type: 1x 7P, 1.27mm
Connector location: SATA1
1
7
Pin
Definition
1
GND
2
SATA_TXP
3
SATA_TXN
4
GND
5
SATA_RXN
6
SATA_RXP
7
GND
22
Neu-X102 User Manual
