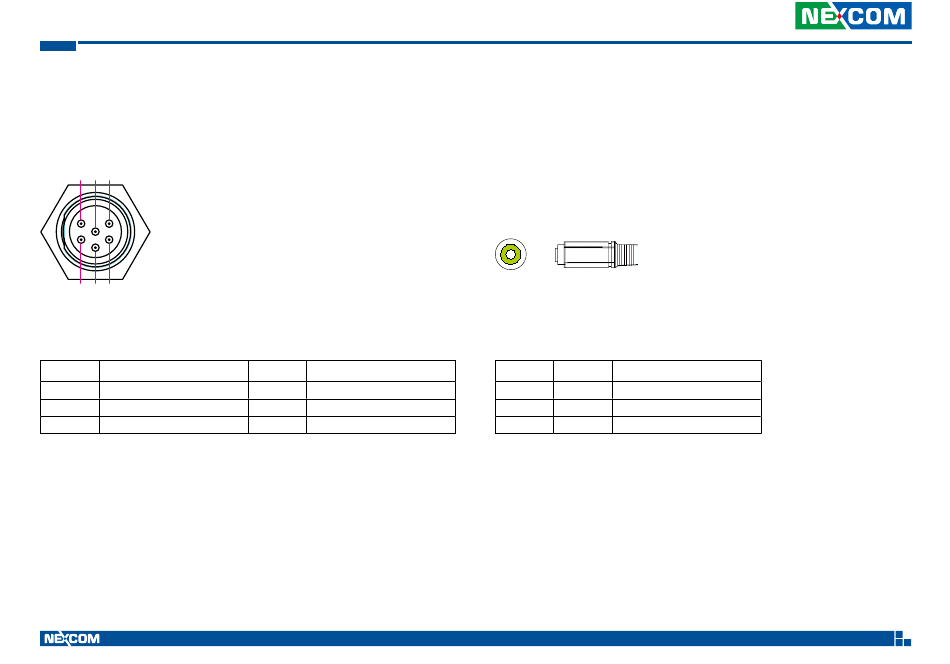

Appendix E: Pin Definition for the Multi Port Cable
P2 Connector Pinout
1
6
5
2 3 4
Pin
Definition
1
FRONT_L
3
FRONT_R
5
MIC_JD
Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved.
Pin
Definition
2
FRONT_JD
4
MIC_L
6
AGND
P1 and P3 Connector Pinouts
Green (Line-out) Connector
Connector location: P1
P2 Pin
P1 Pin
1
L
2
G
3
R
71
Definition
FRONT_L
FRONT_JD
FRONT_R
VTC 6222 and nROK 6222 User Manual
