Installing expansion slots on the top and bottom side of VTC 7260 M/B

Prior to removing the chassis cover, make sure the unit's
CAUTION! CAUTION!
CAUTION!
power is off and disconnected from the power sources to
prevent electric shock or system damage.

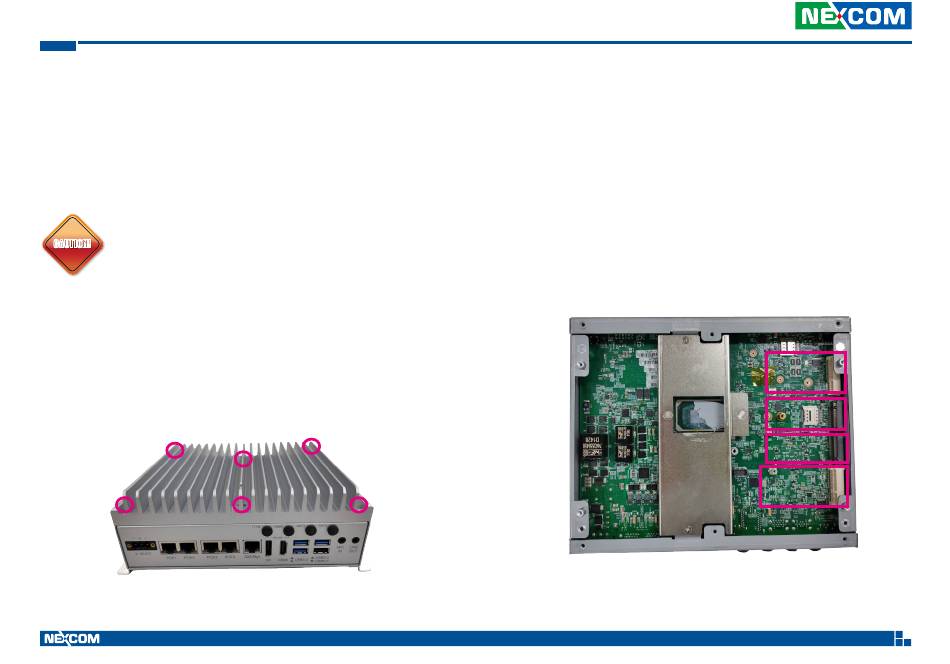

1. To install the expansion slots on the top side of VTC 7260 M/B.
•
Open the top case by losing the 6 screws as shown below.
Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved.
s
etuP
39
•
The user can find 4 expansion slots, marked with A, B, C and D on the
M/B after removing the top case.
D
C
B
A
