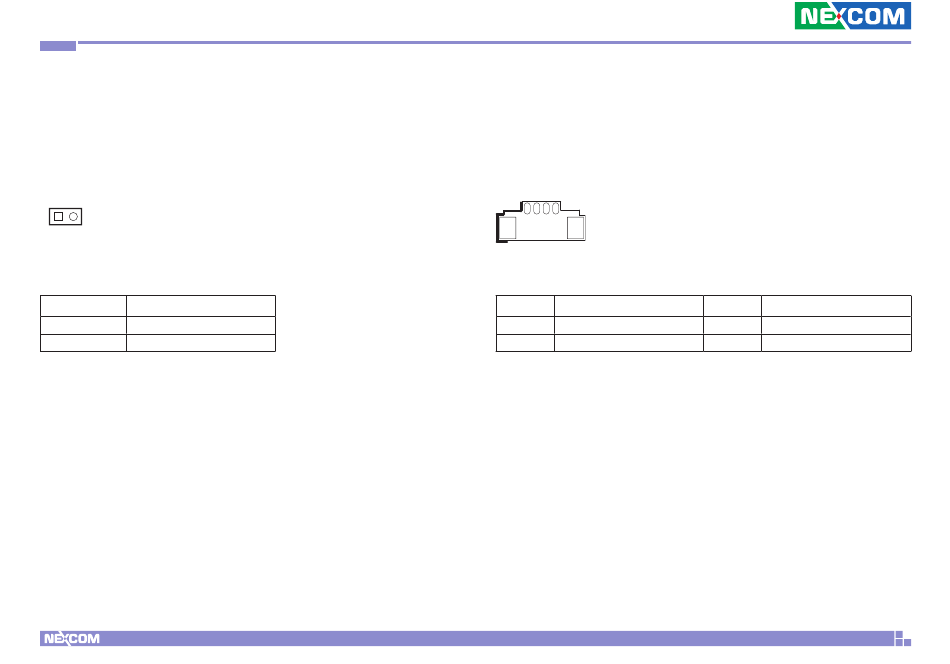

Chapter 2: Jumpers and Connectors
System Power Button
Connector type: 1x2 2-pin header
Connector location: J2
1
2
Pin
Settings
1
GND
2
PWRBTN#
Copyright © 2024 NEXCOM International Co., Ltd. All Rights Reserved.
Fan Connector
Connector type: 1x4 4-pin header, 1.25mm pitch
Connector location: FAN1
1
4
Pin
Definition
1
GND
3
FAN SPEED DETECT
12
Pin
Definition
2
+12V
4
FAN SPEED CONTROL
XPPC 24-200A User Manual
