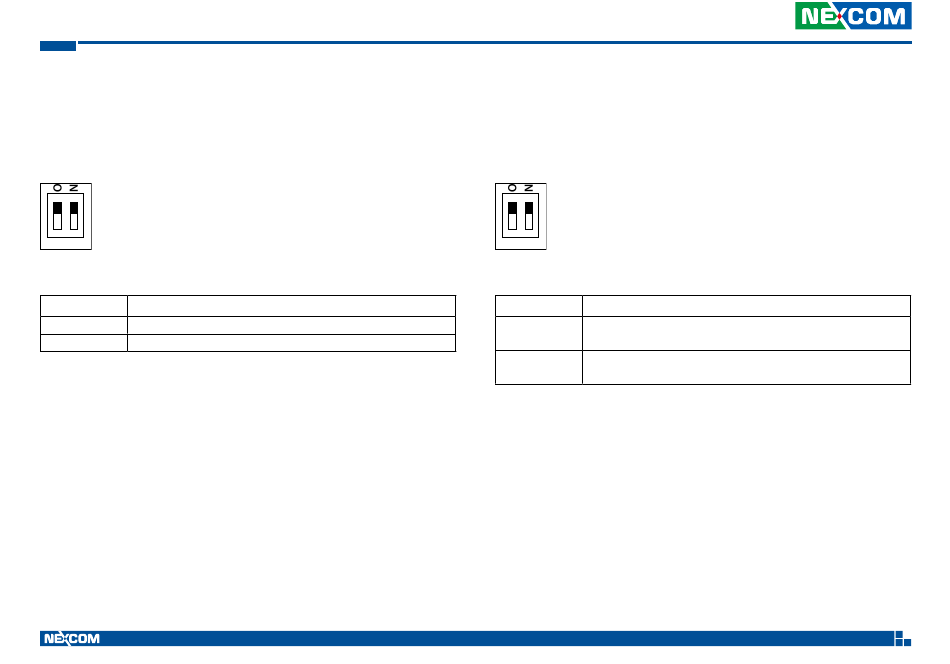

Chapter 3: Jumpers and Connectors
CAN Terminator Resistor Selection Switch
Connector type: 2-pin DIP switch
Connector location: SW3
1 2
Pin
1 ON, 2 ON
CAN Terminator Resistor (Default)
1 OFF, 2 OFF
CAN No Terminator Resistor
Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved.
Definition
RTC Clear CMOS
Connector type: 2-pin DIP switch
Connector location: SW4
1 2
Pin
1 OFF, 2 OFF
1 ON, 2 ON
30
Definition
RTC Normal (Default)
ME Normal (Default)
RTC Clear CMOS
ME Clear
VTC 6222 and nROK 6222 User Manual
