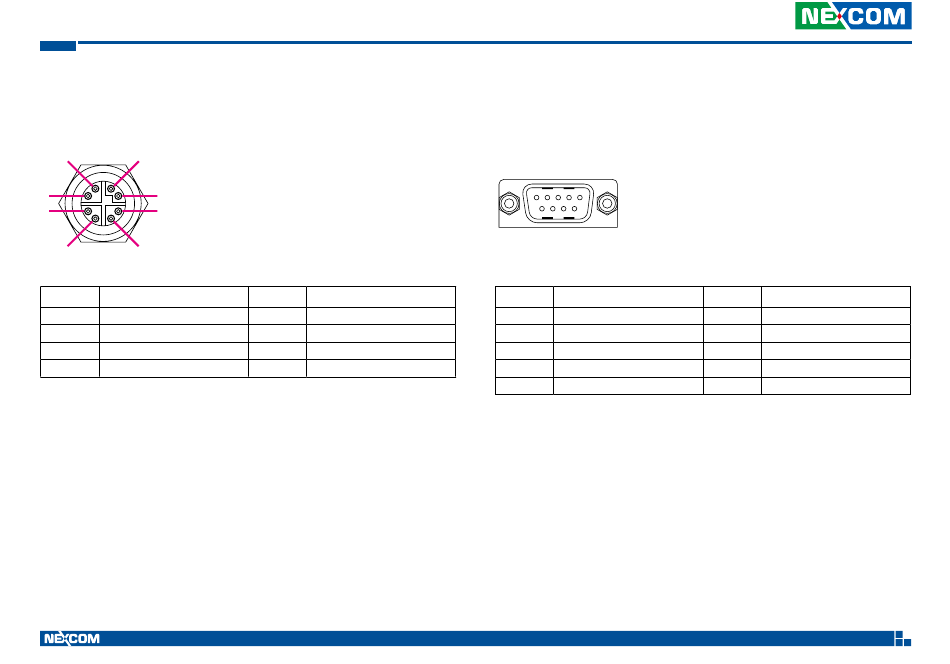

Chapter 2: External Connectors Pinout Description
M12 PoE LAN Connectors (nROK 6222)
Connector Number: 13
8
1
7
2
6
3
5
4
Pin
Definition
1
POE_LAN(4-1)_MDI0P
3
POE_LAN(4-1)_MDI1P
5
POE_LAN(4-1)_MDI2P
7
POE_LAN(4-1)_MDI3P
Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved.
Pin
Definition
2
POE_LAN(4-1)_MDI0N
4
POE_LAN(4-1)_MDI1N
6
POE_LAN(4-1)_MDI2N
8
POE_LAN(4-1)_MDI3N
COM Port
Connector Number: 14
1
5
1
5
6
9
6
9
Pin
Definition
1
DCD
3
TX
5
GND
7
RTS
9
RI
19
Pin
Definition
2
RX
4
DTR
6
DSR
8
CTS
VTC 6222 and nROK 6222 User Manual
