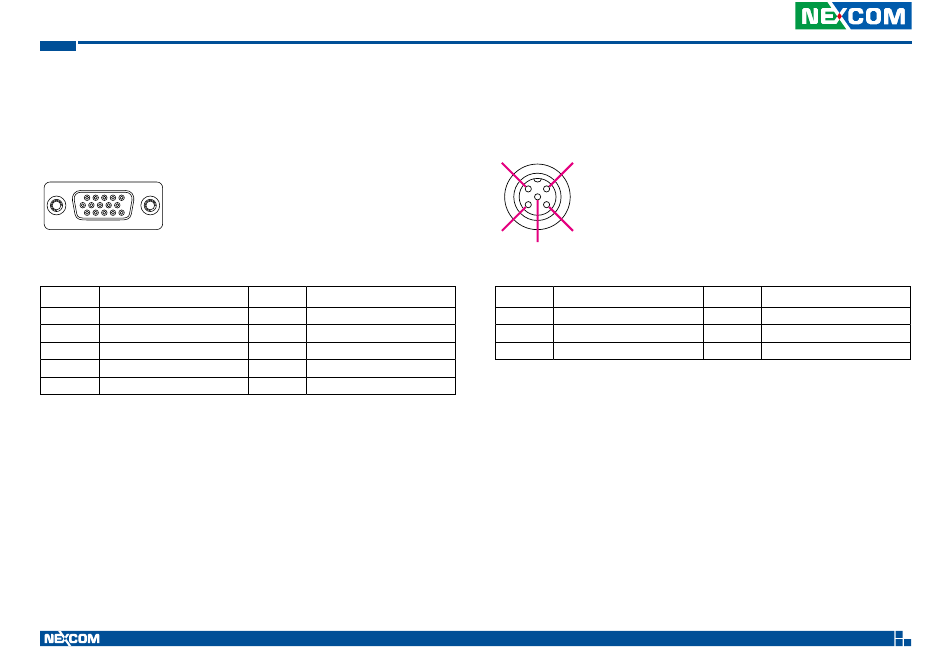

Chapter 2: External Connectors Pinout Description
DIO
Connector Number: 17
1
5
1
5
1 1
1 5
11
15
Pin
Definition
1
GPI 1
3
GPI 3
5
GPO 1
7
GPO 3
9
VIN-GPIO
Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved.
Pin
Definition
2
GPI 2
4
GPI 4
6
GPO 2
8
GPO 4
10
GND
DC Input (nROK 6222)
Connector Number: 18
2
1
3
4
5
Pin
Definition
1
VIN
3
GND
5
IGNITION
21
Pin
Definition
2
VIN
4
GND
VTC 6222 and nROK 6222 User Manual
