NEXCOM International Co., Ltd.
Industrial Computing Solutions
Fanless Computer

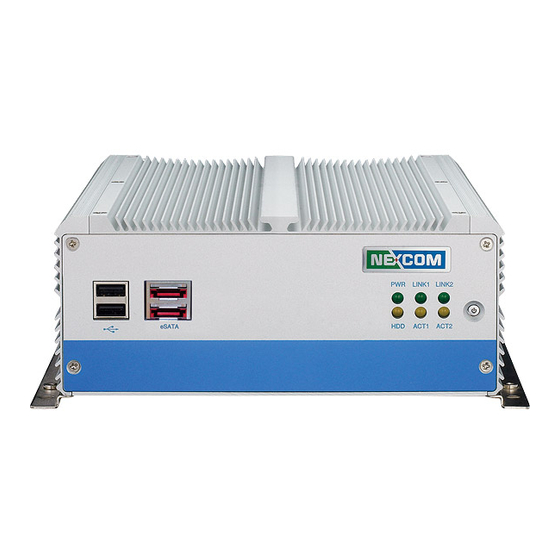

NISE 3500, NISE 3500M Series

User Manual

NEXCOM International Co., Ltd.
Published December 2011
www.nexcom.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NISE 3500Series and is the answer not in the manual?

Questions and answers

Related Manuals for Nexcom NISE 3500Series

Summary of Contents for Nexcom NISE 3500Series

  • Page 1: User Manual

    NEXCOM International Co., Ltd. Industrial Computing Solutions Fanless Computer NISE 3500, NISE 3500M Series User Manual NEXCOM International Co., Ltd. www.nexcom.com Published December 2011...

  • Page 2: Table Of Contents

    Getting to Know NISE 3500 Series ............5 PS/2 Keyboard/Mouse Port ............17 Front Panel of NISE 3500 ..............5 9V-30V DC Input .................18 Front Panel of NISE 3500M ..............5 GPIO Connector ................18 Copyright © 2011 NEXCOM International Co., Ltd. All Rights Reserved. NISE 3500, NISE 3500M User Manual...
  • Page 3 Appendix F: External Anti-vibration Kit....Installing a DIMM ..................36 Appendix G: NISE3500iP2 Series with Isolated DC Installing the CPU .................38 Input Design........Installing a SATA Hard Drive ..............41 Copyright © 2011 NEXCOM International Co., Ltd. All Rights Reserved. NISE 3500, NISE 3500M User Manual...

  • Page 4: Preface

    NEXCOM shall not be liable for direct, indirect, special, incidental, or interference to radio communications. Operation of this equipment in a...

  • Page 5: Rohs Compliance

    < 0.1% or 1,000ppm, and Polybrominated diphenyl Ethers (PBDE) < 0.1% or 1,000ppm. In order to meet the RoHS compliant directives, NEXCOM has established an engineering and manufacturing task force in to implement the intro- duction of green products. The task force will ensure that we follow the...

  • Page 6: Warranty And Rma

    ? Replace with 3rd party products if needed. the RMA number apply process. ? If RMA goods can not be repaired, NEXCOM will return it to the cus- tomer without any charge. ? Customers can send back the faulty products with or without acces- sories (manuals, cable, etc.) and any components from the card, such as...

  • Page 7: Safety Information

    There is a danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufactur- er. Discard used batteries according to the manufacturer’s instructions. Copyright © 2011 NEXCOM International Co., Ltd. All Rights Reserved. NISE 3500, NISE 3500M User Manual...

  • Page 8: Safety Precautions

    11. All cautions and warnings on the equipment should be noted. 19. The computer is provided with CD drives that comply with the ap- propriate safety standards including IEC 60825. viii Copyright © 2011 NEXCOM International Co., Ltd. All Rights Reserved. NISE 3500, NISE 3500M User Manual...

  • Page 9: Technical Support And Assistance

    Technical Support and Assistance Conventions Used in this Manual Warning: Information about certain situations, which if not 1. For the most updated information of NEXCOM products, visit NEX- observed, can cause personal injury. This will prevent injury to COM’s website at www.nexcom.com.

  • Page 10: Global Service Contact Information

    Tel: +44-1908-267121 78420 Carrières sur Seine, France Fax: +44-1908-262042 Tel: +33 (0)1 71 51 10 20 http://www.nexcom.eu Fax: +33 (0)1 71 51 10 21 http://www.nexcom.eu Copyright © 2011 NEXCOM International Co., Ltd. All Rights Reserved. NISE 3500, NISE 3500M User Manual...
  • Page 11 China-Shenzhen Office Western Room 708, Block 210, Tairan Industry & Trading Place, Futian Area, Shenzhen, China 518040 TEL: +86-755-833 27203 FAX: +86-755-833 27213 http://www.nexcom.cn Copyright © 2011 NEXCOM International Co., Ltd. All Rights Reserved. NISE 3500, NISE 3500M User Manual...

  • Page 12: Package Contents

    NISB3500 Quick Reference Guide VER:A 50311P0001X00 Plastic Screw for PCI card use 60233MK202X00 PS/2 Y Cable for Keyboard / Mouse, L:150mm 50322P0001X00 Plastic Nut for PCI card use Copyright © 2011 NEXCOM International Co., Ltd. All Rights Reserved. NISE 3500, NISE 3500M User Manual...

  • Page 13: Ordering Information

    ™ - 1 x PCI expansion slot, 1 x PCIe expansion slot • 19V, 120W AC/DC Power Adapter w/o power cord (P/N: 7410120002X00) xiii Copyright © 2011 NEXCOM International Co., Ltd. All Rights Reserved. NISE 3500, NISE 3500M User Manual...

  • Page 14: Chapter 1: Product Introduction

    • Dual VGA or VGA/DVI Independent Display • Supports ATX power mode and PXE/WOL • 3x RS232 and 1x RS232/422/485 with Auto Flow Control Copyright © 2011 NEXCOM International Co., Ltd. All Rights Reserved. NISE 3500, NISE 3500M User Manual...

  • Page 15: Nise 3500M

    • Dual VGA or VGA/DVI or DVI/HDMI Independent • Supports ATX power mode and PXE/WOL Display • 3x RS232 and 1x RS232/422/485 with Auto Flow Control Copyright © 2011 NEXCOM International Co., Ltd. All Rights Reserved. NISE 3500, NISE 3500M User Manual...

  • Page 16: Hardware Specifications

    • 2 x eSATA ports • Max. Supported Add-on Card Length: 169mm • 3 x IEEE1394b ports (NISE 3500M only) • 1 x HDMI port (NISE 3500M only) Copyright © 2011 NEXCOM International Co., Ltd. All Rights Reserved. NISE 3500, NISE 3500M User Manual...
  • Page 17 (According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14) • Storage temperature: -20°C to 80°C • Relative humidity: 10% to 93% (Non-Condensing) Certifications • CE approval • FCC Class A Copyright © 2011 NEXCOM International Co., Ltd. All Rights Reserved. NISE 3500, NISE 3500M User Manual...

  • Page 18: Getting To Know Nise 3500 Series

    Indicate the status of the LAN ports. HDMI Power On/Off Switch Used to connect devices that support HDMI. Press to power-on or power-off the system. Copyright © 2011 NEXCOM International Co., Ltd. All Rights Reserved. NISE 3500, NISE 3500M User Manual...

  • Page 19: Rear Panel Of Nise 3500/3500M

    The GPIO connector supports 4 digital input and 4 digital output. COM1 to COM4 The DB44 port supports 3 RS232 and 1 RS232/422/485 compatible serial devices. Copyright © 2011 NEXCOM International Co., Ltd. All Rights Reserved. NISE 3500, NISE 3500M User Manual...

  • Page 20: Mechanical Dimensions

    Chapter 1: Product Introduction Mechanical Dimensions NISE 3500/3500M 195.00 207.00 219.00 Copyright © 2011 NEXCOM International Co., Ltd. All Rights Reserved. NISE 3500, NISE 3500M User Manual...

  • Page 21: Chapter 2: Jumpers And Connectors

    Ground yourself before touching any internal components, by touching a metal object. Static electricity can damage many of the elec- • Use correct screws and do not over tighten screws. Copyright © 2011 NEXCOM International Co., Ltd. All Rights Reserved. NISE 3500, NISE 3500M User Manual...

  • Page 22: Jumper Settings

    (on) and open (off). Two-Pin Jumpers: Open (Left) and Short (Right) Three-Pin Jumpers: Pins 1 and 2 Are Short Copyright © 2011 NEXCOM International Co., Ltd. All Rights Reserved. NISE 3500, NISE 3500M User Manual...

  • Page 23: Locations Of The Jumpers And Connectors

    The figure below is the top view of the NISB 3500 main board which is the main board used in the NISE 3500 Series system. It shows the locations of the jumpers and connectors. CON1 LED1 LED2 LED3 BAT1 CON2 DIMM1 CN10 DIMM2 CN11 Copyright © 2011 NEXCOM International Co., Ltd. All Rights Reserved. NISE 3500, NISE 3500M User Manual...
  • Page 24 The figure below is the bottom view of the NISB 3500 main board. CN16 CN17 CN12 CN15 CN13 CN14 Copyright © 2011 NEXCOM International Co., Ltd. All Rights Reserved. NISE 3500, NISE 3500M User Manual...

  • Page 25: Jumpers

    Connector size: 1x3 3-pin header, 2.54 mm pitch Connector location: JP4 Settings 1-2 On *Normal 2-3 On CMOS Clear 1-2 On: default Definition RTCRST#_PU RTCRST# CLR_CMOS Copyright © 2011 NEXCOM International Co., Ltd. All Rights Reserved. NISE 3500, NISE 3500M User Manual...

  • Page 26: Connectors Pin Definitions

    Connector type: eSATA port Connector location: CN10 Connector location: CON2A and CON2B Definition Definition SATA_RXN4 SATA_TXP4 SATA_RXP4 Definition Definition SATA_TXN4 USB1+ USB0- USB0+ USB1- Copyright © 2011 NEXCOM International Co., Ltd. All Rights Reserved. NISE 3500, NISE 3500M User Manual...

  • Page 27: Ieee1394B Connector (Nise 3500M Only)

    Connector location: J7, J10 and J11 Connector location: J6 Description Description TB2N TB2P Definition Definition TA2N TA2P HDMID_D2P 1394B_SG_2 HDMID_D2N HDMID_D1P +12V HDMID_D1N HDMID_D0P HDMID_D0N HDMID_LKP HDMID_LKN HDMID_CTL_CLK HDMID_CTL_SDA Copyright © 2011 NEXCOM International Co., Ltd. All Rights Reserved. NISE 3500, NISE 3500M User Manual...

  • Page 28: Status Indicators

    Status Indicators LAN1/LAN2 Link/Active LED Connector location: LED1 and LED2 LINK1 LINK2 ACT1 ACT2 Status LED Color Green Definition Yellow LAN2_LINK_N LAN2_ACT_N LAN2_LINK_P LAN2_ACT_P Copyright © 2011 NEXCOM International Co., Ltd. All Rights Reserved. NISE 3500, NISE 3500M User Manual...

  • Page 29: Atx Power On/Off Switch

    ATX Power On/Off Switch Connector location: SW1 Definition Blue light Red light Definition Definition PBT_PU PBT_PU PWRLED_N PWRLED_P Copyright © 2011 NEXCOM International Co., Ltd. All Rights Reserved. NISE 3500, NISE 3500M User Manual...

  • Page 30: External I/O Interface - Rear Panel

    Connector type: 2-pin switch PS/2 Keyboard/Mouse Port Connector location: J3 Connector type: PS/2, Mini-DIN-6, JST-2.0mm-M-180 Connector location: J5 Definition PBT_PU Definition Definition 5VSB KDAT KCLK MDAT MCLK Copyright © 2011 NEXCOM International Co., Ltd. All Rights Reserved. NISE 3500, NISE 3500M User Manual...

  • Page 31: 30V Dc Input

    Connector type: DB-15 port, 2x5 10-pin header, 2.0 mm-M-180 Connector location: JP2 Definition Definition Definition Definition VCC5 SIO_GPO24 SIO_GPI20 SIO_GPO25 SIO_GPI21 SIO_GPO26 SIO_GPI22 SIO_GPO27 SIO_GPI23 Copyright © 2011 NEXCOM International Co., Ltd. All Rights Reserved. NISE 3500, NISE 3500M User Manual...

  • Page 32: Serial Interface (Com 1 - Com 4)

    CN10_23 CN10_24 (included in the package) to connect the devices. CN10_26 CN10_27 CN10_28 CN10_29 CN10_31 CN10_32 CN10_33 CN10_34 CN10_36 COM port CN10_37 CN10_38 SP4_RI_TI Copyright © 2011 NEXCOM International Co., Ltd. All Rights Reserved. NISE 3500, NISE 3500M User Manual...
  • Page 33 COM3 (RS232) labelled “C“ on DB9 Cable Connector DB44 Pin # DB9 Pin # Def. DB44 Pin # DB9 Pin # Def. DCD3 RXD3 TXD3 DTR3 DSR3 RTS3 CTS3 Copyright © 2011 NEXCOM International Co., Ltd. All Rights Reserved. NISE 3500, NISE 3500M User Manual...

  • Page 34: Lan Ports

    Data Activity Green Linked Blinking Always Lighted No Acitivity No Link Definition Definition LAN1_M0P LAN1_M0N LAN1_M1P LAN1_M2P LAN1_M2N LAN1_M1N LAN1_M3P LAN1_M3N LAN1_LED1P LAN1_LED_ACT# LAN1_LED2P LAN1_LINK# Copyright © 2011 NEXCOM International Co., Ltd. All Rights Reserved. NISE 3500, NISE 3500M User Manual...

  • Page 35: Usb Ports

    Description Definition Definition RED_VGA GREEN_VGA BLUE_VGA USB1+ DVI_GND DVI_GND DVI_GND USB0- DVI_GND DVI_GND VGA_+5V USB0+ DVI_GND DVI_GND DATA_V HS_VGA VS_VGA CLK_V DVI_GND DVI_GND USB1- Copyright © 2011 NEXCOM International Co., Ltd. All Rights Reserved. NISE 3500, NISE 3500M User Manual...

  • Page 36: Dvi-I Port

    DVI_GND HDMI_CTL_CLK SPK_Out_L HDMI_CTL_SDA DC_VSYNC_VGA HDMI_DATA1_N HDMI_DATA1_P DVI_GND HDMIC_PWR_S DVI_GND HDMIC_HPDET HDMI_DATA0_N HDMI_DATA0_P DVI_GND DC_DATA_VGA DC_CLK_VGA HDMI_LKP HDMI_LKN DC_RED_VGA DC_GREEN_VGA DC_BLUE_VGA DC_HSYNC_VGA DVI_GND DVI_GND Copyright © 2011 NEXCOM International Co., Ltd. All Rights Reserved. NISE 3500, NISE 3500M User Manual...

  • Page 37: Mic-In Jack

    Mic-in Jack Connector size: 5-pin jack, 25.9x12.6x17.0mm Connector location: CN11A Definition AU_GND MIC_OUT-L AU_GND MIC_JD1 MIC_OUT-R Copyright © 2011 NEXCOM International Co., Ltd. All Rights Reserved. NISE 3500, NISE 3500M User Manual...

  • Page 38: Internal Connectors

    Reset Connector Connector type: 2x2 Aux power connector Connector type: 1x2 2-pin header, JST 2.5mm-M-90 Connector location: CON1 Connector location: J2 Definition RESET# Definition Copyright © 2011 NEXCOM International Co., Ltd. All Rights Reserved. NISE 3500, NISE 3500M User Manual...

  • Page 39: Smbus Data/Clk Pin Header

    Connector type: 1x3 3-pin header 2.54mm-M-180 Connector type: 1x3 3-pin header 2.54mm-M-180 Connector location: J8 Connector location: JP3 Definition Definition SMB_CLK VCC5 SMB_DATA PANEL1_VDD VCC3 *Default: 2-3 Copyright © 2011 NEXCOM International Co., Ltd. All Rights Reserved. NISE 3500, NISE 3500M User Manual...

  • Page 40: Lvds Channel A Connector

    GND_LVDS LA_DATAP1 GND_LVDS LB_DATAP1 LA_CLKP LA_DATAN1 LB_CLKP LB_DATAN1 LA_CLKN GND_LVDS LB_CLKN GND_LVDS GND_LVDS PANEL1_BACKLIGHT GND_LVDS PANEL1_BACKLIGHT LA_DATAP2 PANEL1_BACKLIGHT LB_DATAP2 PANEL1_BACKLIGHT LA_DATAN2 GND_LVDS LB_DATAN2 GND_LVDS Copyright © 2011 NEXCOM International Co., Ltd. All Rights Reserved. NISE 3500, NISE 3500M User Manual...

  • Page 41: Lvds Backlight Connector

    LVDS Backlight Connector Connector type: 1x7 7-pin header JST-2.5mm-M-180 Connector location: J13 Definition VCC5 PANEL1_BACKLIGHT PANEL1_BACKLIGHT L_BKLTCTL_R L_BKLTEN Copyright © 2011 NEXCOM International Co., Ltd. All Rights Reserved. NISE 3500, NISE 3500M User Manual...

  • Page 42: Sata Ports

    Connector type: Standard Serial ATAII 7P (1.27mm, SATA-M-180) Connector type: 4-pin Wafer, 2.54mm-M-180 Connector location: CN12 and CN13 Connector location: CN14 and CN15 Definition Definition SATA_TXP1 +12V SATA_TXN1 SATA_RXN1 VCC5 SATA_RXP1 Copyright © 2011 NEXCOM International Co., Ltd. All Rights Reserved. NISE 3500, NISE 3500M User Manual...

  • Page 43: Sata Dom Power Connectors

    Connector type: 1x2 2-pin JST wafer, 2.54mm pitch Connector type: 6-pin boxed header, JST-2.0mm-M-180 Connector location: J16 and J17 Connector location: J12 Definition +12V Definition USB10- USB10+ USB11- USB11+ Copyright © 2011 NEXCOM International Co., Ltd. All Rights Reserved. NISE 3500, NISE 3500M User Manual...

  • Page 44: Com4 Ri Pin Header

    Connector type: 1x5 5-pin header 2.0mm -M-180 Connector type: 2x2 4-pin 2.0mm -M-180 Connector location: J9 Connector location: JP1 Definition GPO_LED0 GPO_LED1 Definition VCC5 SP4_RI_T +12V SP4_RI_T SP4_R *Default: 4-5 Copyright © 2011 NEXCOM International Co., Ltd. All Rights Reserved. NISE 3500, NISE 3500M User Manual...

  • Page 45: Line-In Connector

    Connector location: J15 Connector location: J4 Definition LINE1-LP Description Description LINE1-JD LED_PWRN LED_PWRP LINE1-RP HD_LEDN LED_HDDP LAN1_LINK# LAN1_LINKP LAN1_LED_ACT# LAN1_ACTP LAN2_LINK# LAN2_LINKP LAN2_LED_ACT# LAN2_ACTP Copyright © 2011 NEXCOM International Co., Ltd. All Rights Reserved. NISE 3500, NISE 3500M User Manual...

  • Page 46: Smart Fan Connectors

    Connector type: 2x5 10-pin boxed header, 2.0mm-M-180 Connector location: J1 and J14 Connector location: CN5 Definition Definition SP5_DCD SP5_RXD Definition SP5_TXD SP5_DTR SP5_DSR +12V CPUFANIN_P SP5_RTS SP5_CTS CPUFANOUT_R SP5_RI Copyright © 2011 NEXCOM International Co., Ltd. All Rights Reserved. NISE 3500, NISE 3500M User Manual...

  • Page 47: Parallel Connector

    LPT_AFD#R LPT_RP_PRD0 LPT_ERR# LPT_RP_PRD1 LPT_INIT#R LPT_RP_PRD2 LPT_SLIN#R LPT_RP_PRD3 GND_LPT LPT_RP_PRD4 GND_LPT LPT_RP_PRD5 GND_LPT LPT_RP_PRD6 GND_LPT LPT_RP_PRD7 GND_LPT LPT_ACK#R GND_LPT LPT_BUSY GND_LPT LPT_PE GND_LPT LPT_SLCT Copyright © 2011 NEXCOM International Co., Ltd. All Rights Reserved. NISE 3500, NISE 3500M User Manual...

  • Page 48: Chapter 3: System Setup

    Dispose of used batteries according to the instructions.) 5. Optional Power adapter: Suggest to use an appropriate AC/DC power adapter compliant with CE or UL safety regulations. Copyright © 2011 NEXCOM International Co., Ltd. All Rights Reserved. NISE 3500, NISE 3500M User Manual...

  • Page 49: Installing A Dimm

    “key” on the socket. The key ensures the module can be plugged into the socket in only one direction. Ejector DIMM sockets Notch on the module Key on the socket Copyright © 2011 NEXCOM International Co., Ltd. All Rights Reserved. NISE 3500, NISE 3500M User Manual...
  • Page 50 The ejector tabs at the ends of the socket will au- tomatically snap into the locked position to hold the module in place. Copyright © 2011 NEXCOM International Co., Ltd. All Rights Reserved. NISE 3500, NISE 3500M User Manual...

  • Page 51: Installing The Cpu

    • Make sure all power cables are unplugged before you install the CPU. CAUTION! CAUTION! CAUTION! • The CPU socket must not come in contact with anything other than the CPU. Avoid unnecessary exposure. Copyright © 2011 NEXCOM International Co., Ltd. All Rights Reserved. NISE 3500, NISE 3500M User Manual...
  • Page 52 Do not force the CPU into the socket. Forcing the CPU into the Handle the CPU by its edges and avoid touching the pins. CAUTION! CAUTION! CAUTION! socket may bend the pins and damage the CPU. Copyright © 2011 NEXCOM International Co., Ltd. All Rights Reserved. NISE 3500, NISE 3500M User Manual...
  • Page 53 6. Align the mounting holes of the heat sink with the mounting studs on the board and then secure the heat sink with the provided screws. Mounting stud Copyright © 2011 NEXCOM International Co., Ltd. All Rights Reserved. NISE 3500, NISE 3500M User Manual...

  • Page 54: Installing A Sata Hard Drive

    If you are installing one SATA drive only, the system will allow you to install an optional CompactFlash card, a half length SATA DOM or a full length SATA DOM. Copyright © 2011 NEXCOM International Co., Ltd. All Rights Reserved. NISE 3500, NISE 3500M User Manual...
  • Page 55 SATA power cable SATA data cable Connector side of the SATA drive Copyright © 2011 NEXCOM International Co., Ltd. All Rights Reserved. NISE 3500, NISE 3500M User Manual...
  • Page 56 7. Use the provided mounting screws to secure the drive bay to the chas- sis. Copyright © 2011 NEXCOM International Co., Ltd. All Rights Reserved. NISE 3500, NISE 3500M User Manual...

  • Page 57: Installing A Half Length Sata Dom With Sata Hd (Nise 3500P2/3500M2/3500M2 E)

    SATA hard drive only. 1. Prior to installing the SATA DOM, you must first place the drive bay shown below into the chassis. SATA connector Drive bay Copyright © 2011 NEXCOM International Co., Ltd. All Rights Reserved. NISE 3500, NISE 3500M User Manual...
  • Page 58 SATA connector that is on the board and then press it down firmly. Secure the SATA DOM with the provided mounting screw. SATA DOM Mounting screw SATA connector Solder side of SATA DOM Copyright © 2011 NEXCOM International Co., Ltd. All Rights Reserved. NISE 3500, NISE 3500M User Manual...

  • Page 59: Installing A Full Length Sata Dom

    SATA connector that is on the board and then press it down Mounting hole firmly. Secure the SATA DOM with the provided mounting screw. SATA DOM Mounting screw SATA connector Solder side of SATA DOM Copyright © 2011 NEXCOM International Co., Ltd. All Rights Reserved. NISE 3500, NISE 3500M User Manual...
  • Page 60 5. Secure the drive bay with the provided mounting screws. Mounting screw Copyright © 2011 NEXCOM International Co., Ltd. All Rights Reserved. NISE 3500, NISE 3500M User Manual...

  • Page 61: Wallmount Brackets

    Secure the bracket to the system Wallmount bracket Fasten screws to mount the system to the wall Copyright © 2011 NEXCOM International Co., Ltd. All Rights Reserved. NISE 3500, NISE 3500M User Manual...

  • Page 62: Chapter 4: Bios Setup

    BIOS is updated in the future. options, and second, to make settings appropriate for the way you use the computer. To check for the latest updates and revisions, visit the NEXCOM Web site at www.nexcom.com.tw. When to Configure the BIOS...

  • Page 63: Default Configuration

    When “u“ appears on the left of a particular field, it indicates that a submenu which contains additional options are available for that field. To display the submenu, move the highlight to that field and press <Enter>. Copyright © 2011 NEXCOM International Co., Ltd. All Rights Reserved. NISE 3500, NISE 3500M User Manual...

  • Page 64: Bios Setup Utility

    General Help Previous Values Optimized Defaults Save ESC: Exit Version 2.00.1201. Copyright (C) 2009 American Megatrends, Inc. BIOS Information Displays the detected BIOS information. Copyright © 2011 NEXCOM International Co., Ltd. All Rights Reserved. NISE 3500, NISE 3500M User Manual...
  • Page 65 Launch PXE OpROM Enables or disables the boot option for legacy network devices. S5 RTC Wake Settings Configures the S5 RTC wake up setting. Copyright © 2011 NEXCOM International Co., Ltd. All Rights Reserved. NISE 3500, NISE 3500M User Manual...

  • Page 66: Cpu Configuration

    Hyper-Threading technology. When disabled, only one thread per enabled core is enabled. Active Processor Cores Used to enter the number of cores to enable in each processor package. Copyright © 2011 NEXCOM International Co., Ltd. All Rights Reserved. NISE 3500, NISE 3500M User Manual...
  • Page 67 AHCI Mode This option allows the Serial ATA devices to use AHCI (Ad- vanced Host Controller Interface). RAID Mode This option allows you to create RAID or Intel Matrix Stor- age configuration on Serial ATA devices. Copyright © 2011 NEXCOM International Co., Ltd. All Rights Reserved. NISE 3500, NISE 3500M User Manual...
  • Page 68 Selects the video device that will be activated during POST. This will not affect any external graphics that may be present. LCD Panel Type Selects the LCD panel used by the internal graphics device. Copyright © 2011 NEXCOM International Co., Ltd. All Rights Reserved. NISE 3500, NISE 3500M User Manual...

  • Page 69: Super Io Configuration

    This is a workaround for OSes that does not support EHCI hand-off. The EHCI ownership change should be claimed by the EHCI driver. Device Reset Timeout Selects the USB mass storage device start unit command timeout. Copyright © 2011 NEXCOM International Co., Ltd. All Rights Reserved. NISE 3500, NISE 3500M User Manual...

  • Page 70: Thermal Configuration

    Detects and displays the current system fan and CPU fan speed in RPM (Revolutions Per Minute). CPU:Vcore to +12V Detects and displays the output voltages. Copyright © 2011 NEXCOM International Co., Ltd. All Rights Reserved. NISE 3500, NISE 3500M User Manual...

  • Page 71: Amt Configuration

    OS Watchdog Timer Selects the time interval of the OS Watchdog Timer. BIOS Watchdog Timer Selects the time interval of the BIOS Watchdog Timer. Copyright © 2011 NEXCOM International Co., Ltd. All Rights Reserved. NISE 3500, NISE 3500M User Manual...

  • Page 72: North Bridge

    +/ -: Change Opt. IGD Memory [32M] General Help Previous Values Optimized Defaults Save ESC: Exit Version 2.00.1201. Copyright (C) 2009 American Megatrends, Inc. Copyright © 2011 NEXCOM International Co., Ltd. All Rights Reserved. NISE 3500, NISE 3500M User Manual...

  • Page 73: South Bridge

    Enables or disables the Gigabit LAN controller. Wake On Lan From S5 When enabled, it allows the system to wake up from S5 via the network LAN. Copyright © 2011 NEXCOM International Co., Ltd. All Rights Reserved. NISE 3500, NISE 3500M User Manual...

  • Page 74: Intel Me Configuration

    Enables or disables the Enhanced Host Controller Interface (USB 2.0). The options are Enabled and Disabled. Execute MEBx The options are Enabled and Disabled. Copyright © 2011 NEXCOM International Co., Ltd. All Rights Reserved. NISE 3500, NISE 3500M User Manual...

  • Page 75: Interrupt 19 Capture

    This doesn’t affect the BBS boot options. Setup Prompt Timeout Selects the number of seconds to wait for the setup activation key. 65535(0xFFFF) denotes indefinite waiting. Copyright © 2011 NEXCOM International Co., Ltd. All Rights Reserved. NISE 3500, NISE 3500M User Manual...

  • Page 76: Administrator Password

    To discard the changes, select this field then press <Enter>. A dialog box will appear. Confirm by selecting Yes to discard all changes made and restore the previously saved settings. Copyright © 2011 NEXCOM International Co., Ltd. All Rights Reserved. NISE 3500, NISE 3500M User Manual...

  • Page 77: Enable Intel ® Amt In The Ami Bios

    Optimized Defaults Save ESC: Exit Save ESC: Exit Version 2.00.1201. Copyright (C) 2009 American Megatrends, Inc. Version 2.00.1201. Copyright (C) 2009 American Megatrends, Inc. Copyright © 2011 NEXCOM International Co., Ltd. All Rights Reserved. NISE 3500, NISE 3500M User Manual...

  • Page 78: Configure The Intel ® Me Setup

    Intel(R) ME General Settings Press <CTRL-P> to enter Intel(R) ME Setup Intel(R) AMT Configuration Exit Intel(R) ME Password ***** [ENTER] : Submit [ESC] : Exit Copyright © 2011 NEXCOM International Co., Ltd. All Rights Reserved. NISE 3500, NISE 3500M User Manual...
  • Page 79 Intel(R) ME General Settings Intel(R) AMT Configuration Exit [ENTER] : Submit [ESC] : Exit Intel(R) ME New Password [ENTER] : Submit [ESC] : Exit Copyright © 2011 NEXCOM International Co., Ltd. All Rights Reserved. NISE 3500, NISE 3500M User Manual...
  • Page 80 Unconfigure Network Access Remote Setup and Configuration FW Update Settings [ESC] : Exit ] : Select [ENTER] : Access ↑↓ [*] DISABLED [*] ENABLED Copyright © 2011 NEXCOM International Co., Ltd. All Rights Reserved. NISE 3500, NISE 3500M User Manual...
  • Page 81 Remote Setup and Configuration FW Update Settings [ESC] : Exit ] : Select [ENTER] : Access ↑↓ ] : Select [ESC] : Exit [ENTER] : Access ↑↓ Copyright © 2011 NEXCOM International Co., Ltd. All Rights Reserved. NISE 3500, NISE 3500M User Manual...
  • Page 82 [ESC] : Exit ] : Select [ENTER] : Access ↑↓ Previous Menu [ESC] : Exit ] : Select [ENTER] : Access ↑↓ Computer host name QM57 Copyright © 2011 NEXCOM International Co., Ltd. All Rights Reserved. NISE 3500, NISE 3500M User Manual...
  • Page 83 ] : Select [ESC] : Exit [ENTER] : Access ↑↓ [ESC] : Exit ] : Select [ENTER] : Access ↑↓ [*] DISABLED [*] ENABLED Copyright © 2011 NEXCOM International Co., Ltd. All Rights Reserved. NISE 3500, NISE 3500M User Manual...
  • Page 84 Previous Menu Alternate DNS Address Previous Menu ] : Select [ESC] : Exit [ENTER] : Access ↑↓ Subnet mask (e.g. 255.255.255.0) IP address (e.g. 123.123.123.100) Copyright © 2011 NEXCOM International Co., Ltd. All Rights Reserved. NISE 3500, NISE 3500M User Manual...
  • Page 85 Previous Menu [ESC] : Exit ] : Select [ENTER] : Access ↑↓ [ESC] : Exit ] : Select [ENTER] : Access ↑↓ Default Gateway Address Copyright © 2011 NEXCOM International Co., Ltd. All Rights Reserved. NISE 3500, NISE 3500M User Manual...
  • Page 86 [Caution] Activates the current network settings ] : Select [ESC] : Exit [ENTER] : Access ↑↓ and opens the ME network interface Continue: (Y/N) Copyright © 2011 NEXCOM International Co., Ltd. All Rights Reserved. NISE 3500, NISE 3500M User Manual...
  • Page 87 Set PRTC Power Control ] : Select ] : Select [ESC] : Exit [ENTER] : Access [ESC] : Exit [ENTER] : Access ↑↓ ↑↓ Copyright © 2011 NEXCOM International Co., Ltd. All Rights Reserved. NISE 3500, NISE 3500M User Manual...
  • Page 88 [ENTER] : Access ↑↓ [ESC]=Exit ]=Select [ENTER]=Access ↑↓ [*] Mobile: ON in S0 [*] Mobile: ON in S0, ME Wake in S3, S4-5 (AC only) Copyright © 2011 NEXCOM International Co., Ltd. All Rights Reserved. NISE 3500, NISE 3500M User Manual...
  • Page 89 Intel(R) ME General Settings Exit Intel(R) AMT Configuration Exit [ESC]=Exit ]=Select [ENTER]=Access ↑↓ [ESC]=Exit ]=Select [ENTER]=Access ↑↓ Update network settings in the General Settings menu Copyright © 2011 NEXCOM International Co., Ltd. All Rights Reserved. NISE 3500, NISE 3500M User Manual...
  • Page 90 Username & Password KVM Configuration Previous Menu IDER Legacy Redirection Mode Previous Menu ]=Select [ESC]=Exit [ENTER]=Access ↑↓ [ESC]=Exit ]=Select [ENTER]=Access ↑↓ [*] DISABLED [*] ENABLED Copyright © 2011 NEXCOM International Co., Ltd. All Rights Reserved. NISE 3500, NISE 3500M User Manual...
  • Page 91 Legacy Redirection Mode Legacy Redirection Mode Previous Menu Previous Menu ]=Select ]=Select [ESC]=Exit [ENTER]=Access [ESC]=Exit [ENTER]=Access ↑↓ ↑↓ [*] DISABLED [*] DISABLED [*] ENABLED [*] ENABLED Copyright © 2011 NEXCOM International Co., Ltd. All Rights Reserved. NISE 3500, NISE 3500M User Manual...
  • Page 92 [ESC]=Exit ]=Select [ENTER]=Access ↑↓ ]=Select [ESC]=Exit [ENTER]=Access ↑↓ [*] DISABLED [*] ENABLED Redirection Mode must be enabled when using a legacy SMB Redirection Console Copyright © 2011 NEXCOM International Co., Ltd. All Rights Reserved. NISE 3500, NISE 3500M User Manual...
  • Page 93 SOL/IDER Opt-in Configurable from remote IT KVM Configuration Previous Menu Previous Menu [ESC]=Exit ]=Select [ENTER]=Access [ESC]=Exit ]=Select [ENTER]=Access ↑↓ ↑↓ [*] DISABLED [*] ENABLED Copyright © 2011 NEXCOM International Co., Ltd. All Rights Reserved. NISE 3500, NISE 3500M User Manual...
  • Page 94 [*] User Consent is not required for KVM Session [*] User Consent is required for KVM Session Disable Remote Control of KVM Opt-in Policy [*] Enable Remote Control of KVM Opt-in Policy Copyright © 2011 NEXCOM International Co., Ltd. All Rights Reserved. NISE 3500, NISE 3500M User Manual...
  • Page 95 Intel(R) AMT Configuration Exit [ESC] : Exit ] : Select [ENTER] : Access ↑↓ [ CONFIRM EXIT ] Are you sure you want to exit? (Y/N): Copyright © 2011 NEXCOM International Co., Ltd. All Rights Reserved. NISE 3500, NISE 3500M User Manual...

  • Page 96: Unconfigure Amt/Me

    Optimized Defaults Save ESC: Exit Save ESC: Exit Version 2.00.1201. Copyright (C) 2009 American Megatrends, Inc. Version 2.00.1201. Copyright (C) 2009 American Megatrends, Inc. Copyright © 2011 NEXCOM International Co., Ltd. All Rights Reserved. NISE 3500, NISE 3500M User Manual...
  • Page 97 3. The message below will appear. Type Y. Intel(R) Management Engine BIOS Extension v6.0.3.0019 Copyright(C) 2003-09 Intel Corporation. All Rights Reserved. Found unconfigure of Intel(R) ME Continue with unconfiguration (Y/N) Copyright © 2011 NEXCOM International Co., Ltd. All Rights Reserved. NISE 3500, NISE 3500M User Manual...

  • Page 98: Appendix A: Power Consumption

    NISE3500 HEATSINK System Fan Keyboard LEMEL B-5201-P LEMEL B-5201-P LEMEL B-5201-P Mouse GENIVS EASY MOUSE PS/2 GENIVS EASY MOUSE PS/2 GENIVS EASY MOUSE PS/2 Copyright © 2011 NEXCOM International Co., Ltd. All Rights Reserved. NISE 3500, NISE 3500M User Manual...

  • Page 99: Power Consumption Measurement

    4. Run the Burn-in test program to apply 100% full loading. 5. Run the Intel Kpower program. 5. Run the LAN Packet Counter and Receive program. Copyright © 2011 NEXCOM International Co., Ltd. All Rights Reserved. NISE 3500, NISE 3500M User Manual...

  • Page 100: Appendix B: Gpi/O Programming Guide

    Bit4 : GPO24 GPO26 GPI22 Bit5 : GPO25 GPO27 GPI23 Bit6 : GPO26 Bit7 : GPO27 1. Read/Write GPIO data by I/O port 801h Copyright © 2011 NEXCOM International Co., Ltd. All Rights Reserved. NISE 3500, NISE 3500M User Manual...

  • Page 101: Appendix C: Watchdog Timer Setting

    Users can select second or minute Step 3 See “TimeCountWDT” procedure #Set Watchdog Timer Time-out Value Users can set time-out value Step 4 See ExitSetup procedure #Exit Setup Environment Copyright © 2011 NEXCOM International Co., Ltd. All Rights Reserved. NISE 3500, NISE 3500M User Manual...
  • Page 102 -o 2e 74 ;MSB for Watch dog tme out value -o 2f ZZ XX: 90 : Second mode 10 : minute mode 10 second timeout: xx=90 yy=0a zz=00 Copyright © 2011 NEXCOM International Co., Ltd. All Rights Reserved. NISE 3500, NISE 3500M User Manual...

  • Page 103: Appendix D: Intel Embedded Amt Management Express Kvm

    Intel Embedded AMT Management Express icon will appear on pears, click Accept. your desktop. 2. Double-click the icon to run Intel Embedded AMT Management Ex- press. Copyright © 2011 NEXCOM International Co., Ltd. All Rights Reserved. NISE 3500, NISE 3500M User Manual...

  • Page 104: Appendix D: Intel Embedded Amt Management Express Kvm

    4. Click the first icon in the toolbar (top row). 5. Enter a range of IP addresses that is within the network to find iAMT computers. 6. Click the Start Scan icon. Copyright © 2011 NEXCOM International Co., Ltd. All Rights Reserved. NISE 3500, NISE 3500M User Manual...

  • Page 105: Appendix D: Intel Embedded Amt Management Express Kvm

    Enter the ME BIOS’ username “admin” and password. Click OK. 9. After you have added the iAMT computer, a dialog box will appear informing you that the device was added successfully. Click OK. Copyright © 2011 NEXCOM International Co., Ltd. All Rights Reserved. NISE 3500, NISE 3500M User Manual...

  • Page 106: Appendix D: Intel Embedded Amt Management Express Kvm

    Device-1 icon in the Device section. nect to the remote iAMT computer. Move the cursor to Device-1 and you will see the remote iAMT com- puter’s IP address. Copyright © 2011 NEXCOM International Co., Ltd. All Rights Reserved. NISE 3500, NISE 3500M User Manual...

  • Page 107: Appendix D: Intel Embedded Amt Management Express Kvm

    Connection Status: Connection Established will appear at the bot- ME BIOS’ username “admin” and password. tom of the screen. Click the Connect icon to connect to the remote computer. Copyright © 2011 NEXCOM International Co., Ltd. All Rights Reserved. NISE 3500, NISE 3500M User Manual...

  • Page 108: Appendix D: Intel Embedded Amt Management Express Kvm

    ME BIOS admin’s password and then click the Start Session icon. You will be prompted to enter the VNC’s password. Enter the 6-character password that appeared on the remote com- puter. Copyright © 2011 NEXCOM International Co., Ltd. All Rights Reserved. NISE 3500, NISE 3500M User Manual...

  • Page 109: Appendix D: Intel Embedded Amt Management Express Kvm

    VNC connection failed. You must click the KVM icon again and then select KVM Viewer Redirect Port to reconnect. Copyright © 2011 NEXCOM International Co., Ltd. All Rights Reserved. NISE 3500, NISE 3500M User Manual...

  • Page 110: Appendix E: Intel Manageability Command Tool-Kvm

    The Network Discovery screen allows you to scan to find iAMT comput- ers (with the ME BIOS configured) on the specified range of IP address- Copyright © 2011 NEXCOM International Co., Ltd. All Rights Reserved. NISE 3500, NISE 3500M User Manual...
  • Page 111 You can either click Add Known Computer to add the iAMT comput- er to the Network list on the left column or double-click the computer Click OK. name under the Discovered Computers list. Copyright © 2011 NEXCOM International Co., Ltd. All Rights Reserved. NISE 3500, NISE 3500M User Manual...
  • Page 112 Connect & Control screen will appear on the right side. Select the Connection tab and then click Connect. The Manageability Commander Tool will connect the iAMT computer with the server. Copyright © 2011 NEXCOM International Co., Ltd. All Rights Reserved. NISE 3500, NISE 3500M User Manual...
  • Page 113 10. Display the hierarchical structure of the iAMT computer’s files and blue. The server and iAMT computer are now connected. folders. This will allow you to view the remote computer’s hardware status and configuration. Copyright © 2011 NEXCOM International Co., Ltd. All Rights Reserved. NISE 3500, NISE 3500M User Manual...
  • Page 114 12. Under the KVM section, check whether the Remote KVM Setting’s Click OK. status is All Parts Enabled. If not, click the â arrow beside it. Copyright © 2011 NEXCOM International Co., Ltd. All Rights Reserved. NISE 3500, NISE 3500M User Manual...
  • Page 115 VNC connection failed. You must click the KVM icon again and then select KVM Viewer Redirect Port to reconnect. Copyright © 2011 NEXCOM International Co., Ltd. All Rights Reserved. NISE 3500, NISE 3500M User Manual...

  • Page 116: Appendix F: External Anti-Vibration Kit

    1x Wallmount Bracket (P/N: 5043330381X00) b. 8x Screws (P/N: 50311F0110X00) c. 8x Damper (P/N: 5044440201X0) 8x Screws (P/N: 50311F0110X00) 8x Damper (P/N: 5044440201X0) Wallmount Bracket (P/N: 5043330381X00) Copyright © 2011 NEXCOM International Co., Ltd. All Rights Reserved. NISE 3500, NISE 3500M User Manual...
  • Page 117 4. Mounting style Secure the bracket to the system with 8x screws Four 6-32 Screws for mounting Caution: Ceiling mount is not suggested Finish Copyright © 2011 NEXCOM International Co., Ltd. All Rights Reserved. NISE 3500, NISE 3500M User Manual...
  • Page 118 Use only with UL listed / IEC60950-1 approved power supply, rated O/P: 24Vdc, Minimum 5A, minimum operating temperature 55�C b. Use only the power adapter which specified 55�C minimum in oper- ating temperature condition Copyright © 2011 NEXCOM International Co., Ltd. All Rights Reserved. NISE 3500, NISE 3500M User Manual...
  • Page 119 Appendix F: External Anti-vibration Kit 8. Dimension of the anti-vibration kit Copyright © 2011 NEXCOM International Co., Ltd. All Rights Reserved. NISE 3500, NISE 3500M User Manual...

  • Page 120: Appendix G: Nise3500Ip2 Series With Isolated Dc Input Design

    (According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14) • Storage Temperature: -20 ~ 80 degree C • Relative humidity: 10% to 93% *(Non-Condensing) WARNING: HOT SURFACE, DO NOT TOUCH. Copyright © 2011 NEXCOM International Co., Ltd. All Rights Reserved. NISE 3500, NISE 3500M User Manual...

This manual is also suitable for:

Nise 3500m series

Table of Contents
