Chapter 3: Jumpers and Connectors
VTC 6222 and nROK 6222 Connector Specification & Jumper Setting
VTC 6222 and nROK 6222 Carrier Board Placement

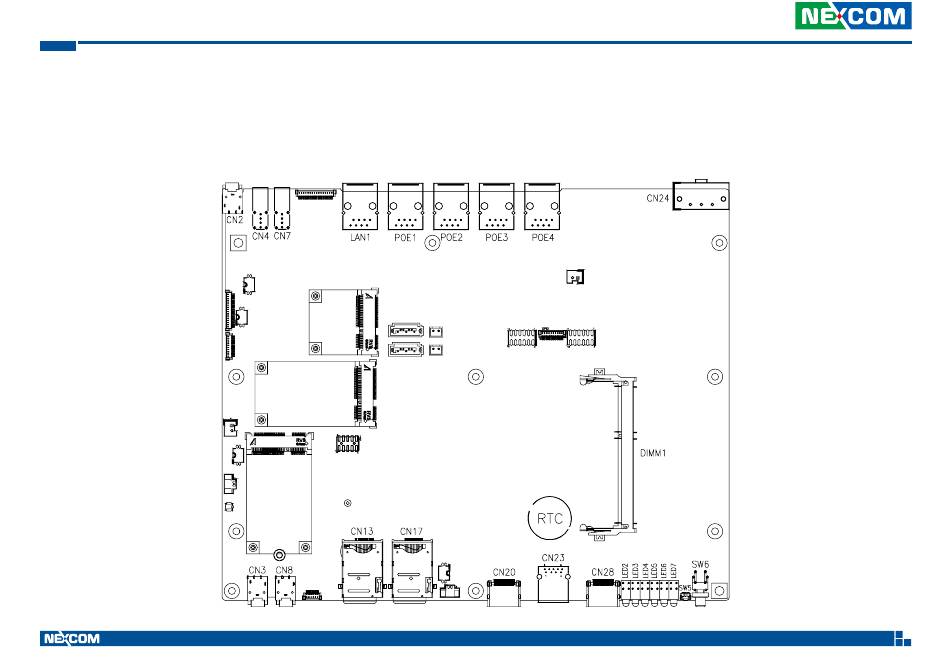

The figure below is the carrier board used in the VTC 6222 system. It shows the locations of the jumpers and connectors.
Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved.
J8
J2
SW3
CN15
SW2
CN10
J3
CN16
CN9
J4
SW1
JP4
CN6
J1
CN1
J7
J15
JP5 J13
JP6
J10
J11
SW4
J12
27
VTC 6222 and nROK 6222 User Manual
