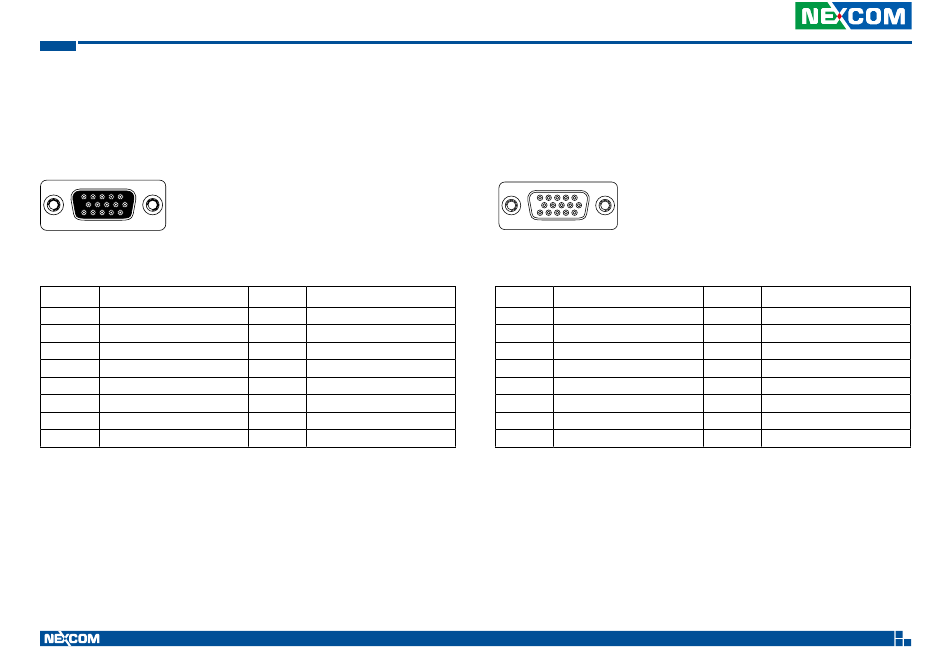

Chapter 2: External Connectors Pinout Description
Multi Port
Connector Number: 15
5
1
15
11
Pin
Definition
1
CAN_H
3
RS232_TX
5
RS485_TX+
7
ISO_GND
9
RS422_TX-
11
CANISO_GND
13
GND
15
DC 12V
Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved.
Pin
Definition
2
RS232_RX
4
RS485_TX-
6
CAN_L
8
ISO_GND
10
RS422_TX+
12
GND
14
DC 12V
VGA
Connector Number: 16
5
1
5
1
15
11
15
11
Pin
Definition
1
VGA_RED
3
VGA_BLUE
5
GND
7
GND
9
VGA_+5V
11
CH7517_SPD_R
13
VGA_HS
15
VGA_CLK
20
Pin
Definition
2
VGA_GREEN
4
CH7517_SPC_R
6
GND
8
GND
10
GND
12
VGA_DATA
14
VGA_VS
