Chapter 3: Jumpers and Connectors

Connectors

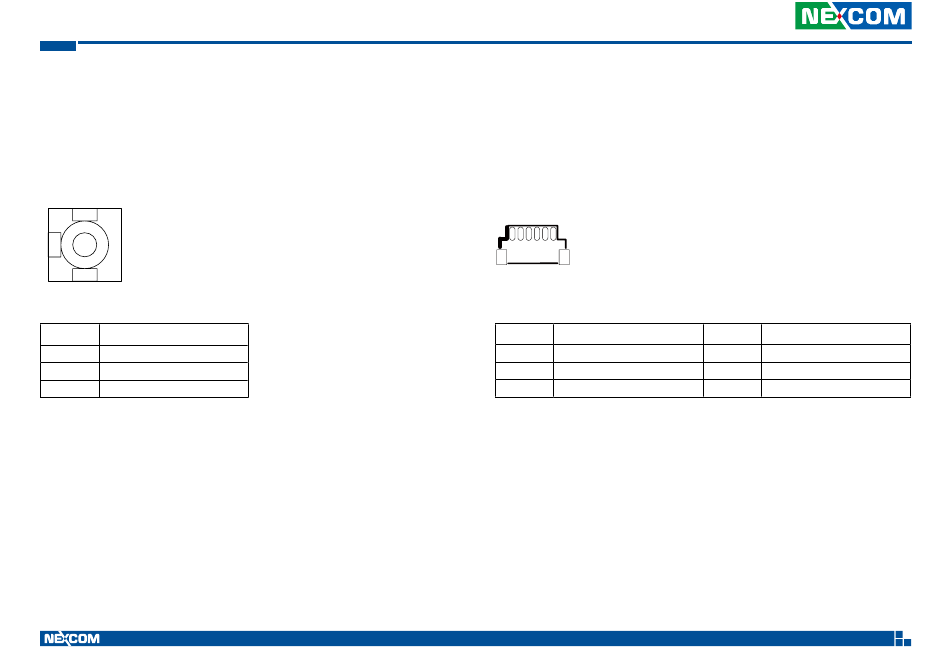

GPS Module RF Connector

Connector type: 1x3 3-pin header
Connector location: CN1
3
1
2
Pin Definition
1 VCC_RF_ANT
2 GND
3 GND
Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved.

Internal Audio Header (Line-out and Mic-in)

Connector type: 1x3 3-pin header, 1.0mm pitch
Connector location: J7
1 6
Pin Definition
1 SURR OUT_L
3 SURR OUT_R
5 MIC_JD
* The audio header on J7 is co-layed with the audio jacks on CN3 and CN8. Default is CN3
and CN8.
* The audio jacks on CN2, CN3 and CN8 are only available on VTC 6222.
31
Pin Definition
2 SURR_JD
4 MIC1_L
6 GND
