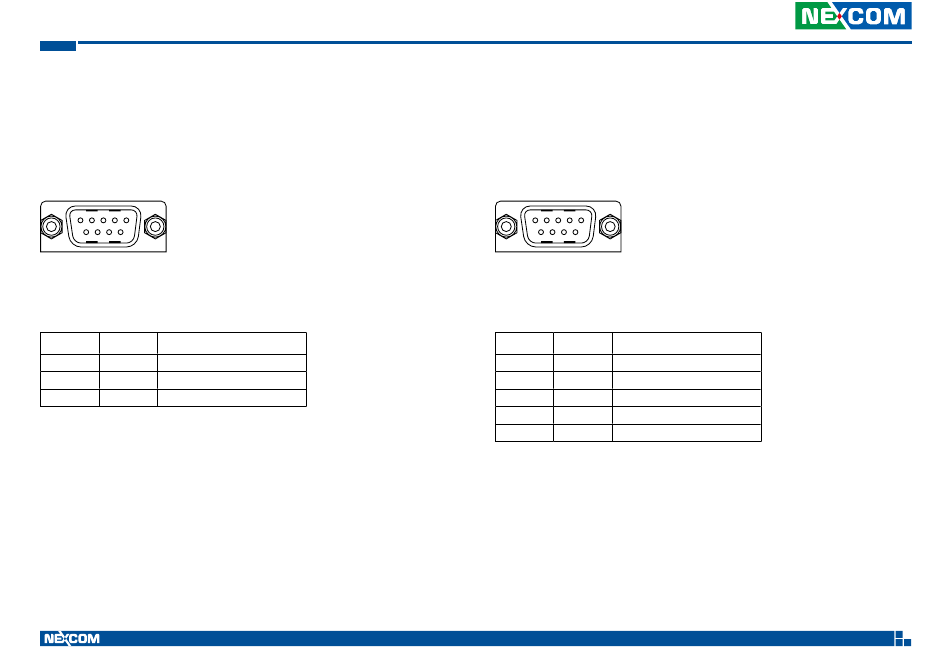

Appendix E: Pin Definition for the Multi Port Cable
RS232 Connector
Connector location: P3
1
5
6
9
P1 Pin
P3 Pin
Definition
2
2
RS232_RX
3
3
RS232_TX
7
5
ISO_GND
Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved.
RS485/RS422 Connector
Connector location: P4
1
5
6
9
P1 Pin
P4 Pin
4
4
5
3
8
5
9
1
10
2
78
Definition
RS485_TX-
RS485_TX+
ISO_GND
RS422_TX-
RS422_TX+
