Chapter 3: Jumpers and Connectors

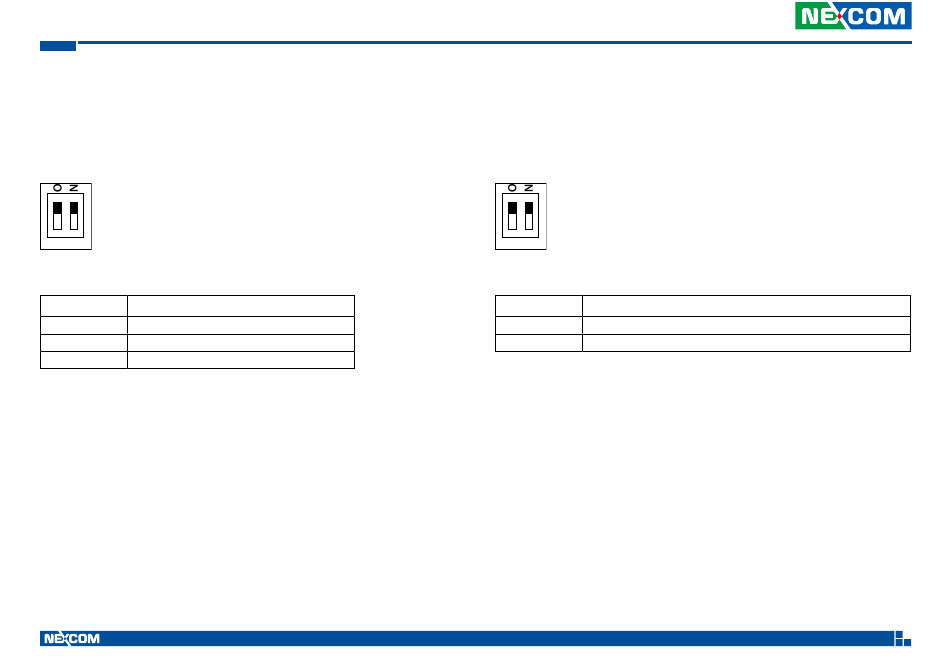

Input Voltage Selection Switch
Connector type: 2-pin DIP switch
Connector location: SW1
1 2
Pin
Definition
1 OFF, 2 OFF
1 OFF, 2 ON
1 ON, 2 ON
9-36V (Default)
Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved.
12V
24V
RS422/RS485 Terminator Resistor Selection Switch
Connector type: 2-pin DIP switch
Connector location: SW2
1 2
Pin
1 ON, 2 ON
RS422/RS485 Terminator Resistor (Default)
1 OFF, 2 OFF
RS422/RS485 No Terminator Resistor
29
Definition
VTC 6222 and nROK 6222 User Manual
