Chapter 4: System Setup

C 4: s
haPter ystem

Removing the Chassis Cover

Prior to removing the chassis cover, make sure the unit's power
CAUTION! CAUTION!
CAUTION! is off and disconnected from the power sources to prevent
electric shock or system damage.

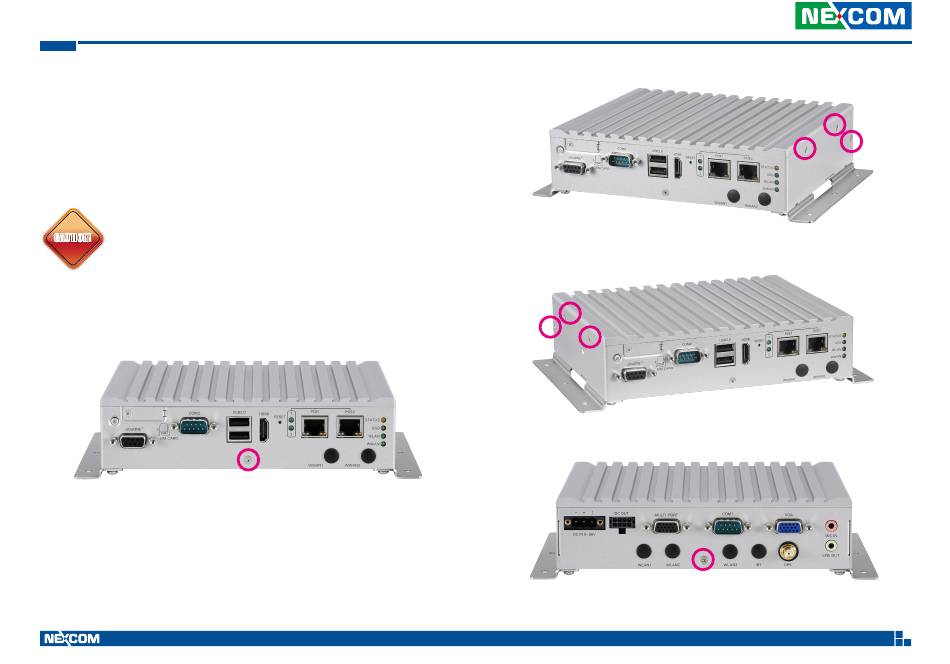

1. The screws and nuts circled on the front, side, rear and bottom are used
to secure the chassis. Remove these screws and nuts and put them in a
safe place for later use.
Front View
Copyright © 2018 NEXCOM International Co., Ltd. All Rights Reserved.
s
etuP
33
Right View
Left View
Rear View
