Chapter 3: Jumpers and Connectors

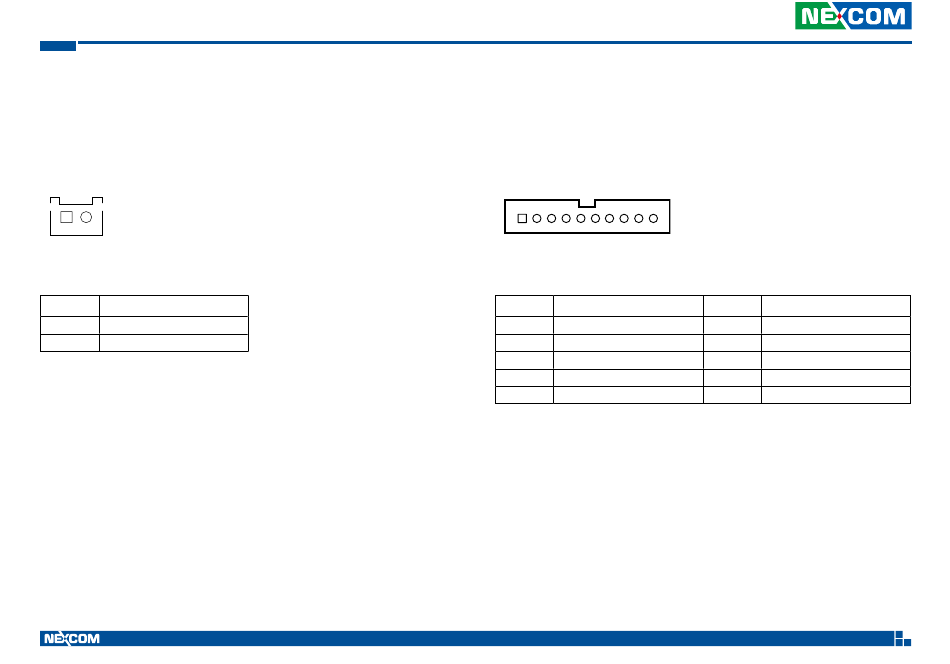

DC 12V OUT Connector
Connector type: 1x2 2-pin header, 2.5mm pitch
Connector location: J4
1
2
Pin
Definition
1
12V_OUT
2
GND
Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved.
Internal RS232 COM1 Connector
Connector type: 1x10 10-pin header, 1.0mm pitch
Connector location: J3
1
Pin
Definition
1
GND
3
SP_CTS_1
5
SP_DTR_1
7
COM1_RI#_PW
9
SP_TXD_1
36
10
Pin
Definition
2
GND
4
SP_DSR_1
6
SP_RXD_1
8
SP_RTS_1
10
SP_DCD_1
VTC 6222 and nROK 6222 User Manual
