Chapter 4: System Setup
Installing a WLAN Module

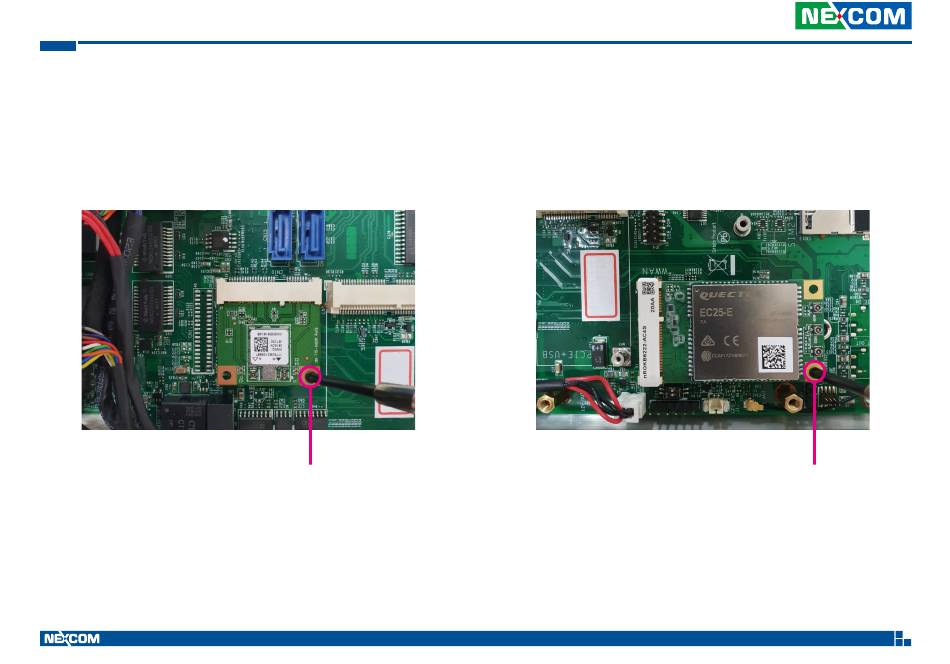

1. Locate the WLAN mini PCI Express slot (CN10). Insert the module into
the mini PCI Express slot at a 45 degrees angle until the gold-plated
connector on the edge of the module completely disappears inside the
slot. Then fasten a screw into the mounting hole to secure the module.
Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved.
Mounting
Screw
Installing a WWAN Module
1. Locate the WWAN mini PCI Express slot (CN6). Insert the module into the
mini PCI Express slot at a 45 degrees angle until the gold-plated connector
on the edge of the module completely disappears inside the slot. Then
fasten a screw into the mounting hole to secure the module.
46
Mounting
Screw
