Hdmi Connector; Sim1 To Sim2 Mini-Sim Sockets - Nexcom VTC 6222 User Manual

Chapter 2: External Connectors Pinout Description

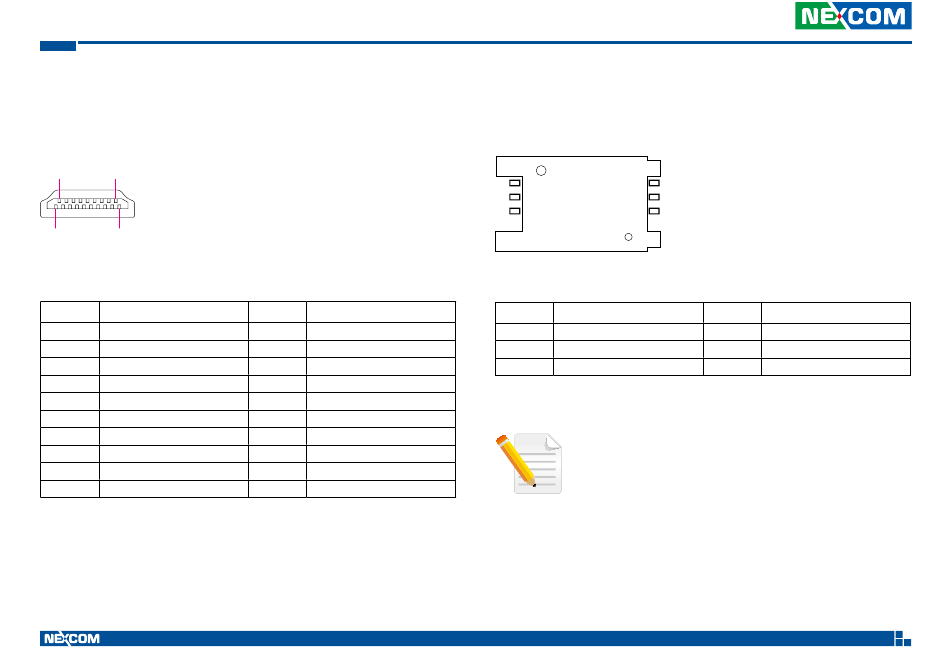

HDMI Connector

Connector number: 6
2 18
1 19
Pin Definition
1 HDMI_TX2P_L
3 HDMI_TX2N_L
5 GND
7 HDMI_TX0P_L
9 HDMI_TX0N_L
11 GND
13 NC
15 HDMI_SCL
17 GND
19 HDMI_HPD
Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved.
Pin Definition
2 GND
4 HDMI_TX1P_L
6 HDMI_TX1N_L
8 GND
10 HDMI_CLK_P_L
12 HDMI_CLK_N_L
14 NC
16 HDMI_SDA
18 HDMI_P5V

SIM1 to SIM2 Mini-SIM Sockets

Connector number: 7
C3
C2
C1
SIM1-1/1-2 to SIM4-1/4-2
Pin Definition
C1 UIM_PWR
C2 UIM_RST
C3 UIM_CLK
Note: SIM4-1/4-2 (BOM optional)
15
C7
C6
C5
Pin Definition
C5 NC
C6 UIM_DAT
C7 NC
