NEXCOM International Co., Ltd.
Mobile Computing Solutions

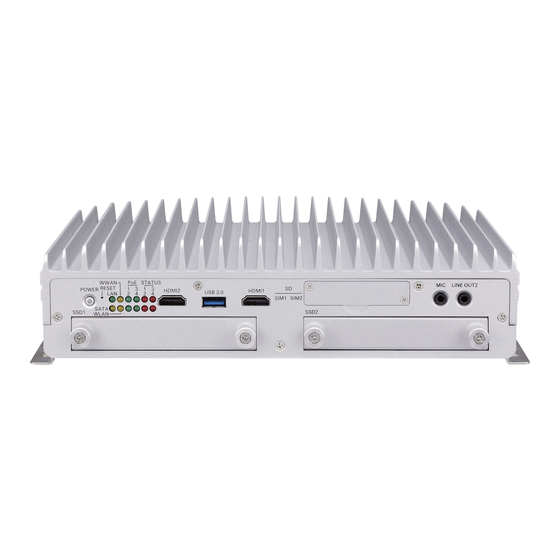

Vehicle Telematics & Railway Computer
VTC 6222 and nROK 6222
User Manual
NEXCOM International Co., Ltd.
www.nexcom.com
Published September 2022

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VTC 6222 and is the answer not in the manual?

Questions and answers

Related Manuals for Nexcom VTC 6222

Summary of Contents for Nexcom VTC 6222

  • Page 1 NEXCOM International Co., Ltd. Mobile Computing Solutions Vehicle Telematics & Railway Computer VTC 6222 and nROK 6222 User Manual NEXCOM International Co., Ltd. www.nexcom.com Published September 2022...

  • Page 2: Table Of Contents

    M12 USB 2.0 Connector (nROK 6222) ..........18 Rear View ....................5 M12 LAN Connector (nROK 6222) .............18 Overview ....................6 M12 PoE LAN Connectors (nROK 6222) ..........19 Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved. VTC 6222 and nROK 6222 User Manual...
  • Page 3 Precautions ..................25 Inserting SIM Cards ................44 Jumper Settings ..................26 Inserting an SD Card ................45 VTC 6222 and nROK 6222 Connector Specification & Jumper Setting ..27 Installing a WLAN Module ..............46 Jumper and DIP Switch Settings ............28 Installing a WWAN Module ..............46 GPO Pull High Selection ..............28...
  • Page 4 P2 to P5 Connector Pinouts ..............77 CAN Connector .................77 RS232 Connector ................78 RS485/RS422 Connector ..............78 DC Output Connector ...............79 P1 Connector Pinout ................81 Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved. VTC 6222 and nROK 6222 User Manual...

  • Page 5: Preface

    Acknowledgements The product(s) described in this manual complies with all applicable VTC 6222 and nROK 6222 are trademarks of NEXCOM International Co., European Union (CE) directives if it has a CE marking. For computer systems Ltd. All other product names mentioned herein are registered trademarks of to remain CE compliant, only CE-compliant parts may be used.

  • Page 6: Rohs Compliance

    0.1% or 1,000ppm, and Polybrominated diphenyl Ethers (PBDE) < 0.1% or 1,000ppm. In order to meet the RoHS compliant directives, NEXCOM has established an engineering and manufacturing task force in to implement the introduction of green products. The task force will ensure that we follow the standard...

  • Page 7: Warranty And Rma

    ▪ Replace with 3rd party products if needed. encountered and note anything abnormal or, print out any on-screen ▪ If RMA goods can not be repaired, NEXCOM will return it to the customer messages, and describe the problems on the “NEXCOM RMA Service without any charge.
  • Page 8 Always power off the system before inserting or removing the SIM only with the same or equivalent type recommended by the manufacturer. card. Discard used batteries according to the manufacturer’s instructions. viii Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved. VTC 6222 and nROK 6222 User Manual...
  • Page 9 ▪ The computer is provided with CD drives that comply with the appropriate ▪ All cautions and warnings on the equipment should be noted. safety standards including IEC 60825. Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved. VTC 6222 and nROK 6222 User Manual...

  • Page 10: Technical Support And Assistance

    Preface Technical Support and Assistance Conventions Used in this Manual 1. For the most updated information of NEXCOM products, visit NEXCOM’s Warning: website at www.nexcom.com. Information about certain situations, which if not observed, can cause personal injury. This will prevent injury to yourself 2.

  • Page 11: Global Service Contact Information

    Tel: +886-2-8976-3077 Beitun District, Fax: +886-2-8226-7782 Email: sales@diviotec.com Taichung City, 406, Taiwan, R.O.C. Email: services@tmrtek.com www.diviotec.com Tel: +886-4-2249-1179 www.tmrtek.com Fax: +886-4-2249-1172 Email: jacobhuang@nexaiot.com www.nexaiot.com Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved. VTC 6222 and nROK 6222 User Manual...
  • Page 12 4-11-5, Shiba Minato-ku, ShenZhen, 518112, China Tokyo, 108-0014, Japan Tel: +86-755-8364-7768 Tel: +81-3-5419-7830 Fax: +86-755-8364-7738 Fax: +81-3-5419-7832 Email: steveyang@nexcom.com.tw Email: sales@nexcom-jp.com www.nexcom.cn www.nexcom-jp.com Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved. VTC 6222 and nROK 6222 User Manual...

  • Page 13: Vtc 6222 Package Contents

    4NCPM00302X00 Terminal Blocks 3P Phoenix Contact:1777992 5.08mm Male DIP Green 602DCD1643X00 VTC 6222-C4S DVD Driver VER:1.0 603ANT0115X00 GPS/Glonass Antenna SANAV:SM-76G SMA Male L=5000mm xiii Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved. VTC 6222 and nROK 6222 User Manual...

  • Page 14: Nrok 6222 Package Contents

    Waterproof M12 A Coded 5-pin (female) to Open 603POW0378X00 Power Cable ST:MD-5108077 L=300mm 602DCD1643X00 VTC 6222-C4S DVD Driver VER:1.0 603ANT0115X00 GPS/Glonass Antenna SANAV:SM-76G SMA Male L=5000mm Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved. VTC 6222 and nROK 6222 User Manual...
  • Page 15 Preface Ordering Information The following provides ordering information for VTC 6222 and nROK 6222. ▪ VTC 6222-C4S (P/N: 10V00622200X0) Intel Atom processor E3950 up to 2.0GHz CPU, 4GB DDR3L SO-DIMM, ® DC input 9~48 VDC, 1 x VGA, 2 x HDMI, 1 x LAN, 4 x PoE, 2 x RS-232, 1 x RS-422/485, 8 x GPIO, 1 x USB 3.0, 2 x USB 2.0...

  • Page 16: Chapter 1: Product Introduction

    Power SD & SIM Card Button Indicators USB 3.0 Slot Cover USB 2.0 SSD/HDD SSD/HDD Multi Port Antenna GPS Antenna Connector Holes Connector Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved. VTC 6222 and nROK 6222 User Manual...

  • Page 17: Overview

    ▪ Built-in u-blox-M8N GPS interface. Equipped with intelligent power management, VTC 6222 can be waked on by ignition, RTC timer or SMS message remotely. VTC 6222 ▪ Built-in CAN Bus 2.0B supports 4 x 802.3at/3af (max. 60W) PoE ports to connect with IP cameras.

  • Page 18: Vtc 6222 Hardware Specifications

    ▪ 1 x Line-out ▪ 1 x Default U-blox NEO-M8N GNSS for GPS/Glonass/QZSS/Galileo/Beidou ▪ 1 x DB15 (DIO) ▪ G Sensor (3-axis, 10-bit resolution) Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved. VTC 6222 and nROK 6222 User Manual...
  • Page 19 ▪ Windows 10/Linux ▪ FCC Class A ▪ E13 mark Dimensions ▪ 260mm (W) x 196mm (D) x 66.5mm (H) Weight ▪ 3.2kg Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved. VTC 6222 and nROK 6222 User Manual...

  • Page 20: Nrok 6222 Physical Features

    Antenna Button Indicators USB 3.0 Slot Cover Hole SSD/HDD M8 (6-pin) SSD/HDD USB 2.0 Multi Port Audio Connector Connector Antenna Antenna Hole Hole Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved. VTC 6222 and nROK 6222 User Manual...

  • Page 21: Overview

    ▪ 1 x USB DOM to run OS ▪ 1 x SD card for exporting and backing up data ▪ Optional power isolation kit support Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved. VTC 6222 and nROK 6222 User Manual...

  • Page 22: Nrok 6222 Hardware Specifications

    ▪ 1 x Default U-blox NEO-M8N GNSS for GPS/Glonass/QZSS/Galileo/Beidou ▪ 1 x DB9 full RS-232 (isolation) ▪ G Sensor (3-axis, 10-bit resolution) ▪ 3 x SMA antennas Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved. VTC 6222 and nROK 6222 User Manual...
  • Page 23 – Environment EN 60068-2-1, EN 60068-2-2, EN 60068-2-30 – Shock and vibration IEC 61373 Class B – Protective coating class PC1 (PC2, by request) ▪ EN 45545-2:2013+A1:2015 (PCB) Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved. VTC 6222 and nROK 6222 User Manual...

  • Page 24: Connector Numbering

    2 of the manual. nROK 6222 Front View VTC 6222 Front View           Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved. VTC 6222 and nROK 6222 User Manual...

  • Page 25: Nrok 6222 Rear View

    Chapter 1: Product Introduction nROK 6222 Rear View VTC 6222 Rear View Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved. VTC 6222 and nROK 6222 User Manual...

  • Page 26: Chapter 2: External Connectors Pinout Description

    Connector number: 1 Connector Number: 2 LED Color Description Definition Power failure Open Normal (Default) Blue Power on and ready Short Reset Power off Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved. VTC 6222 and nROK 6222 User Manual...

  • Page 27: Sata/Lan Led Indicators

    LED Behavior LED Behavior Blinking/On (Green): LAN activity/access WWAN On (Yellow): WWAN active SATA Blinking (Yellow): Storage access WLAN On (Yellow): WLAN active Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved. VTC 6222 and nROK 6222 User Manual...

  • Page 28: Poe Lan Led Indicators

    On (Green): PoE LAN2 active User programmable LED (Red) On (Green): PoE LAN3 active User programmable LED (Red) On (Green): PoE LAN4 active User programmable LED (Red) Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved. VTC 6222 and nROK 6222 User Manual...

  • Page 29: Hdmi Connector

    Definition Definition Definition Definition HDMI_TX2P_L USB_5V USB2.0_DATA- HDMI_TX2N_L HDMI_TX1P_L USB2.0_DATA+ HDMI_TX1N_L USB3.0_RX_N USB3.0_RX_P HDMI_TX0P_L USB3.0_TX_N HDMI_TX0N_L HDMI_CLK_P_L USB3.0_TX_P HDMI_CLK_N_L HDMI_SCL HDMI_SDA HDMI_P5V HDMI_HPD Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved. VTC 6222 and nROK 6222 User Manual...

  • Page 30: Hdmi Connector

    Definition Definition Definition HDMI_TX2P_L UIM_PWR HDMI_TX2N_L HDMI_TX1P_L UIM_RST UIM_DAT HDMI_TX1N_L UIM_CLK HDMI_TX0P_L HDMI_TX0N_L HDMI_CLK_P_L HDMI_CLK_N_L HDMI_SCL HDMI_SDA Note: SIM4-1/4-2 (BOM optional) HDMI_P5V HDMI_HPD Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved. VTC 6222 and nROK 6222 User Manual...

  • Page 31: Sd Card Slot

    Definition Definition Definition Definition SD_DATA3 SD_CMD MIC_JDETECT SD_VDD (3.3V) MIC_L LINE OUT_R SD_CLK LINE OUT_ JDETECT LINE OUT_L SD_DATA0 SD_DATA1 SD_DATA2 SD_WP SD_CD Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved. VTC 6222 and nROK 6222 User Manual...

  • Page 32: Mic-In Connector

    Chapter 2: External Connectors Pinout Description Mic-in Connector Line-out2 Connector Connector Number: 9 Connector Number: 10 Definition Definition Definition Definition MIC1_R MIC_JD SURR OUT_R SURR_JD MIC1_L SURR OUT_L Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved. VTC 6222 and nROK 6222 User Manual...

  • Page 33: M12 Usb 2.0 Connector (Nrok 6222)

    Connector Number: 12 Definition Definition Definition Definition USB1_N USB1_P LAN_MDI0P LAN_MDI0N USB1_VCC5 USB1_GND LAN_MDI1P LAN_MDI1N USB2_N USB2_P LAN_MDI2P LAN_MDI2N USB2_VCC5 USB2_GND LAN_MDI3P LAN_MDI3N Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved. VTC 6222 and nROK 6222 User Manual...

  • Page 34: M12 Poe Lan Connectors (Nrok 6222)

    M12 PoE LAN Connectors (nROK 6222) COM Port Connector Number: 13 Connector Number: 14 Definition Definition Definition Definition POE_LAN(4-1)_MDI0P POE_LAN(4-1)_MDI0N POE_LAN(4-1)_MDI1P POE_LAN(4-1)_MDI1N POE_LAN(4-1)_MDI2P POE_LAN(4-1)_MDI2N POE_LAN(4-1)_MDI3P POE_LAN(4-1)_MDI3N Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved. VTC 6222 and nROK 6222 User Manual...

  • Page 35: Multi Port

    VGA_RED VGA_GREEN RS232_TX RS485_TX- VGA_BLUE CH7517_SPC_R RS485_TX+ CAN_L ISO_GND ISO_GND RS422_TX- RS422_TX+ VGA_+5V CANISO_GND CH7517_SPD_R VGA_DATA DC 12V VGA_HS VGA_VS DC 12V VGA_CLK Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved. VTC 6222 and nROK 6222 User Manual...

  • Page 36: Dio

    Connector Number: 18 Definition Definition Definition Definition GPI 1 GPI 2 GPI 3 GPI 4 GPO 1 GPO 2 IGNITION GPO 3 GPO 4 VIN-GPIO Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved. VTC 6222 and nROK 6222 User Manual...

  • Page 37: Line-Out1 Connector (Vtc 6222)

    USB 2.0 Ports (VTC 6222) Connector Number: 19 Connector Number: 20 Definition Definition Definition Definition FRONT OUT_R FRONT_JD USB_5V DATA- FRONT OUT_L DATA+ Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved. VTC 6222 and nROK 6222 User Manual...

  • Page 38: Lan Port (Vtc 6222)

    Connector number: 22 Definition Definition Definition Definition LAN_MDI0P LAN_MDI0N POE_LAN(4-1)_MDI0P POE_LAN(4-1)_MDI0N LAN_MDI1P LAN_MDI2P POE_LAN(4-1)_MDI1P POE_LAN(4-1)_MDI2P LAN_MDI2N LAN_MDI1N POE_LAN(4-1)_MDI2N POE_LAN(4-1)_MDI1N LAN_MDI3P LAN_MDI3N POE_LAN(4-1)_MDI3P POE_LAN(4-1)_MDI3N Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved. VTC 6222 and nROK 6222 User Manual...

  • Page 39: Dc Input 9V-48V (Vtc 6222)

    Chapter 2: External Connectors Pinout Description DC Input 9V-48V (VTC 6222) Connector Number: 23 Definition IGNITION Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved. VTC 6222 and nROK 6222 User Manual...

  • Page 40: Chapter 3: Jumpers And Connectors

    Chapter 3: Jumpers and Connectors 3: J haPter umPers and onneCtors This chapter describes how to set the jumpers on the VTC 6222 and nROK dry environments. A grounding strap is warranted whenever danger of 6222 motherboard. static electricity exists. Before You Begin Precautions ▪...

  • Page 41: Jumper Settings

    (on) and open (off). Two-Pin Jumpers: Open (Left) and Short (Right) Three-Pin Jumpers: Pins 1 and 2 are Short Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved. VTC 6222 and nROK 6222 User Manual...

  • Page 42: Vtc 6222 And Nrok 6222 Connector Specification & Jumper Setting

    VTC 6222 and nROK 6222 Connector Specification & Jumper Setting VTC 6222 and nROK 6222 Carrier Board Placement The figure below is the carrier board used in the VTC 6222 system. It shows the locations of the jumpers and connectors. CN15...

  • Page 43: Jumper And Dip Switch Settings

    GPO4 Pull High (Default) Voltage by Vin 8-10 Short GPI4 Activity Low (Default) Voltage by Vin 10-12 Short GPO4 Float 10-12 Short GPI4 Activity High Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved. VTC 6222 and nROK 6222 User Manual...

  • Page 44: Input Voltage Selection Switch

    1 ON, 2 ON RS422/RS485 Terminator Resistor (Default) 1 OFF, 2 ON 1 OFF, 2 OFF RS422/RS485 No Terminator Resistor 1 ON, 2 ON 9-36V (Default) Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved. VTC 6222 and nROK 6222 User Manual...

  • Page 45: Can Terminator Resistor Selection Switch

    1 OFF, 2 OFF ME Normal (Default) 1 OFF, 2 OFF CAN No Terminator Resistor RTC Clear CMOS 1 ON, 2 ON ME Clear Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved. VTC 6222 and nROK 6222 User Manual...

  • Page 46: Connectors

    * The audio header on J7 is co-layed with the audio jacks on CN3 and CN8. Default is CN3 and CN8. * The audio jacks on CN2, CN3 and CN8 are only available on VTC 6222. Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved.

  • Page 47: Usb 2.0 Dom

    Connector type: Standard Serial ATA 7P (1.27mm, SATA-M-180) Connector location: JP4 Connector location: CN15 and CN16 Definition Definition Definition Definition USB_5V SATA_TXP(1-0) DATA- SATA_TXN(1-0) DATA+ SATA_RXN(1-0) SATA_RXP(1-0) Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved. VTC 6222 and nROK 6222 User Manual...

  • Page 48: Sata Power Connectors

    Connector type: 1x2 2-pin header, 2.5mm pitch Connector type: 1x2 2-pin header, 1.25mm pitch Connector location: J10 and J11 Connector location: J1 Definition Definition VCC5 GPS_RTC Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved. VTC 6222 and nROK 6222 User Manual...

  • Page 49: Rtc Battery Connector

    Connector type: 1x2 2-pin header, 1.25mm pitch Connector type: 1x2 2-pin header, 2.5mm pitch Connector location: J12 Connector location: J15 Definition Definition ISO_54V_POE RTC_BAT PSE_ISOGND Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved. VTC 6222 and nROK 6222 User Manual...

  • Page 50: Rs232/Rs422/Rs485/Can Connector

    VIN_GPIO (By VIN) CANISO_GND CANISO_GND CON_GPO4 CON_GPO3 CANISO_GND ISO_GND CON_GPO2 CON_GPO1 ISO_GND ISO_GND CON_GPI4 CON_GPI3 ISO_GND ISO_GND CON_GPI2 CON_GPI1 RS422_TX+ RS422_TX- RS485_TX+ RS485_TX- RS232_RXD RS232_TXD Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved. VTC 6222 and nROK 6222 User Manual...

  • Page 51: Dc 12V Out Connector

    Connector type: 1x10 10-pin header, 1.0mm pitch Connector location: J4 Connector location: J3 Definition Definition Definition 12V_OUT SP_CTS_1 SP_DSR_1 SP_DTR_1 SP_RXD_1 COM1_RI#_PW SP_RTS_1 SP_TXD_1 SP_DCD_1 Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved. VTC 6222 and nROK 6222 User Manual...

  • Page 52: Internal Vga Connector

    Connector location: J8 SIM2 Connector location: CN13 Definition Definition Definition Definition VGA_+5V SIM_PWR SIM _RST VGA_CLK VGA_DATA SIM _CLK VGA_VS VGA_HS SIM_DAT VGA_BLUE VGS_GREEN VGA_RED Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved. VTC 6222 and nROK 6222 User Manual...

  • Page 53: Full Size Mini-Pcie Socket (Usb 2.0) For Lte Module With 2 X External Sim

    USB3.0_TX1P UIM1_DATA USB_0N VREF_PCIE UIM1_CLK USB_0P UIM2_PWR/NC UIM1_ RESET V3.5G_P_A (+3.3V) V3.5G_P_A (+3.3V) 3.5G_LED#_A UIM2_CLK/NC UIM2_DATA/NC 3.5G_DIS#_A 3.5G_RST#_A USB3.0_RX1N V3.5G_P_A (+3.3V) USB3.0_RX1P V3.5G_P_A(+3.3V) Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved. VTC 6222 and nROK 6222 User Manual...

  • Page 54: Full Size Mini-Pcie Socket (Usb 2.0, Pcie 2.0)

    Definition PCIE_WAKE#1 +V3.3_MINI_1 +V1.5S_MINI_1 +V1.5S_MINI_1 PCIE_TXN1 PCIE_CLKREQ1# PCIE_TXP1 USB_3N PCIE_CLKN1 USB_3P PCIE_CLKP1 +V3.3_MINI_1 +V3.3_MINI_1 WLAN_LED#_A WIFI_DIS#_a PCIE_RST# +V1.5S_MINI_1 PCIE_RXN1 +V3.3_MINI_1 PCIE_RXP1 BT_DIS#_A +V3.3_MINI_1 Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved. VTC 6222 and nROK 6222 User Manual...

  • Page 55: Half Size Mini-Pcie Socket (Usb 2.0, Pcie 2.0)

    Definition PCIE_WAKE#2 +V3.3_MINI_2 +V1.5S_MINI_2 +V1.5S_MINI_2 PCIE_TXN2 PCIE_CLKREQ2# PCIE_TXP2 USB_4N PCIE_CLKN2 USB_4P PCIE_CLKP2 +V3.3_MINI_2 +V3.3_MINI_2 WLAN_LED#_B WIFI_DIS#_B PCIE_RST# +V1.5S_MINI_2 PCIE_RXN2 +V3.3_MINI_2 PCIE_RXP2 BT_DIS#_B +V3.3_MINI_2 Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved. VTC 6222 and nROK 6222 User Manual...

  • Page 56: Chapter 4: System Setup

    Remove these screws and put them in a safe place for later use. With the screws removed, pull up the bottom cover to remove it. Bottom View Front View Rear View Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved. VTC 6222 and nROK 6222 User Manual...

  • Page 57: Installing A Ssd/Hdd Drive

    SATA Data/Power Connector Thumb Screws Mounting Screws Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved. VTC 6222 and nROK 6222 User Manual...
  • Page 58 Chapter 4: System Setup 3. Insert the drive bay back in the SSD/HDD slot and tighten the thumb screws to secure it in place. Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved. VTC 6222 and nROK 6222 User Manual...

  • Page 59: Inserting Sim Cards

    1. Remove the SIM/SD card cover on the front panel and insert the SIM cards. Please take note of the SIM card installation direction as shown in the following picture. Installation direction for SIM slot Mini-SIM Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved. VTC 6222 and nROK 6222 User Manual...

  • Page 60: Inserting An Sd Card

    1. Remove the SIM/SD card cover on the front panel and insert the SD card. Please take note of the SD card installation direction as shown in the following picture. Installation direction for SD card Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved. VTC 6222 and nROK 6222 User Manual...

  • Page 61: Installing A Wlan Module

    Then fasten a screw into the mounting hole to secure the module. fasten a screw into the mounting hole to secure the module. Mounting Mounting Screw Screw Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved. VTC 6222 and nROK 6222 User Manual...

  • Page 62: Installing A So-Dimm Memory Module

    Apply firm even pressure to each end of the module until it slips down into the socket. The contact fingers on the edge of the module will almost completely disappear inside the socket. Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved. VTC 6222 and nROK 6222 User Manual...

  • Page 63: Appendix A: Software Demo Utility For I/O Ports Of Function Control

    NEXCOM’s software demo utility enables users to test and control different I/O port functions on VTC 6222 and nROK 6222. This document shows how to use the utility. There are also source code files of the utility in the CD. Users can refer to the source codes to develop their applications.
  • Page 64 ▪ If the setting is 9V~48V: 9V~48V is shown. 1.3 Low Battery Voltage Protection Configures the Low Battery Voltage Protection Startup/Shutdown voltage level during 12V/24V. Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved. VTC 6222 and nROK 6222 User Manual...

  • Page 65: System 2

    Enables or disables the Watchdog Timer function. There are several selections of time. The timer of Watchdog Timer can also be cleared by the Set WDT button. Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved. VTC 6222 and nROK 6222 User Manual...

  • Page 66: I/O

    3. I/O 3.1 GPO Configures GPO as high voltage level or low voltage level. 3.2 GPI Reads the status (voltage level) of GPI. Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved. VTC 6222 and nROK 6222 User Manual...
  • Page 67 Enables or disables the Wake On LAN function. 3.4 External 12V Enables or disables the External 12V function. 3.5 Programmable LED Defines the Programmable LED as on or off. Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved. VTC 6222 and nROK 6222 User Manual...

  • Page 68: Module

    Selects the SIM card setting on WWAN1 is from SIM CARD1 or SIM CARD2. Click the Select SIM Card button after configuration to apply the settings. Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved. VTC 6222 and nROK 6222 User Manual...
  • Page 69 Enables or disables the BT1 (CN9) function. Enables or disables the BT2 (CN10) function. The setting can also be cleared by the Set button. Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved. VTC 6222 and nROK 6222 User Manual...

  • Page 70: G-Sensor

    Selects the registers inside G-Sensor to read or write the data. 5.2 Register Table Shows the value of all registers in G-Sensor, once the Refresh Button is pressed. Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved. VTC 6222 and nROK 6222 User Manual...

  • Page 71: Poe

    Power On Button: Enables PoE power output. Power Off Button: Disables PoE power output. 6.2 Total Output (W) Shows the total power output of all PoE ports. Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved. VTC 6222 and nROK 6222 User Manual...

  • Page 72: Event

    The Event tab shows the following alarm messages: 1. Over voltage alarm 2. Lower voltage alarm 3. Over temperature alarm 4. Lower temperature alarm Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved. VTC 6222 and nROK 6222 User Manual...

  • Page 73: Ublox-Neo M8 Overview

    Qualification tests are performed as stipulated in the ISO16750 lowest noise figure (NEO-M8N/Q) standard: “Road vehicles – Environmental conditions and testing for electrical and electronic equipment”. Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved. VTC 6222 and nROK 6222 User Manual...
  • Page 74 1 EXTINT input for Wakeup Timepulse Configurable 0.25 Hz to 10 MHz Protocols NMEA, UBX binary, RTCM COM Port for GPS: COM 4 Baud Rate: 9600 Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved. VTC 6222 and nROK 6222 User Manual...

  • Page 75: Appendix C: Signal Connection Of Mcu Di/Do

    GPO3 Pull High (Default) Voltage by Vin 4-6 Short GPO3 Float 10-8 Short GPO4 Pull High (Default) Voltage by Vin 10-12 Short GPO4 Float Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved. VTC 6222 and nROK 6222 User Manual...

  • Page 76: Gpi Pull High Selection (Jp6)

    GPI3 Activity High/External Pull High GPI4 Activity Low/Internal Pull High (Default) 8-10 Short Voltage by Vin 10-12 Short GPI4 Activity High/External Pull High Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved. VTC 6222 and nROK 6222 User Manual...

  • Page 77: Digital Input

    CON_GPI5 CON_GPO1 GPIO_PW GPIO_GND GPIO_GND External Port Switch Register ON (Short) OFF (Open) HIGH External Port Switch Register ON (Short) OFF (Open) OPEN Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved. VTC 6222 and nROK 6222 User Manual...

  • Page 78: Digital Output

    CON_GPI3 CON_GPI3 CON_GPI4 CON_GPI4 CON_GPI5 CON_GPI5 CON_GPO1 CON_GPO1 External power GPIO_GND GPIO_PW GPIO_PW GPIO_GND GPIO_GND GPIO_GND Resistor Port Port Register Register HIGH HIGH Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved. VTC 6222 and nROK 6222 User Manual...

  • Page 79: Appendix D: Vehicle Power Management Setup

    F4: Save & Exit ESC: Exit ESC: Exit Version 2.18.1263. Copyright (C) 2019 American Megatrends, Inc. Version 2.18.1263. Copyright (C) 2019 American Megatrends, Inc. Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved. VTC 6222 and nROK 6222 User Manual...
  • Page 80 F4: Save & Exit ESC: Exit ESC: Exit Version 2.18.1263. Copyright (C) 2019 American Megatrends, Inc. Version 2.18.1263. Copyright (C) 2019 American Megatrends, Inc. Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved. VTC 6222 and nROK 6222 User Manual...

  • Page 81: Power-On Delay Setting

    F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.18.1263. Copyright (C) 2019 American Megatrends, Inc. Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved. VTC 6222 and nROK 6222 User Manual...
  • Page 82 F4: Save & Exit ESC: Exit ESC: Exit Version 2.18.1263. Copyright (C) 2019 American Megatrends, Inc. Version 2.18.1263. Copyright (C) 2019 American Megatrends, Inc. Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved. VTC 6222 and nROK 6222 User Manual...

  • Page 83: Power-Off Delay Setting

    F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.18.1263. Copyright (C) 2019 American Megatrends, Inc. Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved. VTC 6222 and nROK 6222 User Manual...
  • Page 84 F4: Save & Exit ESC: Exit ESC: Exit Version 2.18.1263. Copyright (C) 2019 American Megatrends, Inc. Version 2.18.1263. Copyright (C) 2019 American Megatrends, Inc. Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved. VTC 6222 and nROK 6222 User Manual...

  • Page 85: Appendix E: Pin Definition For The Multi Port Cable

    The following tables in this appendix list the pin signals of the P2 connector and its corresponding pin signals to the output connectors. nROK 6222 Front View Audio Port Cable Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved. VTC 6222 and nROK 6222 User Manual...

  • Page 86: P2 Connector Pinout

    Green (Line-out) Connector Connector location: P1 2 3 4 Definition Definition P2 Pin P1 Pin Definition FRONT_L FRONT_JD FRONT_L FRONT_R MIC_L FRONT_JD MIC_JD AGND FRONT_R Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved. VTC 6222 and nROK 6222 User Manual...

  • Page 87: Pink (Mic-In) Connector

    Appendix E: Pin Definition for the Multi Port Cable Pink (Mic-in) Connector Connector location: P3 P2 Pin P3 Pin Definition MIC_L MIC_JD AGND Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved. VTC 6222 and nROK 6222 User Manual...
  • Page 88 The following tables in this appendix list the pin signals of the CN1 connector and its corresponding pin signals to the output connectors. nROK 6222 Rear View USB Port Cable Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved. VTC 6222 and nROK 6222 User Manual...

  • Page 89: Cn1 Connector Pinout

    Appendix E: Pin Definition for the Multi Port Cable CN1 Connector Pinout CN2 and CN3 Connector Pinouts USB Connector Connector location: CN2 Definition Definition CN1 Pin CN2 Pin Definition Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved. VTC 6222 and nROK 6222 User Manual...

  • Page 90: Usb Connector

    Appendix E: Pin Definition for the Multi Port Cable USB Connector Connector location: CN3 CN1 Pin CN3 Pin Definition Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved. VTC 6222 and nROK 6222 User Manual...
  • Page 91 The following tables in this appendix list the pin signals of the P1 connector and its corresponding pin signals to the output connectors. nROK 6222 Rear View Multi Port Cable VTC 6222 Rear View Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved. VTC 6222 and nROK 6222 User Manual...

  • Page 92: P1 Connector Pinout

    Connector location: P2 Definition Definition P1 Pin P2 Pin Definition CAN_H RS232_RX CAN_H RS232_TX RS485_TX- CAN_L RS485_TX+ CAN_L CAN|ISO_GND ISO_GND ISO_GND RS422_TX- RS422_TX+ CAN|ISO_GND Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved. VTC 6222 and nROK 6222 User Manual...

  • Page 93: Rs232 Connector

    Connector location: P3 Connector location: P4 P1 Pin P3 Pin Definition P1 Pin P4 Pin Definition RS232_RX RS485_TX- RS232_TX RS485_TX+ ISO_GND ISO_GND RS422_TX- RS422_TX+ Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved. VTC 6222 and nROK 6222 User Manual...

  • Page 94: Dc Output Connector

    Appendix E: Pin Definition for the Multi Port Cable DC Output Connector Connector location: P5 P1 Pin P5 Pin Definition Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved. VTC 6222 and nROK 6222 User Manual...
  • Page 95 The following tables in this appendix list the pin signals of the P1 connector and its corresponding pin signals to the output connectors. DIO Port Cable nROK 6222 Rear View VTC 6222 Rear View Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved. VTC 6222 and nROK 6222 User Manual...

  • Page 96: P1 Connector Pinout

    Appendix E: Pin Definition for the Multi Port Cable P1 Connector Pinout Definition Definition GPI1 GPI2 GPI3 GPI4 GPO1 GPO2 GPO3 GPO4 VIN_GPIO Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved. VTC 6222 and nROK 6222 User Manual...
  • Page 97 75.12 Full State + Loading 2.15 77.4 1.63 78.24 12.76 153.12 6.21 149.04 Full State + Loading (+PoE x 4) 151.2 3.18 152.64 Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved. VTC 6222 and nROK 6222 User Manual...
  • Page 98 Full State IGNITION OFF 10mA 0.36 36V WWAN 10mA 0.36 14mA 0.67 48V WWAN 14mA 0.67 *WWAN: Enable wakeup function of WWAN module Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved. VTC 6222 and nROK 6222 User Manual...
