SER MGT Port
The SER MGT RJ-45 port, located on the back panel, provides the default connection
to the system console.

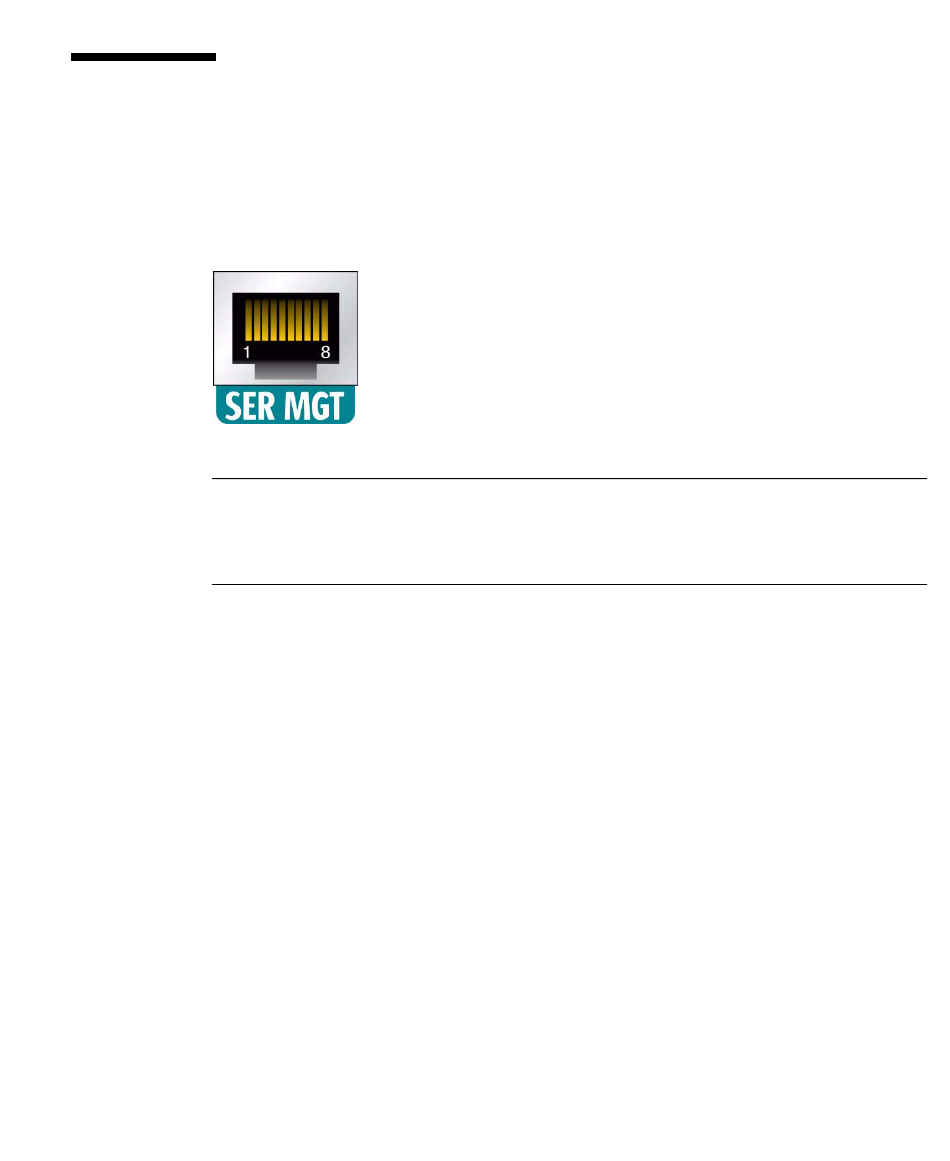

SER MGT Port
FIGURE:
Figure Legend
1
Clear to Send
2
Data Carrier Detect
3
Transmit Data
4
Ground
Related Information
"Rear Panel Connectors and Ports" on page 37
■
"Connect the SER MGT Cable" on page 39
■
"Connect a Terminal or Emulator to the SER MGT Port" on page 51
■
5
Ground
6
Receive Data
7
Data Terminal Ready
8
Ready to Send
Identifying the Server Ports
63
