SER MGT Port

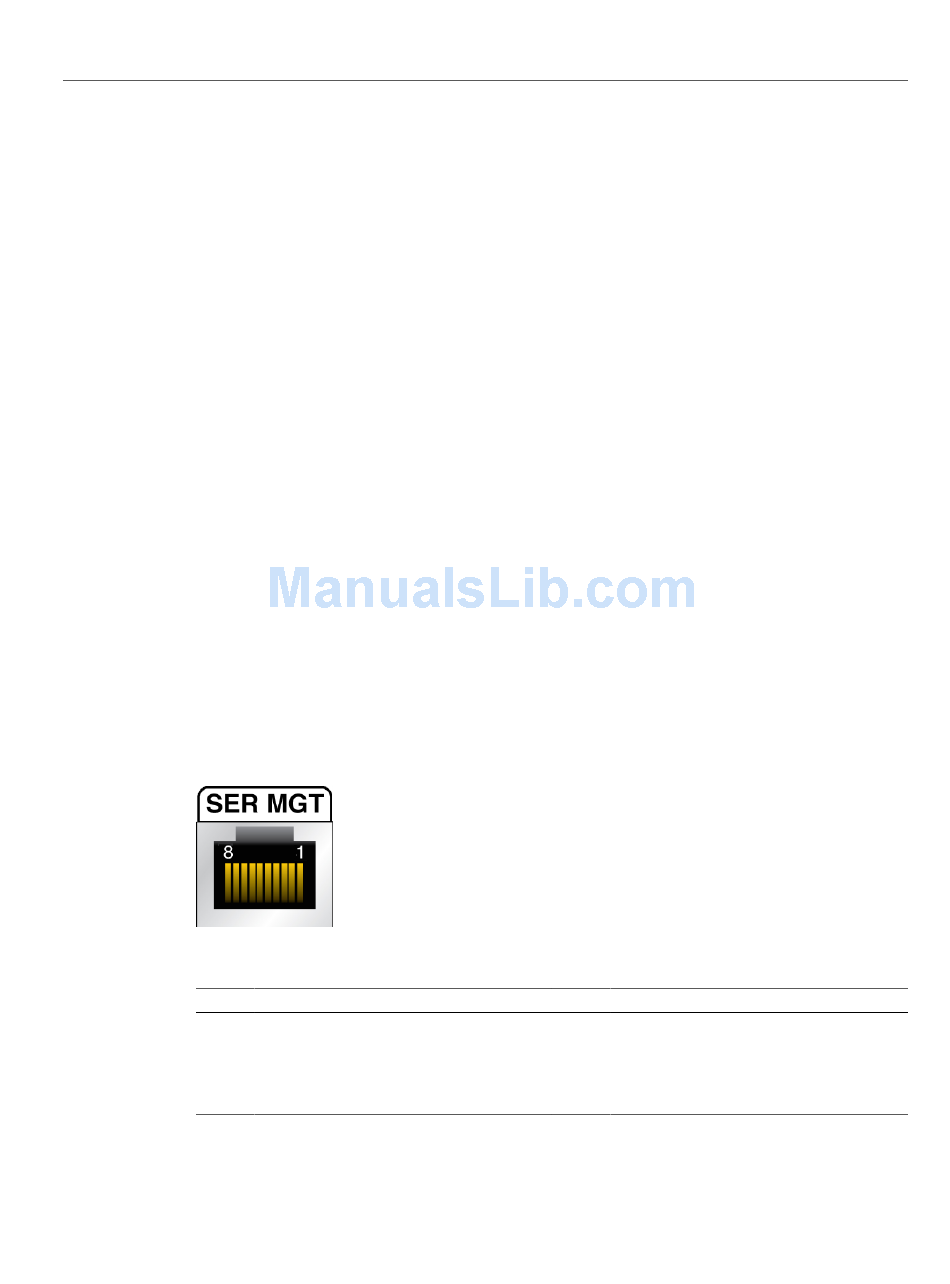

The SER MGT RJ-45 port, located on the rear panel, provides an TIA/EIA-232 serial Oracle/
Cisco standard connection to the SP. For DTE-to-DTE communications, you can use the
supplied RJ-45 to DB-9 crossover adapter with a standard RJ-45 cable to achieve the required
null modem configuration.
By default, this port is configured with these parameters:
8N1– eight data bits, no parity, one stop bit
■
9600 baud
■
Disable hardware flow control (CTS/RTS)
■
Disable software flow control (XON/XOFF)
■
Pin
1
2
3
4
66 Netra SPARC S7-2 Server Installation Guide • January 2017
Signal Description
Clear to Send
Data Carrier Detect
Transmit Data
Ground
Pin Signal Description
5 Ground
6 Receive Data
7 Data Terminal Ready
8 Ready to Send
