and "Rear Panel Components (Installation)" on page
You can connect and disconnect USB cables and peripheral devices while the server is running,
without affecting server operations.
Each USB 2.0 port supplies 5V output at 500 mA.
Each USB 3.0 port supplies 5V output at 900 mA.
You can connect up to 126 devices to each of the four USB controllers (two ports in
Note -
front, two ports in the rear), for a total of 504 USB devices per server.

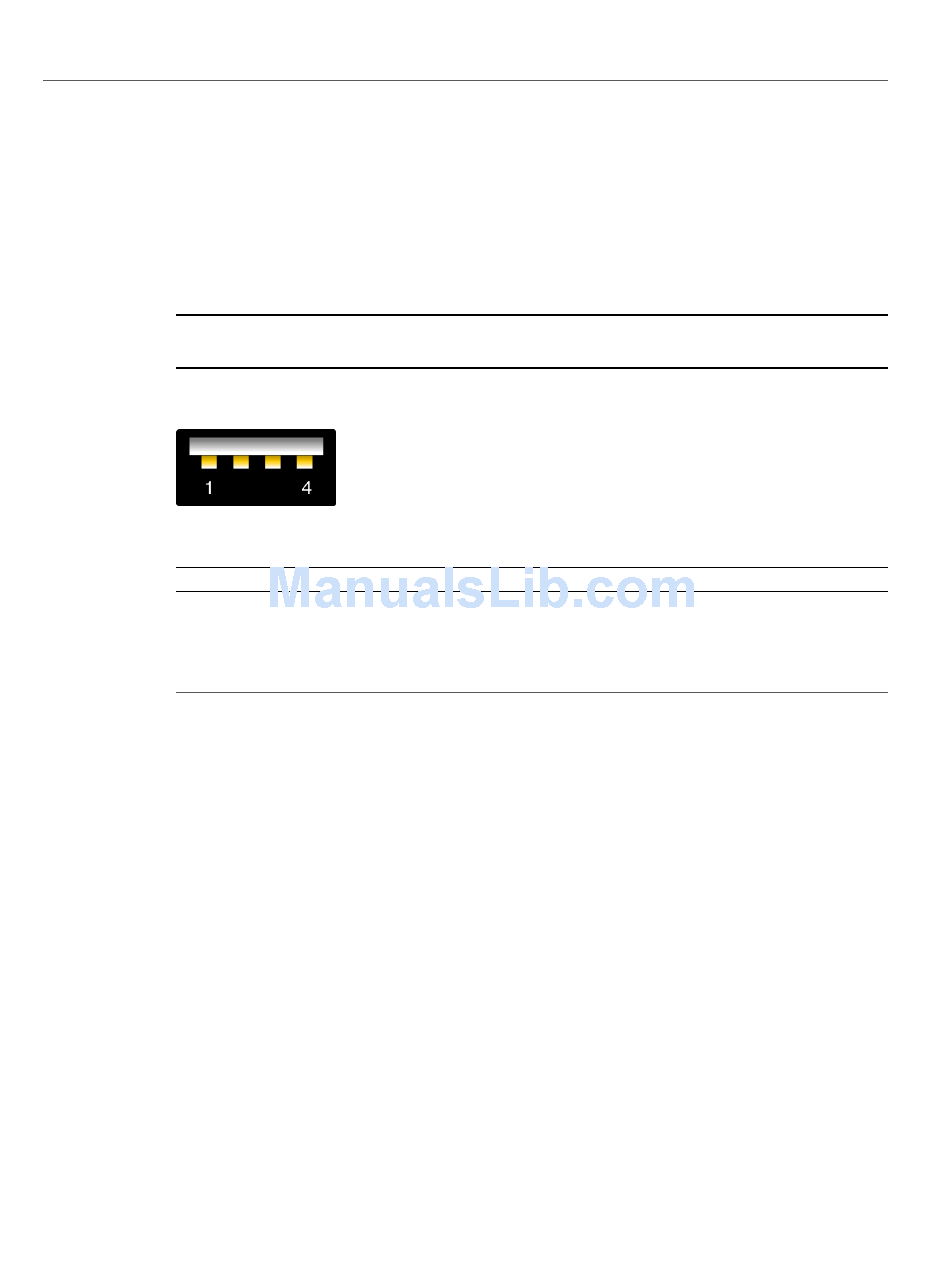

No. Description
1 +5V supply
2 Data –
3 Data +
4 Ground
Related Information
"Server Overview" on page 10
■
"Front Panel Components (Installation)" on page 12
■
"Rear Panel Components (Installation)" on page 13
■
"Cabling Requirements" on page 51
■

SER MGT Port

The SER MGT RJ-45 port, located on the rear panel, provides a TIA/EIA-232 serial Oracle/
Cisco standard connection to the SP. This port is the default connection to the Oracle ILOM SP.
For DTE to DTE communications, you can use the supplied RJ-45 to DB-9 crossover adapter
with a standard RJ-45 cable to achieve the required null modem configuration. See
Components (Installation)" on page
13. The USB ports support hot-plugging.
13.
Identifying Ports
"Rear Panel
Connecting Cables 53
