Identifying Ports

Identifying Ports
These topics provide connector descriptions and pinouts. See
(Installation)" on page 14
"SER MGT Port" on page 66
■
"NET MGT Port" on page 67
■
"10 Gigabit Ethernet Ports" on page 68
■
"USB Ports" on page 69
■
"Video Port" on page 70
■
Related Information
"Available Connections" on page 61
■
"Connecting Data and Management Cables" on page 64
■

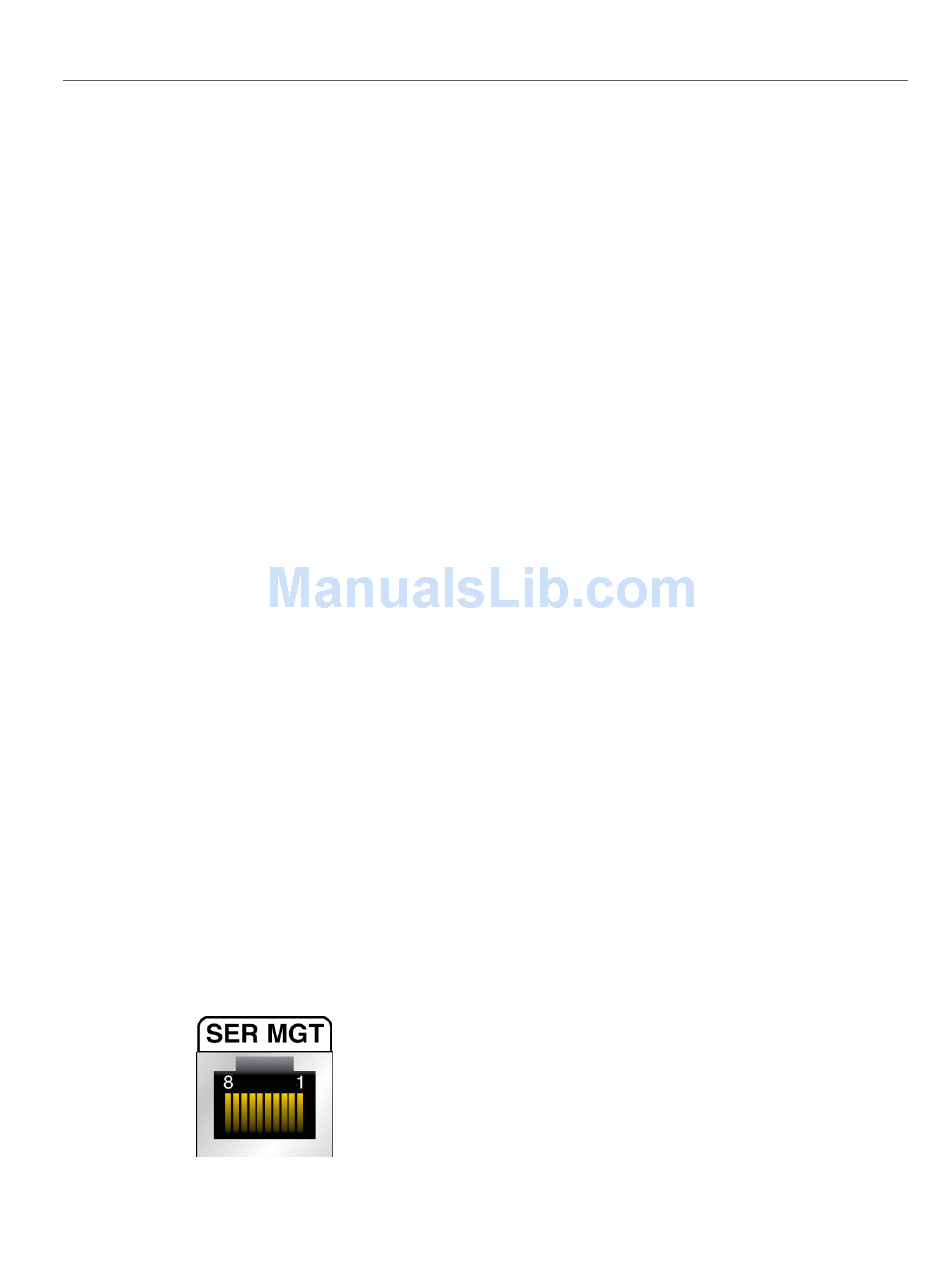

SER MGT Port

The SER MGT RJ-45 port, located on the rear panel, provides an TIA/EIA-232 serial Oracle/
Cisco standard connection to the SP. For DTE-to-DTE communications, you can use the
supplied RJ-45 to DB-9 crossover adapter with a standard RJ-45 cable to achieve the required
null modem configuration.
By default, this port is configured with these parameters:
8N1– eight data bits, no parity, one stop bit
■
9600 baud
■
Disable hardware flow control (CTS/RTS)
■
Disable software flow control (XON/XOFF)
■
66 Netra Server X5-2 Installation Guide • June 2016
for the locations of the ports.
"Rear Panel Components
