▼ Install Mounting Brackets
You must install the mounting brackets onto the server before you can rackmount the
server.
1. Position a mounting bracket against the chassis so that the slide rail lock is at
the server front, and the five keyhole openings on the mounting bracket are
aligned with the five locating pins on the side of the chassis.
Note – The mounting brackets are identical and can be installed on either side of the
chassis.
FIGURE:
2. With the heads of the five chassis locating pins protruding though the five
keyhole openings in the mounting bracket, pull the mounting bracket toward
the front of the chassis until the mounting bracket clip locks into place with an
audible click.
22
SPARC T3-2 Server Installation Guide • March 2012

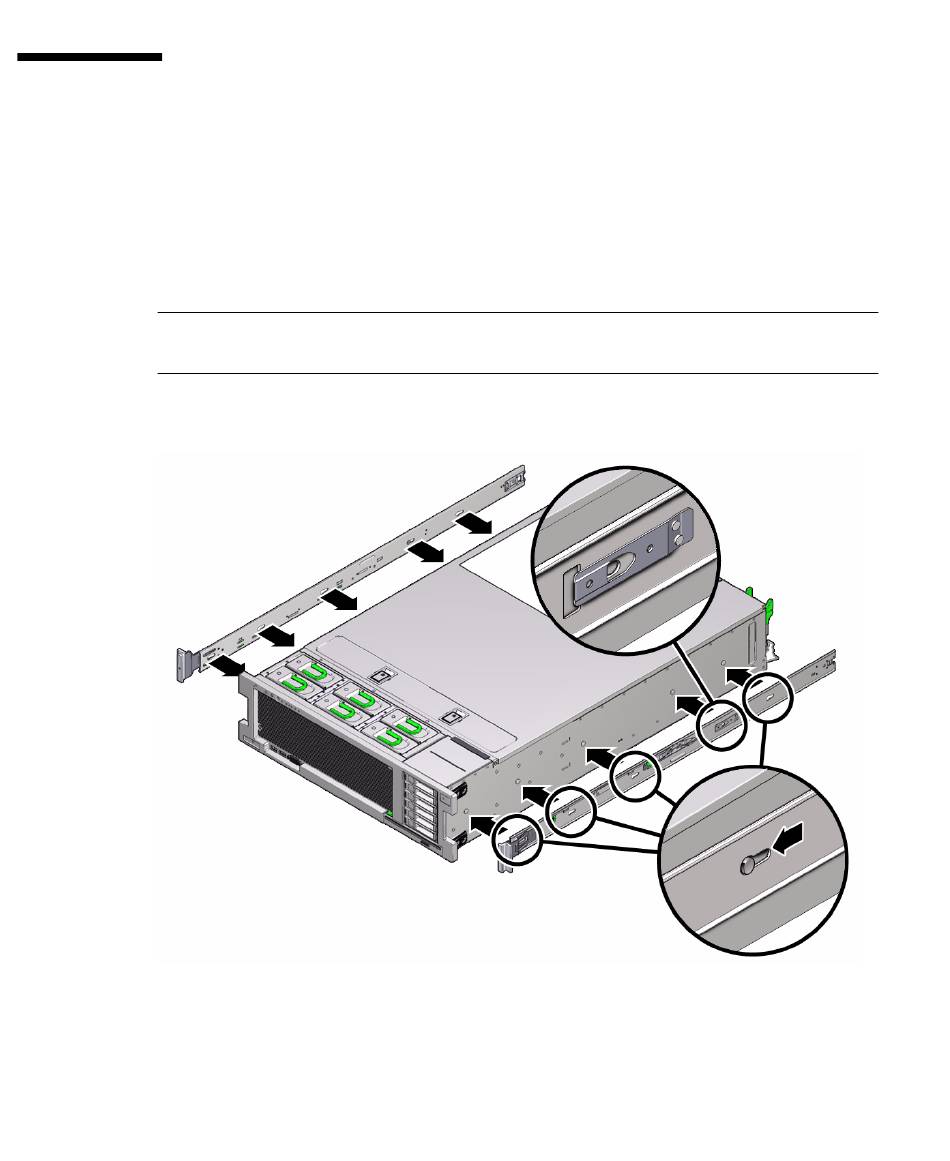

Aligning the Mounting Bracket With the Server Chassis
