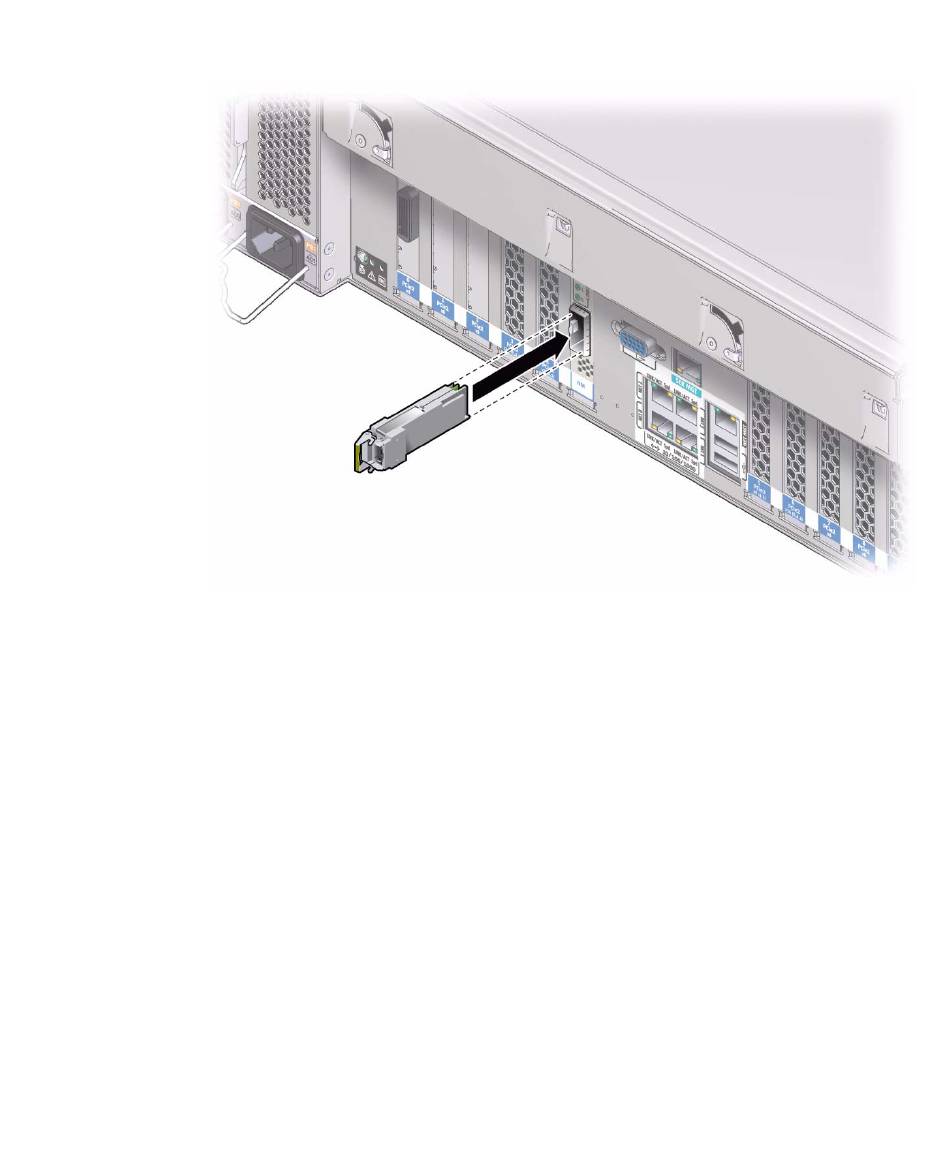

4. Align the transceiver module to the QSFP slot as shown in the following figure.
5. Holding the transceiver module by its edges, carefully slide the module into the
QSFP slot.
6. Applying even pressure to the top and bottom of the transceiver module, push
the module until it is firmly seated in the slot.
Connecting the Server Cables
43
