SAS Connectors

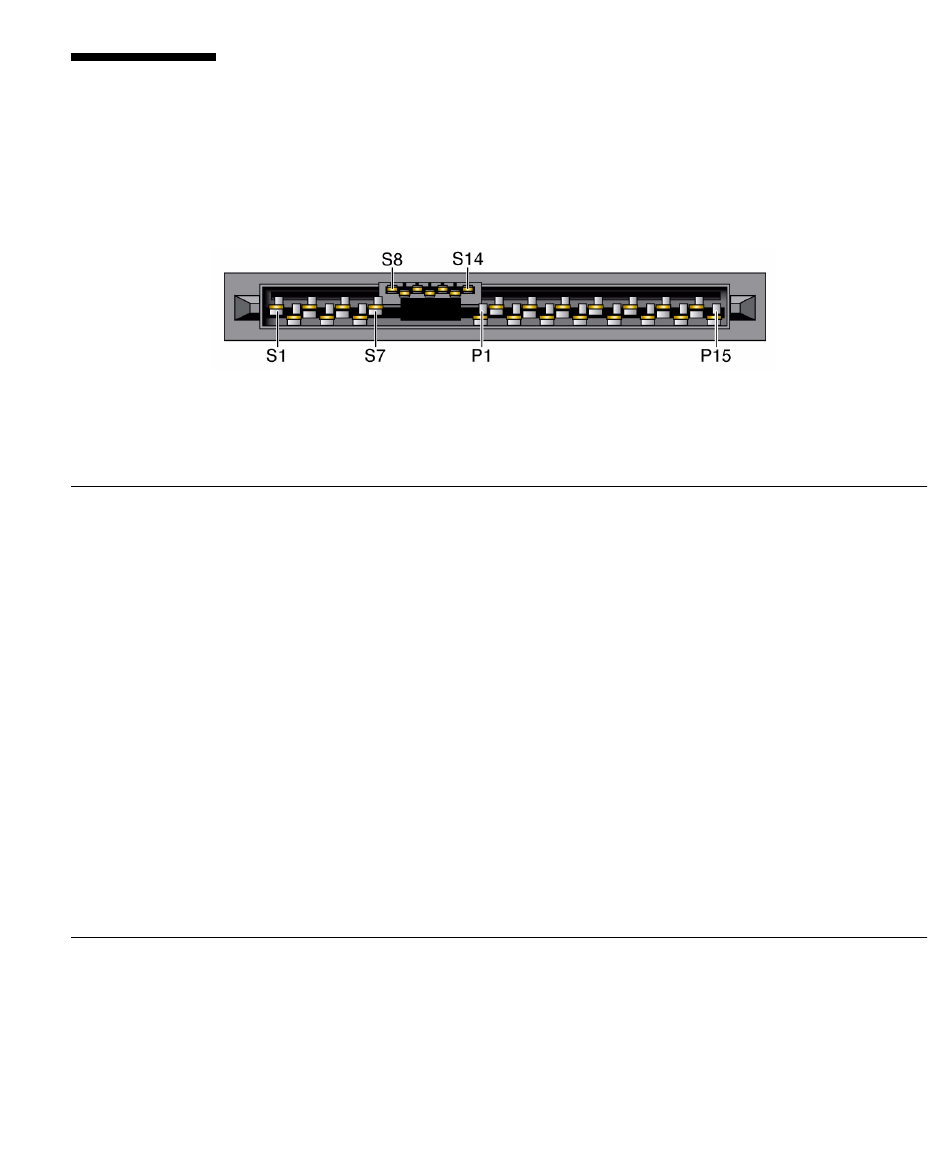

The six SAS connectors are located on the drive backplane inside the server.
FIGURE:
The following table lists the pinouts for the SAS connector.
SAS Connector Pinouts
TABLE:
Signal Segment
Back-side Signal
SAS Connector
S1 Gnd
S2 TX+
S3 TX-
S4 Gnd
S5 RX-
S6 RX+
S7 Gnd
S8 Gnd
S9
S10
S11 Gnd
S12
S13
S14 Gnd
Second mate
Transmit from PHY to hard drive
Second mate
Receive from hard drive to PHY
Second mate
Second mate
Second mate
Second mate
