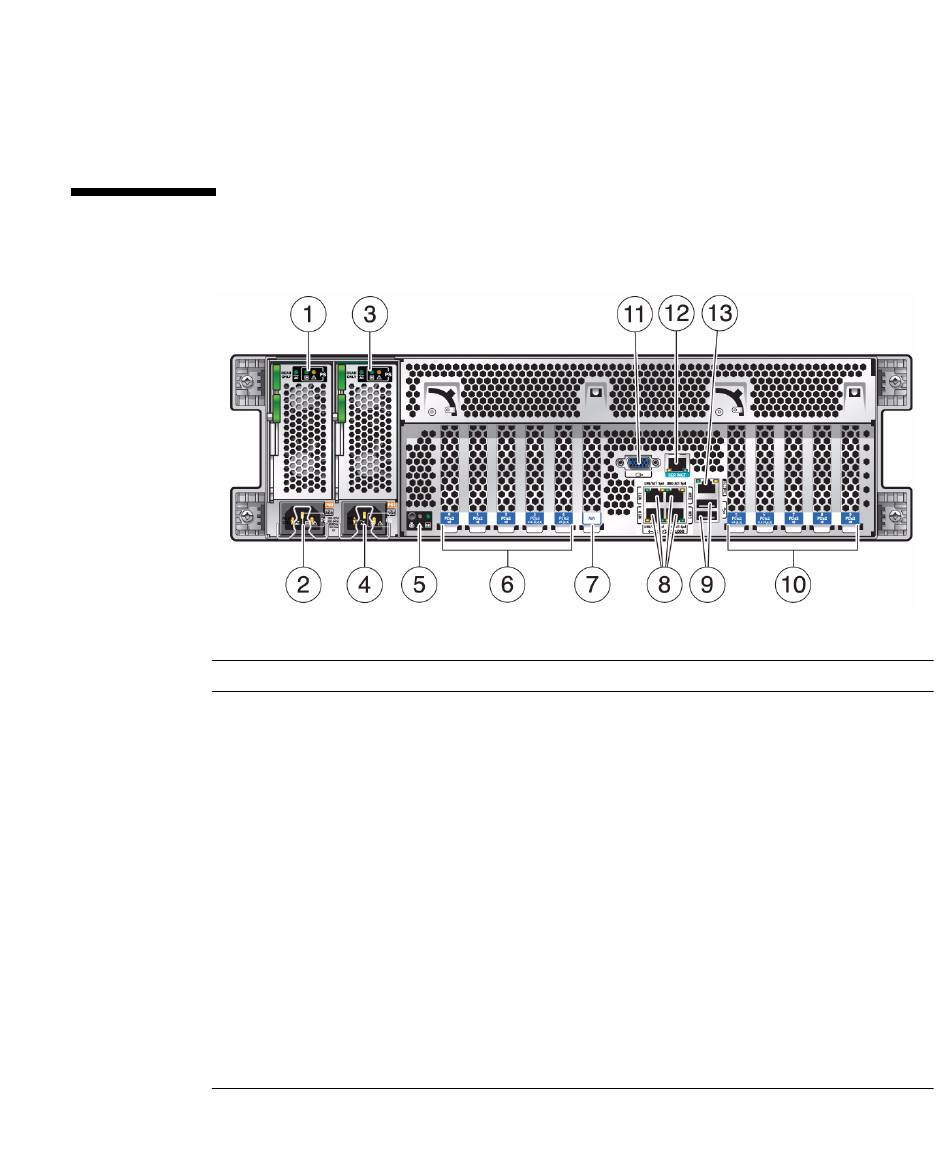

Back Panel Components

No. Description
1 Power supply unit 0 status indicator LEDs:
• Service Action Required: amber
• AC OK: green or amber
2 Power supply unit 0 AC inlet
3 Power supply unit 1 status indicator LEDs:
• Service Action Required: amber
• AC OK: green or amber
4 Power supply unit 1 AC inlet
5 System status LEDs:
• Power/OK: green
• Attention: amber
• Locate: white
6 PCIe2 card slots 0–4
7 Network module card slot
No. Description
8 Network 10/100/1000 ports:
NET0–NET3
9 USB 2.0 connectors (2)
10 PCIe card slots 5–9
11 DB-15 video connector
12 SP SER MGT RJ-45 serial port
13 SP NET MGT RJ-45 network port
