Video Ports
The server has two 15-pin VGA video ports, one port on the front and one on the
back of the server.

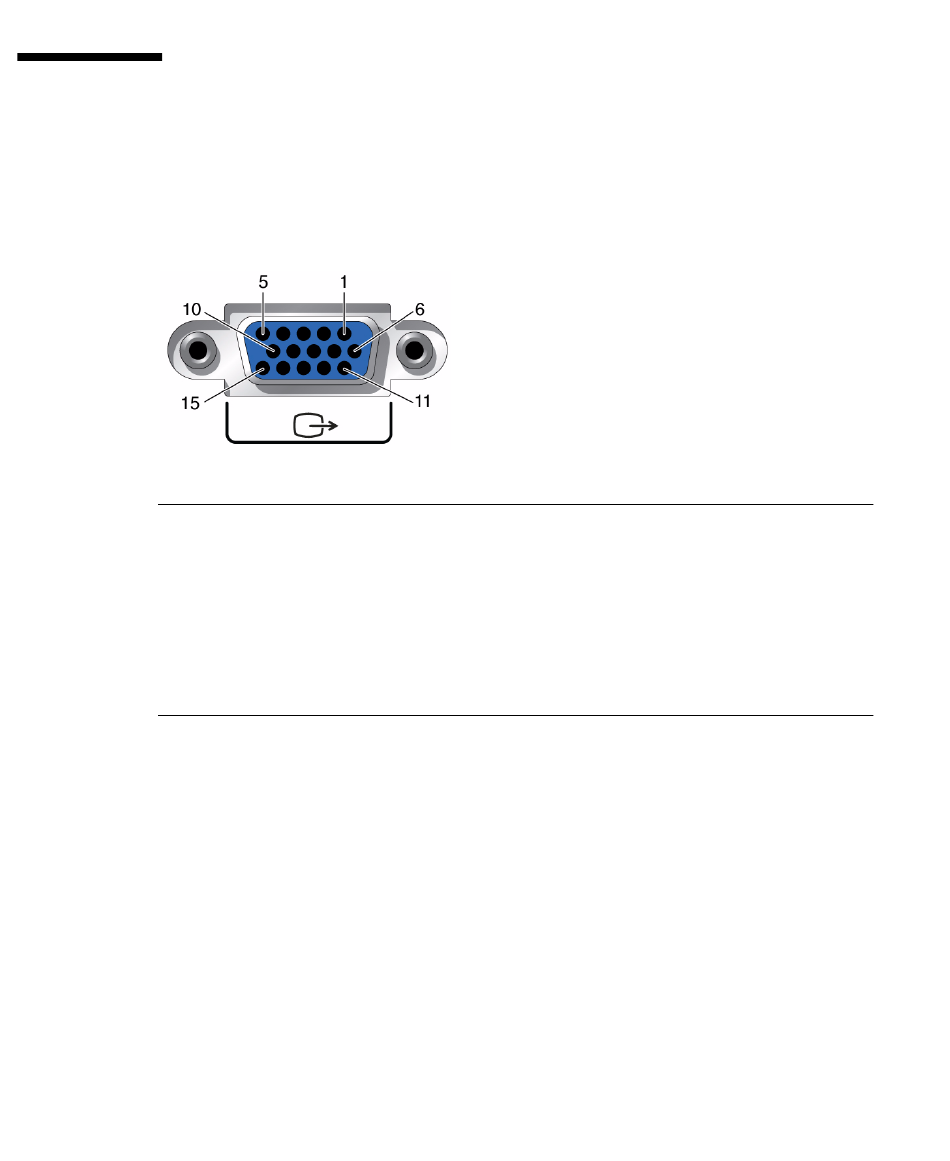

FIGURE:
Figure Legend
1
2
3
4
5
6
7
8
Related Information
"Rear Panel Connectors and Ports" on page 37
■
66
SPARC T3-2 Server Installation Guide • March 2012
Video Connector
Red Video
Green Video
Blue Video
Monitor ID - Bit 2 (Ground)
Ground
Red Ground
Green Ground
Blue Ground
9
+5V
10 Sync Ground
11 Monitor ID - Bit 0 (Ground)
12 VGA 12C Serial Data
13 Horizontal Sync
14 Vertical Sync
15 VGA 12C Serial Clock
