Diagnostics and troubleshooting
84
12.2 Diagnostic information via light emitting diodes
12.2.1

Transmitter

Various light emitting diodes (LEDs) on the main electronics module of the transmitter
provide information on device status.
LED
Power Off
Green
Link/Activity Orange
Flashing orange
Communication Flashing white
12.3

Diagnostic information in FieldCare

12.3.1

Diagnostic options

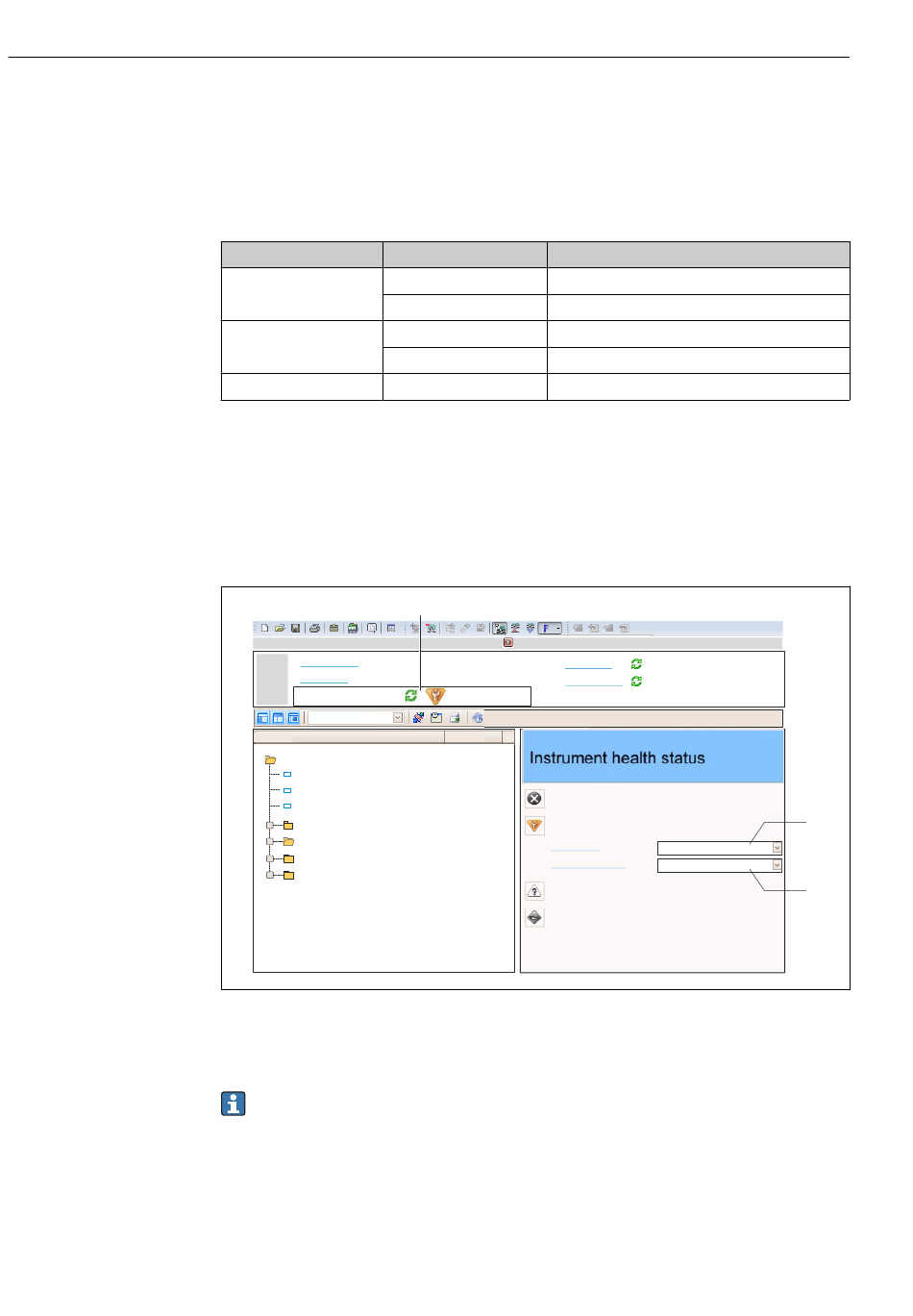

Any faults detected by the measuring device are displayed on the home page of the
operating tool once the connection has been established.
Xxxxxx/.../.../
Device name:
Xxxxxxx
Device tag:
Xxxxxxx
Status signal:
Xxxxxx
Diagnostics 1:
P
Remedy information:
P
Access status tooling:
P
+ Operation
+ Setup
+ Diagnostics
+ Expert
1 Status area with status signal
2 Diagnostic information →  85
3 Remedial measures with Service ID
Furthermore, diagnostic events that have occurred can be viewed in the Diagnostics
menu:
• Via parameters →  89
• Via submenu →  90
Status signals
The status signals provide information on the state and reliability of the device by
categorizing the cause of the diagnostic information (diagnostic event).
Color
Supply voltage is off or too low
Supply voltage is ok
Link available but no activity
Activity present
HART communication is active.
1
Mass flow:
Volume flow:
Function check (C)
C485 Simu...
Deactivate...
Failure (F)
Mainenance
Function check (C)
Diagnostics 1:
Remedy information:
Out of spezification (S)
Maintenance required (M)
Proline Cubemass C 100 HART
Meaning
kg/h
12.34
12.34
m /h ³
C485 Simulation measured vari...
Deactivate Simulation (Service...
A0021799-EN
Endress+Hauser
2
3
