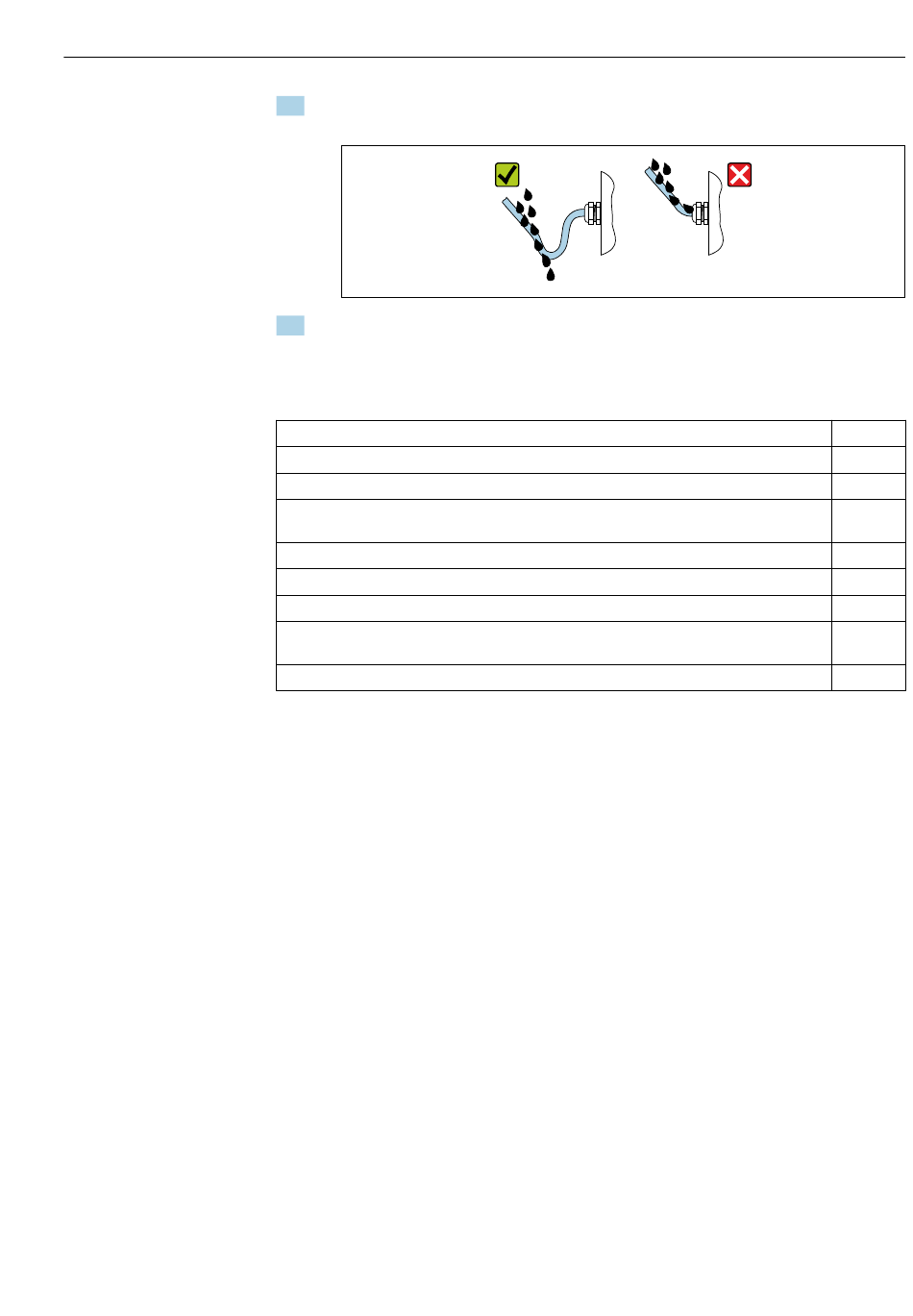

5. To ensure that moisture does not enter the cable entry:
Route the cable so that it loops down before the cable entry ("water trap").

6. Insert dummy plugs into unused cable entries.
7.6

Post-connection check

Are cables or the device undamaged (visual inspection)?
Do the cables used meet the requirements →  26?
Do the cables have adequate strain relief?
Are all the cable glands installed, firmly tightened and leak-tight? Cable run with "water trap"
→  32?
Depending on the device version: are all the device plugs firmly tightened →  29?
Does the supply voltage match the specifications on the transmitter nameplate →  105?
Is the terminal assignment →  27 or pin assignment of the connector →  28 correct?
If supply voltage is present, is the power LED on the electronics module of the transmitter lit green
→  11?
Depending on the device version, is the securing clamp or fixing screw firmly tightened?
Electrical connection
A0029278









