Proline Cubemass C 100 HART
Endress+Hauser

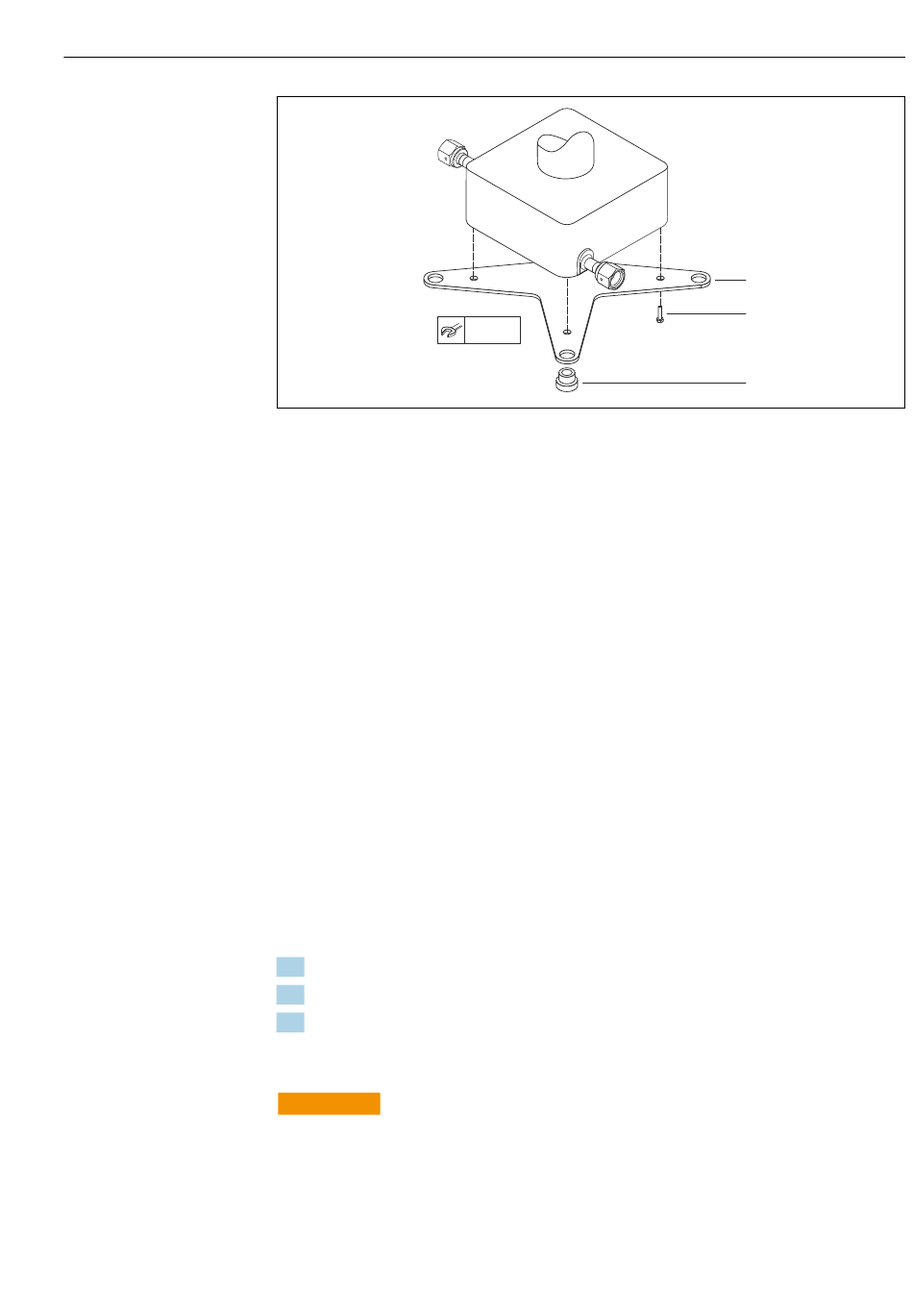

 6 Mounting kit for Cubemass mounting plate
1 1 x Cubemass mounting plate
2 4 x screw M5 x 8
3 4 x grommet
Zero point adjustment
All measuring devices are calibrated in accordance with state-of-the-art technology.
Calibration takes place under reference conditions→  106. Therefore, a zero point
adjustment in the field is generally not required.
Experience shows that zero point adjustment is advisable only in special cases:
• To achieve maximum measuring accuracy even with low flow rates.
• Under extreme process or operating conditions (e.g. very high process temperatures or
very high-viscosity fluids).
6.2

Mounting the measuring device

6.2.1

Required tools

For sensor
For flanges and other process connections: Corresponding mounting tools
6.2.2

Preparing the measuring device

1. Remove all remaining transport packaging.
2. Remove any protective covers or protective caps present from the sensor.
3. Remove stick-on label on the electronics compartment cover.
6.2.3 Mounting the measuring device
WARNING
L
Danger due to improper process sealing!
‣
Ensure that the inside diameters of the gaskets are greater than or equal to that of the
process connections and piping.
‣
Ensure that the seals are clean and undamaged.
‣
Secure the seals correctly.
8 mm
Installation
1
2
3
A0019768
23
