Proline Cubemass C 100 HART
Endress+Hauser
DN
[mm]
1
2
4
6

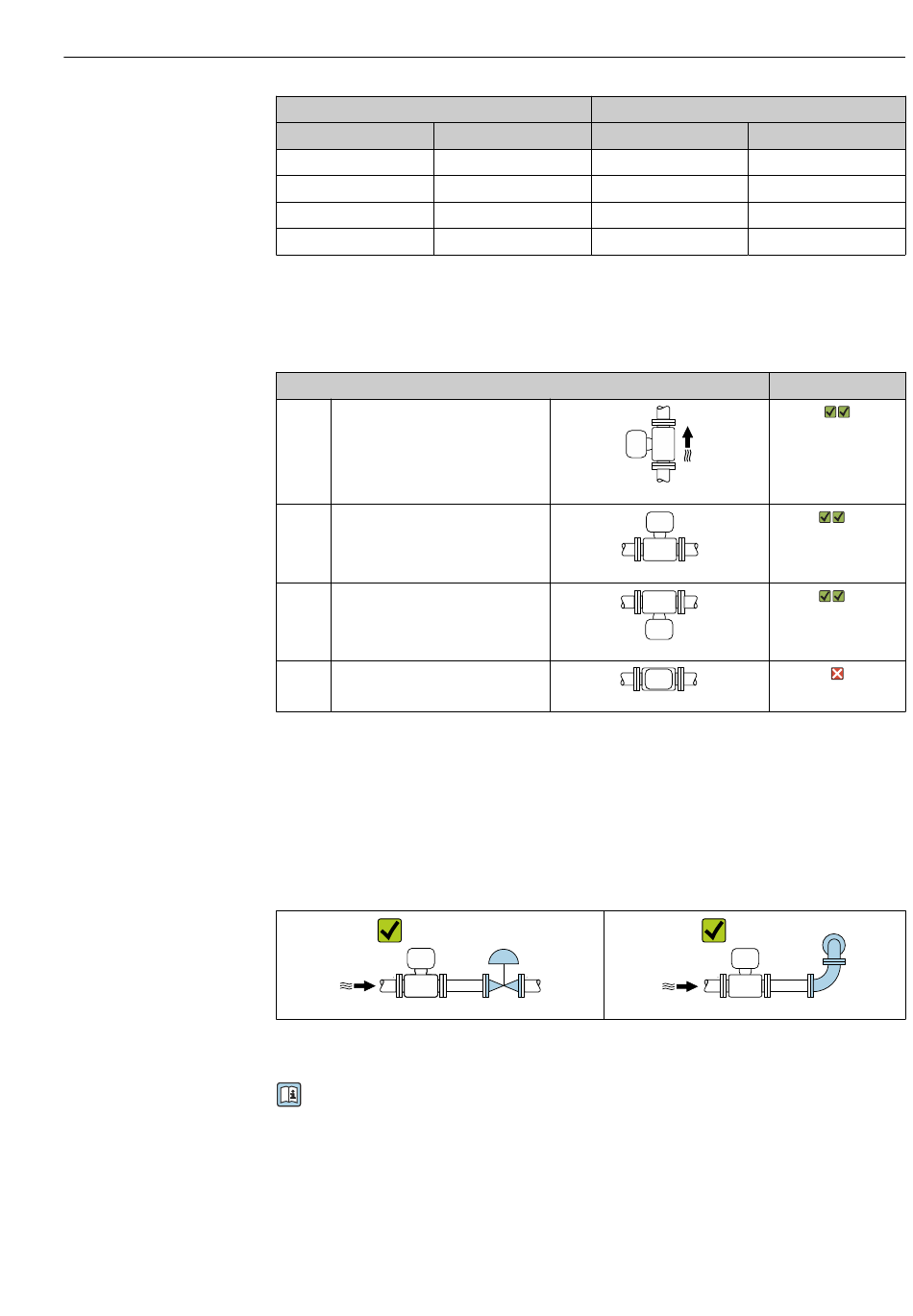

Orientation
The direction of the arrow on the sensor nameplate helps you to install the sensor
according to the flow direction (direction of medium flow through the piping).
A Vertical orientation
B Horizontal orientation, transmitter at
top
C Horizontal orientation, transmitter at
bottom
D Horizontal orientation, transmitter at
side
1) Applications with low process temperatures may decrease the ambient temperature. To maintain the
minimum ambient temperature for the transmitter, this orientation is recommended.
2) Applications with high process temperatures may increase the ambient temperature. To maintain the
maximum ambient temperature for the transmitter, this orientation is recommended.
Inlet and outlet runs
No special precautions need to be taken for fittings which create turbulence, such as
valves, elbows or T-pieces, as long as no cavitation occurs →  20.
Installation dimensions
For the dimensions and installation lengths of the device, see the "Technical
Information" document, "Mechanical construction" section.
Ø orifice plate, pipe restriction
[in] [mm]
¹⁄₂₄ 0.8
¹⁄₁₂ 1.5
¹⁄₈ 3.0
¹⁄₄ 5.0
Orientation
A0029322
Installation
[in]
0.03
0.06
0.12
0.20
Recommendation
A0015591
1)
A0015589
2)
A0015590
A0015592
A0029323
