8.3 Displaying the measured values via the local display
(optionally available)
8.3.1

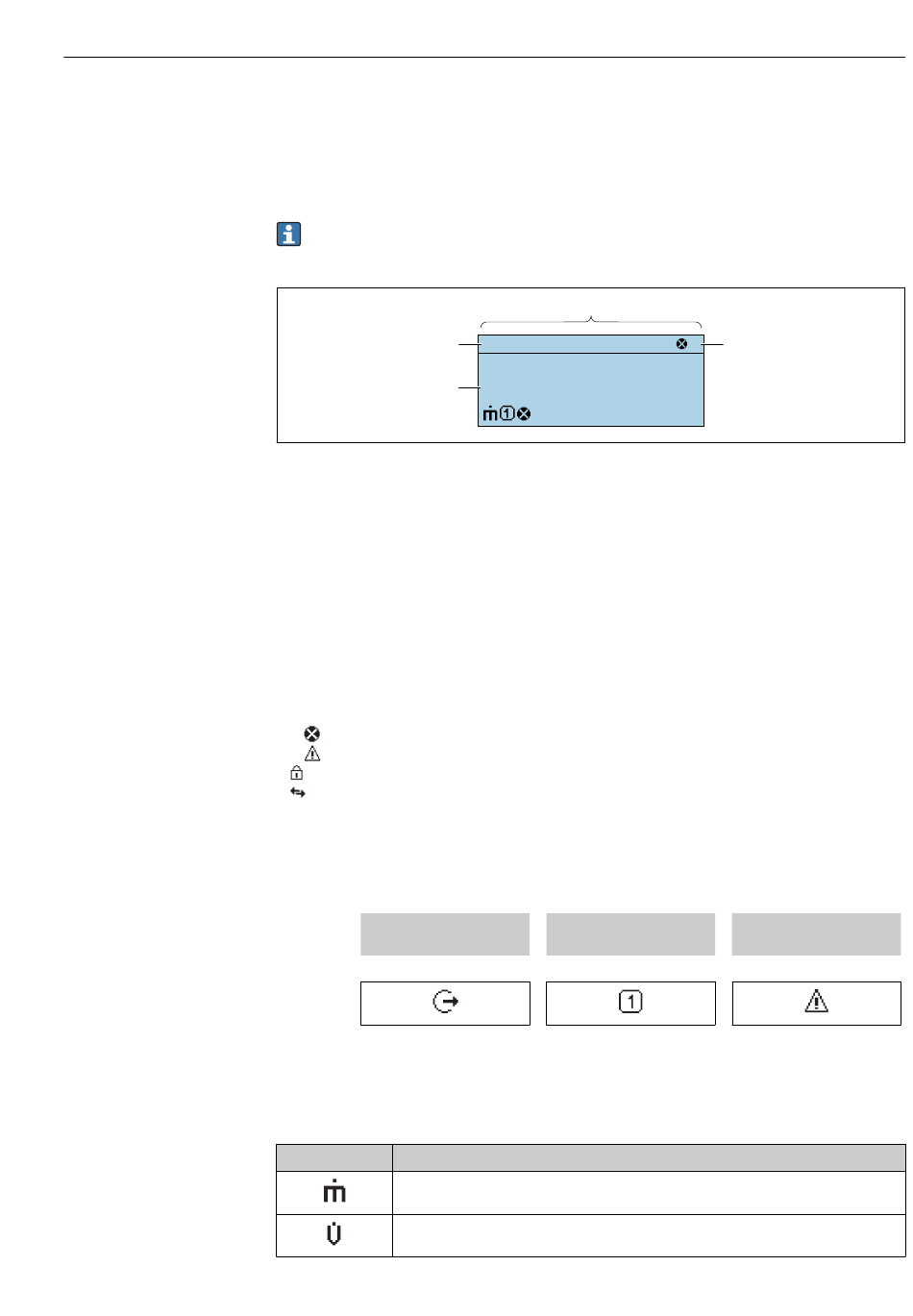

Operational display

The local display is optionally available:
Order code for "Display; operation", option B ""4-line, illuminated; via communication".
2
4
1 Operational display
2 Device tag→  53
3 Status area
4 Display area for measured values (4-line)
Status area
The following symbols appear in the status area of the operational display at the top right:
• Status signals
• F: Failure
• C: Function check
• S: Out of specification
• M: Maintenance required
• Diagnostic behavior
• : Alarm
• : Warning
• : Locking (the device is locked via the hardware →  78)
• : Communication (communication via remote operation is active)
Display area
In the display area, each measured value is prefaced by certain symbol types for further
description:
Measured variable
↓
Example
Measured variables
Symbol Meaning
Mass flow
• Volume flow
• Corrected volume flow
1
X X X X X X X X X
1120.50
Measurement channel
number
↓
Operation options
F 3
kg/h
Diagnostic behavior
↓
Appears only if a diagnostics
event is present for this
measured variable.
A0037831
