Installation
24
1. Ensure that the direction of the arrow on the nameplate of the sensor matches the
flow direction of the fluid.
2. Install the measuring device or turn the transmitter housing so that the cable entries
do not point upwards.

6.2.4

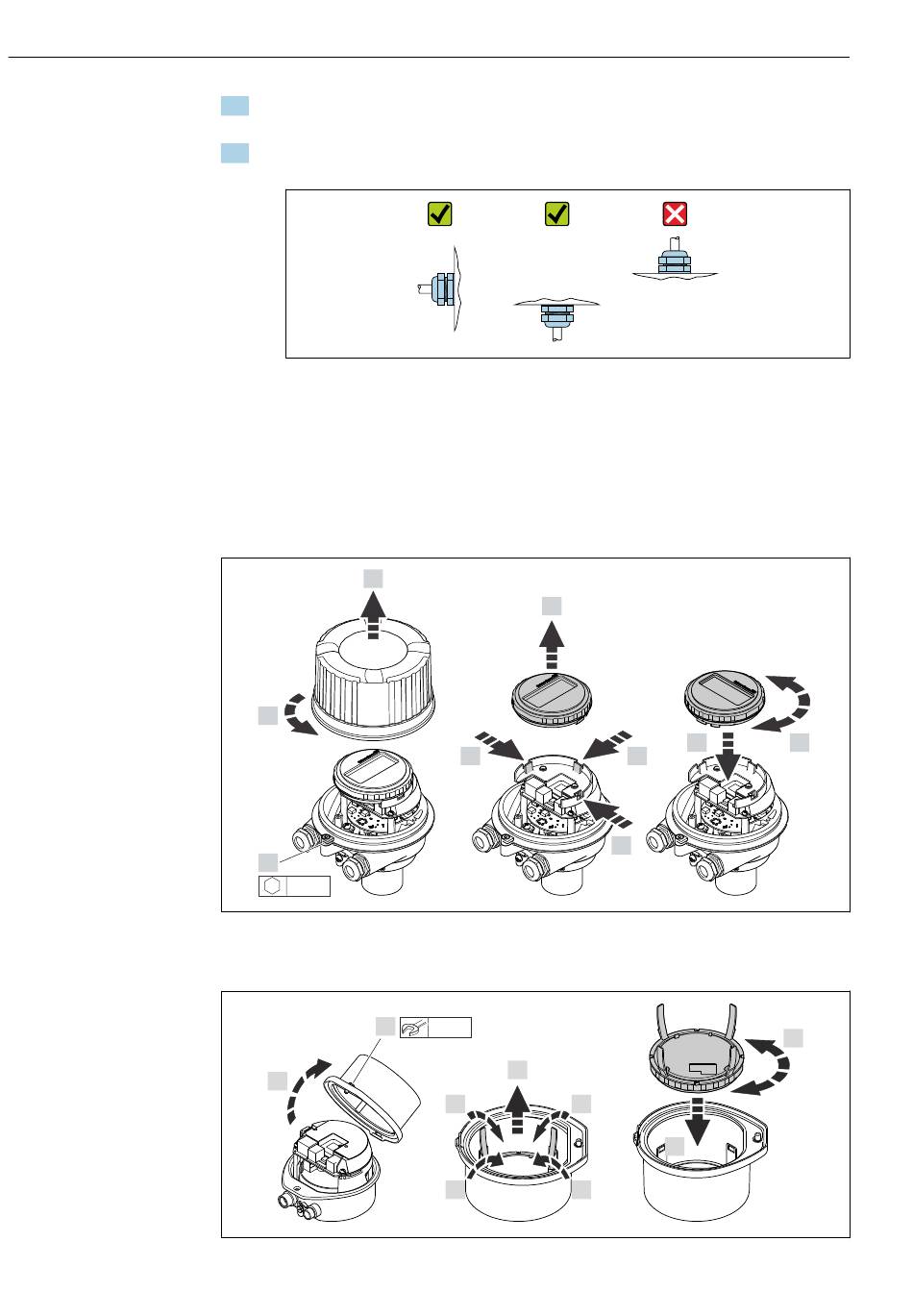

Turning the display module

The local display is only available with the following device version:
Order code for "Display; Operation", option B: 4-line; lit, via communication
The display module can be turned to optimize display readability.
Aluminum housing version, AlSi10Mg, coated
3.
2.
1.
3 mm
Compact and ultra-compact housing version, hygienic, stainless
1.
2.
5.
4.
8 mm
4.
3. 3.
3. 3.
Proline Cubemass C 100 HART
7.
4.
4.
5.
6.
Endress+Hauser
A0029263
6.
A0023192
A0023195
