Access to the operating menu via the operating tool

8.5.1

Connecting the operating tool

Via HART protocol
This communication interface is available in device versions with a HART output.
1

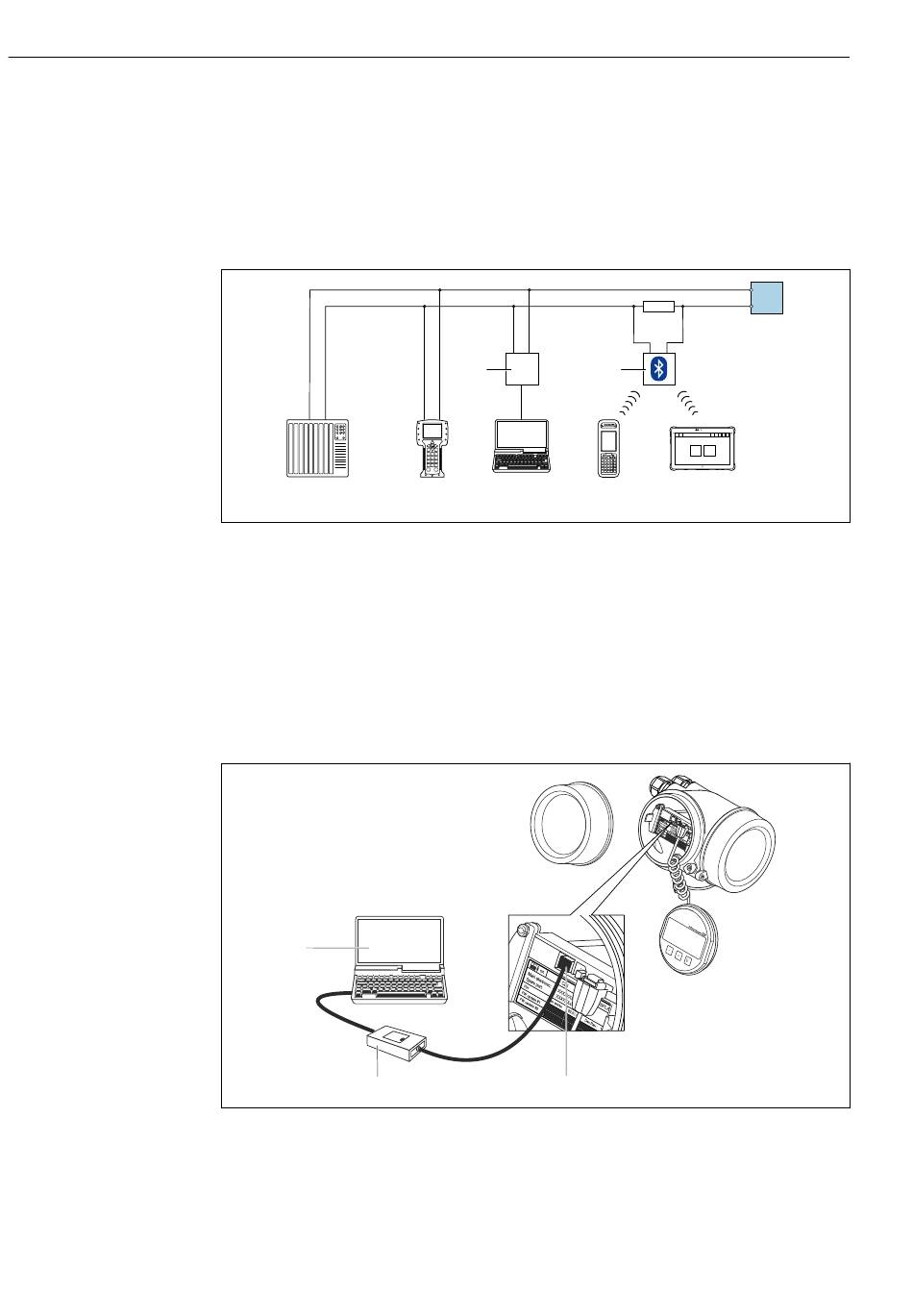

 17 Options for remote operation via HART protocol
1 Control system (e.g. PLC)
2 Field Communicator 475
3 Computer with operating tool (e.g. FieldCare, AMS Device Manager, SIMATIC PDM)
4 Commubox FXA195 (USB)
5 Field Xpert SFX350 or SFX370
6 Field Xpert SMT70
7 VIATOR Bluetooth modem with connecting cable
8 Transmitter
Via service interface (CDI)
3
2
1 Service interface (CDI = Endress+Hauser Common Data Interface) of the measuring device
2 Commubox FXA291
3 Computer with FieldCare operating tool with COM DTM CDI Communication FXA291
Via service interface (CDI-RJ45)
4
2 3
1
Proline Cubemass C 100 HART
8
7
5 6
