Proline Cubemass C 100 HART
Endress+Hauser
1

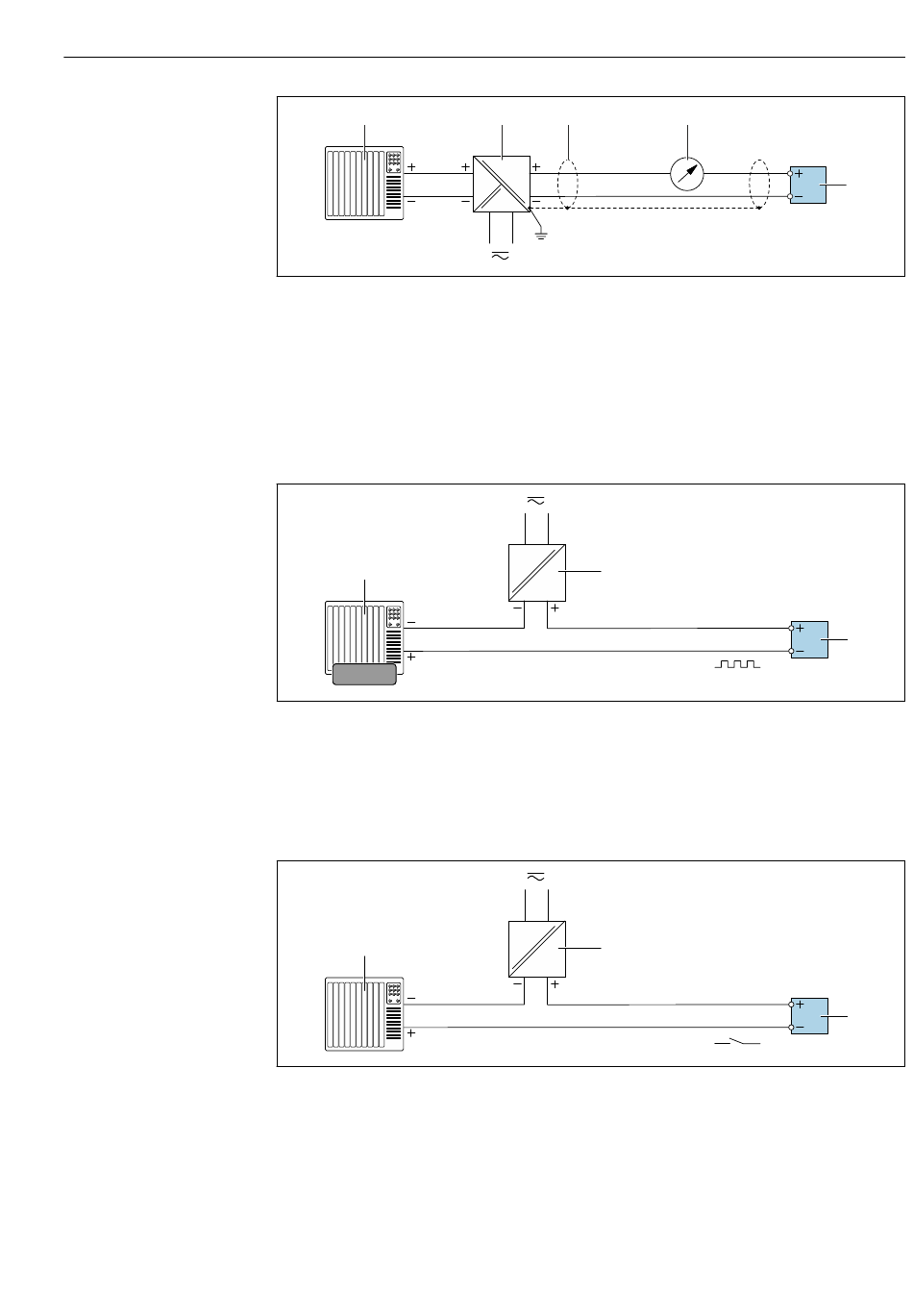

 11 Connection example for 4 to 20 mA HART current output (passive)
1 Automation system with current input (e.g. PLC)
2 Power supply
3 Cable shield provided at one end. The cable shield must be grounded at both ends to comply with EMC
requirements; observe cable specifications
4 Analog display unit: observe maximum load
5 Transmitter
Pulse/frequency output
1
12345
 12 Connection example for pulse/frequency output (passive)
1 Automation system with pulse/frequency input (e.g. PLC)
2 Power supply
3 Transmitter: Observe input values
Switch output
1
 13 Connection example for switch output (passive)
1 Automation system with switch input (e.g. PLC)
2 Power supply
3 Transmitter: Observe input values
2 3
4...20 mA
2
2
Electrical connection
4
5
3
3
A0028762
A0028761
A0028760
