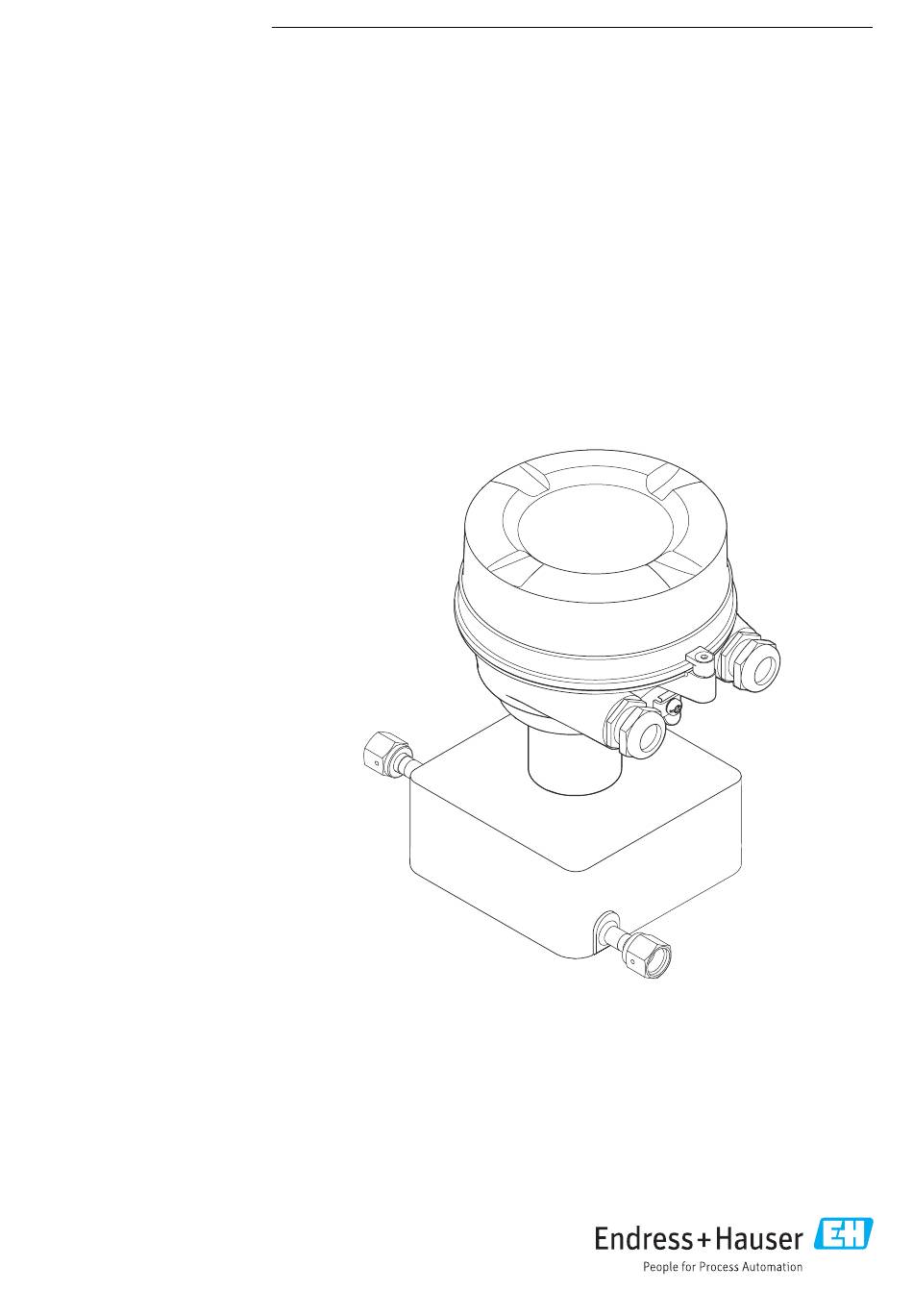

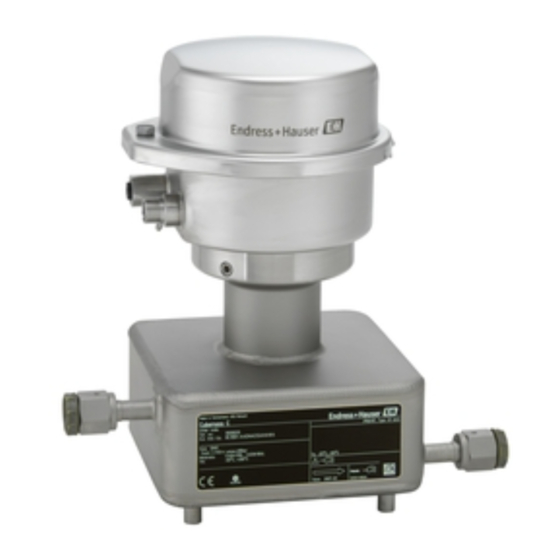

- Page 1 Products Solutions Services BA01188D/06/EN/03.20 71479740 2020-06-01 Valid as of version 01.00.zz (Device firmware) Operating Instructions Proline Cubemass C 100 HART Coriolis flowmeter...
- Page 2 • The manufacturer reserves the right to modify technical data without prior notice. Your Endress+Hauser Sales Center will supply you with current information and updates to these instructions. Endress+Hauser...
-
Page 3: Table Of Contents
Proline Cubemass C 100 HART Table of contents Table of contents Mounting the measuring device ... 23 About this document ....5 6.2.1... - Page 4 13.2 Measuring and test equipment ... . 95 10.2.7 Configuring the HART input ..13.3 Endress+Hauser services ....95 10.2.8 Configuring the output conditioning .
-
Page 5: About This Document
Proline Cubemass C 100 HART About this document About this document Document function These Operating Instructions contain all the information that is required in various phases of the life cycle of the device: from product identification, incoming acceptance and storage, to mounting, connection, operation and commissioning through to troubleshooting, maintenance and disposal. -
Page 6: Symbols For Certain Types Of Information
• W@M Device Viewer (www.endress.com/deviceviewer): Enter the serial number from nameplate • Endress+Hauser Operations App: Enter the serial number from the nameplate or scan the 2D matrix code (QR code) on the nameplate Detailed list of the individual documents along with the documentation code →... -
Page 7: Standard Documentation
Proline Cubemass C 100 HART About this document 1.3.1 Standard documentation Document type Purpose and content of the document Technical Information Planning aid for your device The document contains all the technical data on the device and provides an overview of the accessories and other products that can be ordered for the device. -
Page 8: Safety Instructions
Safety instructions Proline Cubemass C 100 HART Safety instructions Requirements for the personnel The personnel for installation, commissioning, diagnostics and maintenance must fulfill the following requirements: ‣ Trained, qualified specialists must have a relevant qualification for this specific function and task. -
Page 9: Workplace Safety
Verification for borderline cases: ‣ For special fluids and fluids for cleaning, Endress+Hauser is glad to provide assistance in verifying the corrosion resistance of fluid-wetted materials, but does not accept any warranty or liability as minute changes in the temperature, concentration or level of contamination in the process can alter the corrosion resistance properties. -
Page 10: Product Safety
It meets general safety standards and legal requirements. It also complies with the EU directives listed in the device-specific EU Declaration of Conformity. Endress+Hauser confirms this by affixing the CE mark to the device. -
Page 11: Product Description
Proline Cubemass C 100 HART Product description Product description The device consists of a transmitter and a sensor. The device is available as a compact version: The transmitter and sensor form a mechanical unit. Product design 3.1.1 Device version with HART communication protocol A0023153 ... -
Page 12: Incoming Acceptance And Product
Is the envelope present with accompanying documents? • If one of the conditions is not satisfied, contact your Endress+Hauser Sales Center. • Depending on the device version, the CD-ROM might not be part of the delivery! The Technical Documentation is available via the Internet or via the Endress+Hauser Operations App, see the "Product identification"... -
Page 13: Transmitter Nameplate
7 sections • The W@M Device Viewer: enter the serial number from the nameplate (www.endress.com/deviceviewer) • The Endress+Hauser Operations App: Enter the serial number from the nameplate or scan the 2-D matrix code (QR code) on the nameplate. 4.2.1... -
Page 14: Sensor Nameplate
Incoming acceptance and product identification Proline Cubemass C 100 HART 4.2.2 Sensor nameplate 3 4 5 6 Order code: Ser. no.: Ext. ord. cd.: Size: Ptest = Material: 0044 Patents Date: 322541-0000 13 14 A0013907 3 Example of a sensor nameplate... -
Page 15: Symbols On Measuring Device
Proline Cubemass C 100 HART Incoming acceptance and product identification 4.2.3 Symbols on measuring device Symbol Meaning WARNING! This symbol alerts you to a dangerous situation. Failure to avoid this situation can result in serious or fatal injury. Reference to documentation Refers to the corresponding device documentation. -
Page 16: Storage And Transport
Storage and transport Proline Cubemass C 100 HART Storage and transport Storage conditions Observe the following notes for storage: ‣ Store in the original packaging to ensure protection from shock. ‣ Do not remove protective covers or protective caps installed on process connections. -
Page 17: Measuring Devices With Lifting Lugs
Proline Cubemass C 100 HART Storage and transport 5.2.2 Measuring devices with lifting lugs CAUTION Special transportation instructions for devices with lifting lugs ‣ Only use the lifting lugs fitted on the device or flanges to transport the device. ‣... -
Page 18: Installation
Installation Proline Cubemass C 100 HART Installation Installation conditions 6.1.1 Mounting position Mounting location A0028772 To prevent measuring errors arising from accumulation of gas bubbles in the measuring tube, avoid the following mounting locations in the pipe: • Highest point of a pipeline. - Page 19 Proline Cubemass C 100 HART Installation Ø orifice plate, pipe restriction [mm] [in] [mm] [in] ¹⁄₂₄ 0.03 ¹⁄₁₂ 0.06 ¹⁄₈ 0.12 ¹⁄₄ 0.20 Orientation The direction of the arrow on the sensor nameplate helps you to install the sensor according to the flow direction (direction of medium flow through the piping).
-
Page 20: Environmental And Process Requirements
Installation Proline Cubemass C 100 HART 6.1.2 Environmental and process requirements Ambient temperature range Measuring device • –40 to +60 °C (–40 to +140 °F) • Order code for "Test, certificate", option JM: –50 to +60 °C (–58 to +140 °F) ‣... -
Page 21: Special Mounting Instructions
Proline Cubemass C 100 HART Installation Heating NOTICE Electronics can overheat due to elevated ambient temperature! ‣ Observe maximum permitted ambient temperature for the transmitter . ‣ Depending on the fluid temperature, take the device orientation requirements into account . - Page 22 Installation Proline Cubemass C 100 HART RUPTURE DISK A0029940 Rupture disk label Wall mounting WARNING Incorrect sensor mounting Risk of injury if measuring tube breaks ‣ The sensor should never be installed in a pipe in a way that it is freely suspended ‣...
-
Page 23: Mounting The Measuring Device
Proline Cubemass C 100 HART Installation 8 mm A0019768 6 Mounting kit for Cubemass mounting plate 1 x Cubemass mounting plate 4 x screw M5 x 8 4 x grommet Zero point adjustment All measuring devices are calibrated in accordance with state-of-the-art technology. -
Page 24: Turning The Display Module
Installation Proline Cubemass C 100 HART 1. Ensure that the direction of the arrow on the nameplate of the sensor matches the flow direction of the fluid. 2. Install the measuring device or turn the transmitter housing so that the cable entries do not point upwards. -
Page 25: Post-Installation Check
Proline Cubemass C 100 HART Installation Post-installation check Is the device undamaged (visual inspection)? Does the measuring device conform to the measuring point specifications? For example: • Process temperature → 111 • Process pressure (refer to the section on "Pressure-temperature ratings" in the "Technical Information"... -
Page 26: Electrical Connection
Electrical connection Proline Cubemass C 100 HART Electrical connection NOTICE The measuring device does not have an internal circuit breaker. ‣ For this reason, assign the measuring device a switch or power-circuit breaker so that the power supply line can be easily disconnected from the mains. -
Page 27: Terminal Assignment
Proline Cubemass C 100 HART Electrical connection 7.2.3 Terminal assignment Transmitter Connection version 4-20 mA HART with pulse/frequency/switch output Order code for "Output", option B Depending on the housing version, the transmitters can be ordered with terminals or device plugs. -
Page 28: Pin Assignment, Device Plug
Electrical connection Proline Cubemass C 100 HART 7.2.4 Pin assignment, device plug Supply voltage Assignment DC 24 V Not assigned Not assigned DC 24 V Grounding/shielding A0016809 Coding Plug/socket Plug Device plug for signal transmission (device side) Assignment 4-20 mA HART (active) -
Page 29: Connecting The Transmitter
Proline Cubemass C 100 HART Electrical connection 7.3.1 Connecting the transmitter The connection of the transmitter depends on the following order codes: • Housing version: compact or ultra-compact • Connection version: device plug or terminals A0016924 8 Housing versions and connection versions... -
Page 30: Ensuring Potential Equalization
Electrical connection Proline Cubemass C 100 HART For device version with device plug: follow step 6 only. 1. Depending on the housing version, loosen the securing clamp or fixing screw of the housing cover. 2. Depending on the housing version, unscrew or open the housing cover and disconnect the local display from the main electronics module where necessary →... - Page 31 Proline Cubemass C 100 HART Electrical connection 4...20 mA A0028762 11 Connection example for 4 to 20 mA HART current output (passive) Automation system with current input (e.g. PLC) Power supply Cable shield provided at one end. The cable shield must be grounded at both ends to comply with EMC requirements;...
-
Page 32: Ensuring The Degree Of Protection
Electrical connection Proline Cubemass C 100 HART HART input 4...20 mA A0019828 14 Connection example for HART input (burst mode) via current output (active) Cable shield provided at one end. Observe cable specifications Resistor for HART communication (≥ 250 Ω): observe maximum load... -
Page 33: Post-Connection Check
Proline Cubemass C 100 HART Electrical connection 5. To ensure that moisture does not enter the cable entry: Route the cable so that it loops down before the cable entry ("water trap"). A0029278 6. Insert dummy plugs into unused cable entries. -
Page 34: Operation Options
Operation options Proline Cubemass C 100 HART Operation options Overview of operating options A0019598 Computer with Web browser (e.g. Internet Explorer) or with operating tool (e.g. FieldCare, AMS Device Manager, SIMATIC PDM) Field Xpert SFX350 or SFX370 Field Xpert SMT70 Control system (e.g. -
Page 35: Structure And Function Of The Operating Menu
Proline Cubemass C 100 HART Operation options Structure and function of the operating menu 8.2.1 Structure of the operating menu For an overview of the operating menu for experts: "Description of Device Parameters" document supplied with the device→ 120... -
Page 36: Operating Philosophy
Operation options Proline Cubemass C 100 HART 8.2.2 Operating philosophy The individual parts of the operating menu are assigned to certain user roles (operator, maintenance etc.). Each user role contains typical tasks within the device lifecycle. Menu/parameter User role and tasks... -
Page 37: Displaying The Measured Values Via The Local Display (Optionally Available)
Proline Cubemass C 100 HART Operation options Displaying the measured values via the local display (optionally available) 8.3.1 Operational display The local display is optionally available: Order code for "Display; operation", option B ""4-line, illuminated; via communication". X X X X X X X 1120.50... -
Page 38: User Roles And Related Access Authorization
Operation options Proline Cubemass C 100 HART • Density • Reference density Temperature Totalizer The measurement channel number indicates which of the three totalizers is displayed. Output Measurement channel numbers Symbol Meaning Measurement channel 1 to 4 The measurement channel number is displayed only if more than one channel is present for the same measured variable type (e.g. -
Page 39: Access To The Operating Menu Via The Web Browser
Proline Cubemass C 100 HART Operation options Access authorization to parameters: "Operator" user role Access code status Read access Write access After an access code has been defined. –– Despite the defined access code, certain parameters can always be modified and thus are excepted from the write protection, as they do not affect the measurement. -
Page 40: Establishing A Connection
Operation options Proline Cubemass C 100 HART Network connections Only the active network connections to the measuring device should be used. Switch off all other network connections. In the event of connection problems: Measuring device: Via CDI-RJ45 service interface Device... -
Page 41: Logging On
Proline Cubemass C 100 HART Operation options 2. Enter the IP address of the Web server in the address line of the Web browser: 192.168.1.212 The login page appears. 2 3 4 A0029417 Picture of device Device name Device tag (→ 53) -
Page 42: User Interface
Operation options Proline Cubemass C 100 HART 8.4.5 User interface A0032879 Picture of device Device name Device tag Status signal Current measured values Navigation area Local display language Header The following information appears in the header: • Device name • Device tag→ 53 •... -
Page 43: Disabling The Web Server
Proline Cubemass C 100 HART Operation options Navigation area If a function is selected in the function bar, the submenus of the function open in the navigation area. The user can now navigate through the menu structure. Working area Depending on the selected function and the related submenus, various actions can be performed in this area: •... -
Page 44: Access To The Operating Menu Via The Operating Tool
VIATOR Bluetooth modem with connecting cable Transmitter Via service interface (CDI) A0014019 Service interface (CDI = Endress+Hauser Common Data Interface) of the measuring device Commubox FXA291 Computer with FieldCare operating tool with COM DTM CDI Communication FXA291 Via service interface (CDI-RJ45) -
Page 45: Field Xpert Sfx350, Sfx370
FieldCare Function scope FDT-based plant asset management tool from Endress+Hauser. It can configure all smart field devices in a system and helps you manage them. By using the status information, it is also a simple but effective way of checking their status and condition. - Page 46 Operation options Proline Cubemass C 100 HART Establishing a connection 1. Start FieldCare and launch the project. 2. In the network: Add a device. The Add device window opens. 3. Select the CDI Communication TCP/IP option from the list and press OK to confirm.
-
Page 47: Devicecare
DeviceCare Function scope Tool to connect and configure Endress+Hauser field devices. The fastest way to configure Endress+Hauser field devices is with the dedicated "DeviceCare" tool. Together with the device type managers (DTMs) it presents a convenient, comprehensive solution. For details, see Innovation Brochure IN01047S Source for device description files See information →... -
Page 48: System Integration
System integration Proline Cubemass C 100 HART System integration Overview of device description files 9.1.1 Current version data for the device Firmware version 01.01.zz • On the title page of the Operating Instructions • On the transmitter nameplate • Firmware version Diagnostics →... -
Page 49: Device Variables
Proline Cubemass C 100 HART System integration Dynamic variables Measured variables (HART device variables) Tertiary dynamic variable (TV) Density Quaternary dynamic variable (QV) Temperature The assignment of the measured variables to the dynamic variables can be modified and assigned as desired via the operating tool using the following parameters: •... -
Page 50: Other Settings
System integration Proline Cubemass C 100 HART Assignment Device variables Temperature Totalizer 1 Totalizer 2 Totalizer 3 Target mass flow Carrier mass flow Concentration Visible depending on the order options or device settings Other settings Burst mode functionality in accordance with HART 7 Specification: Navigation "Expert"... - Page 51 Proline Cubemass C 100 HART System integration Min. update period → 52 Max. update period → 52 Parameter overview with brief description Parameter Description Selection / User entry Factory setting Burst mode 1 to n Activate the HART burst mode for burst •...
- Page 52 System integration Proline Cubemass C 100 HART Parameter Description Selection / User entry Factory setting Burst trigger level Enter the burst trigger value. Positive floating-point number – Together with the option selected in the Burst trigger mode parameter the burst trigger value determines the time of burst message X.
-
Page 53: Commissioning
Proline Cubemass C 100 HART Commissioning Commissioning 10.1 Function check Before commissioning the device, make sure that the post-installation and post- connection checks have been performed. • "Post-installation check" checklist → 25 • "Post-connection check" checklist → 33 10.2... - Page 54 Commissioning Proline Cubemass C 100 HART Navigation "Setup" menu → Advanced setup → System units Structure of the submenu System units → Mass flow unit Mass unit Volume flow unit Volume unit Corrected volume flow unit Corrected volume unit Density unit...
- Page 55 Proline Cubemass C 100 HART Commissioning Parameter Description Selection Factory setting Corrected volume unit Select corrected volume unit. Unit choose list Country-specific: • Nl Result • Sft³ The selected unit is taken from: Corrected volume flow unit parameter Density unit Select density unit.
-
Page 56: Selecting And Setting The Medium
Commissioning Proline Cubemass C 100 HART 10.2.3 Selecting and setting the medium The Medium selection submenu contains parameters that have to be configured for selecting and setting the medium. Navigation "Setup" menu → Select medium ‣ Medium selection → 56 Select medium →... -
Page 57: Configuring The Current Output
Proline Cubemass C 100 HART Commissioning 10.2.4 Configuring the current output The "Current output 2" submenu contains all the parameters that must be configured for the configuration of the current output. Navigation "Setup" menu → Current output 1 to n... - Page 58 Commissioning Proline Cubemass C 100 HART Parameter overview with brief description Parameter Description Selection / User entry Factory setting Assign current output Select process variable for current output. • Off Mass flow • Mass flow • Volume flow • Corrected volume flow •...
-
Page 59: Configuring The Pulse/Frequency
Proline Cubemass C 100 HART Commissioning 10.2.5 Configuring the pulse/frequency/switch output The Pulse/frequency/switch output 1 submenu contains all the parameters that must be configured for the configuration of the selected output type. Pulse output Navigation "Setup" menu → Pulse/frequency/switch output... - Page 60 Commissioning Proline Cubemass C 100 HART Frequency output Navigation "Setup" menu → Pulse/frequency/switch output Structure of the submenu for the frequency output Pulse/frequency/switch output → Operating mode Assign frequency output Minimum frequency value Maximum frequency value Measuring value at minimum frequency...
- Page 61 Proline Cubemass C 100 HART Commissioning Parameter Description Selection / User entry Factory setting Mass flow unit Select mass flow unit. Unit choose list Country-specific: • kg/h Result • lb/min The selected unit applies for: • Output • Low flow cut off •...
- Page 62 Commissioning Proline Cubemass C 100 HART Parameter overview with brief description Parameter Description Selection / User entry Factory setting Operating mode Define the output as a pulse, frequency or • Pulse Pulse switch output. • Frequency • Switch Switch output function Select function for switch output.
-
Page 63: Configuring The Local Display
Proline Cubemass C 100 HART Commissioning Parameter Description Selection / User entry Factory setting Switch-off delay Define delay for the switch-off of status 0.0 to 100.0 s 0.0 s output. Failure mode Define output behavior in alarm condition. • Actual status Open •... -
Page 64: Configuring The Hart Input
Commissioning Proline Cubemass C 100 HART Parameter overview with brief description Parameter Description Selection / User entry Factory setting Format display Select how measured values are shown on • 1 value, max. size 1 value, max. size the display. • 1 bargraph + 1 value •... -
Page 65: Configuring The Output
Proline Cubemass C 100 HART Commissioning Navigation "Expert" menu → Communication → HART input → Configuration HART input → Capture mode Device ID Device type Manufacturer ID Burst command Slot number Timeout Failure mode Failure value Parameter overview with brief description... - Page 66 Commissioning Proline Cubemass C 100 HART Navigation "Setup" menu → Output conditioning Structure of the submenu for output conditioning Output conditioning → Assign current output Damping output Measuring mode output Assign frequency output Damping output Measuring mode output Assign pulse output...
- Page 67 Proline Cubemass C 100 HART Commissioning Parameter Description Selection / User entry Factory setting Measuring mode output Select measuring mode for output. • Forward flow Forward flow • Forward/Reverse flow • Reverse flow compensation Assign frequency output Select process variable for frequency output.
-
Page 68: Configuring The Low Flow Cut Off
Commissioning Proline Cubemass C 100 HART 10.2.9 Configuring the low flow cut off The Low flow cut off submenu contains parameters that must be configured for the configuration of low flow cut off. Navigation "Setup" menu → Low flow cut off Low flow cut off →... -
Page 69: Configuring The Partial Filled Pipe
Proline Cubemass C 100 HART Commissioning 10.2.10 Configuring the partial filled pipe detection The Partially filled pipe detection submenu contains parameters that have to be set for configuring empty pipe detection. Navigation "Setup" menu → Partially filled pipe detection Partially filled pipe detection →... -
Page 70: Advanced Settings
Commissioning Proline Cubemass C 100 HART 10.3 Advanced settings The Advanced setup submenu with its submenus contains parameters for specific settings. Navigation "Setup" menu → Advanced setup Overview of the parameters and submenus in the "Advanced setup" submenu: Taking the example of the Web browser →... -
Page 71: Carrying Out A Sensor Adjustment
Proline Cubemass C 100 HART Commissioning Parameter overview with brief description Parameter Prerequisite Description Selection / User Factory setting entry Corrected volume flow calculation – Select reference density for • Fixed reference Calculated reference calculating the corrected density density volume flow. • Calculated reference density •... -
Page 72: Configuring The Totalizer
Commissioning Proline Cubemass C 100 HART Parameter overview with brief description Parameter Description Selection / User interface Factory setting Installation direction Set sign of flow direction to match the • Flow in arrow direction Flow in arrow direction direction of the arrow on the sensor. -
Page 73: Carrying Out Additional Display Configurations
Proline Cubemass C 100 HART Commissioning 10.3.4 Carrying out additional display configurations In the "Display" submenu you can set all the parameters involved in the configuration of the local display. Navigation "Setup" menu → Advanced setup → Display Structure of the submenu Display →... - Page 74 Commissioning Proline Cubemass C 100 HART Parameter overview with brief description Parameter Description Selection / User entry Factory setting Format display Select how measured values are shown on • 1 value, max. size 1 value, max. size the display. • 1 bargraph + 1 value •...
-
Page 75: Simulation
Proline Cubemass C 100 HART Commissioning Parameter Description Selection / User entry Factory setting Decimal places 3 Select the number of decimal places for the • x x.xx display value. • x.x • x.xx • x.xxx • x.xxxx Value 4 display Select the measured value that is shown on... - Page 76 Commissioning Proline Cubemass C 100 HART Value current output Frequency simulation Frequency value Pulse simulation Pulse value Switch output simulation Switch status Simulation device alarm Simulation diagnostic event Parameter overview with brief description Parameter Prerequisite Description Selection / User Factory setting entry Assign simulation process variable –...
-
Page 77: Protecting Settings From Unauthorized
Proline Cubemass C 100 HART Commissioning Parameter Prerequisite Description Selection / User Factory setting entry Pulse value 1 The Down-count. val. option Enter the number of pulses for 0 to 65 535 is selected in the Simulation simulation. pulse output parameter. Switch output simulation 1 –... -
Page 78: Write Protection Via Write Protection
Commissioning Proline Cubemass C 100 HART 10.5.2 Write protection via write protection switch The write protection switch makes it possible to block write access to the entire operating menu with the exception of the following parameters: • External pressure • External temperature •... -
Page 79: Operation
Proline Cubemass C 100 HART Operation Operation 11.1 Reading device locking status The write protection types that are currently active can be determined using the Locking status parameter. Navigation "Operation" menu → Locking status Function scope of "Locking status" parameter... -
Page 80: Totalizer
Operation Proline Cubemass C 100 HART Parameter Description User interface Factory setting Density Displays the density currently measured. Signed floating-point number – Reference density Displays the reference density currently Signed floating-point number – calculated. Temperature Displays the temperature currently Signed floating-point number measured. -
Page 81: Adapting The Measuring Device To The Process
Proline Cubemass C 100 HART Operation Pulse output 1 Output frequency 1 Switch status 1 Parameter overview with brief description Parameter Description User interface Factory setting Output current 1 Displays the current value currently 3.59 to 22.5 mA 3.59 mA calculated for the current output. - Page 82 Operation Proline Cubemass C 100 HART Navigation "Operation" menu → Operation Structure of the submenu Operation → Control Totalizer Preset value Reset all totalizers Parameter overview with brief description Parameter Description Selection / User entry Factory setting Control Totalizer Control totalizer value.
-
Page 83: Diagnostics And Troubleshooting
Proline Cubemass C 100 HART Diagnostics and troubleshooting Diagnostics and troubleshooting 12.1 General troubleshooting For output signals Problem Possible causes Remedy Green power LED on the main Supply voltage does not match that Apply the correct supply voltage electronics module of the specified on the nameplate. -
Page 84: Diagnostic Information Via Light Emitting
Diagnostics and troubleshooting Proline Cubemass C 100 HART 12.2 Diagnostic information via light emitting diodes 12.2.1 Transmitter Various light emitting diodes (LEDs) on the main electronics module of the transmitter provide information on device status. Color Meaning Power Supply voltage is off or too low... -
Page 85: Calling Up Remedy Information
Proline Cubemass C 100 HART Diagnostics and troubleshooting Symbol Meaning Failure A device error has occurred. The measured value is no longer valid. A0017271 Function check The device is in service mode (e.g. during a simulation). A0017278 Out of specification The device is operated: •... -
Page 86: Adapting The Status Signal
Diagnostics and troubleshooting Proline Cubemass C 100 HART You can assign the following options to the diagnostic number as the diagnostic behavior: Options Description Alarm Measurement is interrupted. Signal outputs and totalizers assume the defined alarm condition. A diagnostic message is generated. - Page 87 Proline Cubemass C 100 HART Diagnostics and troubleshooting Diagnostic Short text Remedy instructions Status Diagnostic number signal behavior [from the [from the factory] factory] Sensor connection 1. Change main electronic Alarm module 2. Change sensor Data storage 1. Check module connections Alarm 2.
- Page 88 Diagnostics and troubleshooting Proline Cubemass C 100 HART Diagnostic Short text Remedy instructions Status Diagnostic number signal behavior [from the [from the factory] factory] Diagnostic of configuration Data transfer 1. Check connection Alarm 2. Retry data transfer Up-/download active Up-/download active, please wait C...
-
Page 89: Pending Diagnostic Events
Proline Cubemass C 100 HART Diagnostics and troubleshooting Diagnostic Short text Remedy instructions Status Diagnostic number signal behavior [from the [from the factory] factory] Process temperature too Reduce process temperature Warning high Process temperature too Increase process temperature Warning Process limit... -
Page 90: Diagnostic List
Diagnostics and troubleshooting Proline Cubemass C 100 HART Parameter overview with brief description Parameter Prerequisite Description User interface Factory setting Actual diagnostics 1 diagnostic event has Displays the current diagnostic Symbol for diagnostic – occurred. event along with the behavior, diagnostic diagnostic information. -
Page 91: Filtering The Event Logbook
Proline Cubemass C 100 HART Diagnostics and troubleshooting 12.8.2 Filtering the event logbook Using the Filter options parameter, you can define which category of event messages is displayed in the Events list submenu. Navigation path "Diagnostics" menu → Event logbook → Filter options Filter categories •... -
Page 92: Resetting The Measuring Device
Diagnostics and troubleshooting Proline Cubemass C 100 HART Info number Info name I1447 Record application reference data I1448 Application reference data recorded I1449 Recording application ref. data failed I1450 Monitoring off I1451 Monitoring on I1457 Failed:Measured error verification I1459 Failed: I/O module verification... - Page 93 Proline Cubemass C 100 HART Diagnostics and troubleshooting Extended order code 2 Extended order code 3 ENP version Device revision Device ID Device type Manufacturer ID IP address Subnet mask Default gateway Parameter overview with brief description Parameter Description User interface...
-
Page 94: 12.11 Firmware History
"Manufacturer' s information" document. The manufacturer' s information is available: • In the Download Area of the Endress+Hauser Internet site: www.endress.com → Download • Specify the following details: •... -
Page 95: Maintenance
→ 111. 13.2 Measuring and test equipment Endress+Hauser offers a wide variety of measuring and test equipment, such as W@M or device tests. Your Endress+Hauser Sales Center can provide detailed information on the services. List of some of the measuring and testing equipment: → 98→ 99 13.3... -
Page 96: Repair
• The measuring devices have a modular design. • Spare parts are grouped into logical kits with the associated Installation Instructions. • Repairs are carried out by Endress+Hauser Service or by appropriately trained customers. • Certified devices can only be converted to other certified devices by Endress+Hauser Service or at the factory. -
Page 97: Disposal
(WEEE), the product is marked with the depicted symbol in order to minimize the disposal of WEEE as unsorted municipal waste. Do not dispose of products bearing this marking as unsorted municipal waste. Instead, return them to Endress+Hauser for disposal under the applicable conditions. -
Page 98: Accessories
Various accessories, which can be ordered with the device or subsequently from Endress +Hauser, are available for the device. Detailed information on the order code in question is available from your local Endress+Hauser sales center or on the product page of the Endress+Hauser website: www.endress.com. -
Page 99: Service-Specific Accessories
Accessories Description Applicator Software for selecting and sizing Endress+Hauser measuring devices: • Choice of measuring devices for industrial requirements • Calculation of all the necessary data for identifying the optimum flowmeter: e.g. nominal diameter, pressure loss, flow velocity and accuracy. -
Page 100: Technical Data
Technical data Proline Cubemass C 100 HART Technical data 16.1 Application The measuring device is intended only for the flow measurement of liquids and gases. Depending on the version ordered, the measuring device can also measure potentially explosive, flammable, poisonous and oxidizing media. -
Page 101: Input
Proline Cubemass C 100 HART Technical data 16.3 Input Measured variable Direct measured variables • Mass flow • Density • Temperature Calculated measured variables • Volume flow • Corrected volume flow • Reference density Measuring range Measuring ranges for liquids Measuring range full scale values ... -
Page 102: Output
• Operating pressure to increase accuracy (Endress+Hauser recommends the use of a pressure measuring device for absolute pressure, e.g. Cerabar M or Cerabar S) •... - Page 103 Proline Cubemass C 100 HART Technical data Pulse value Adjustable Assignable measured • Mass flow variables • Volume flow • Corrected volume flow Frequency output Output frequency Adjustable: 0 to 12 500 Hz Damping Adjustable: 0 to 999 s Pulse/pause ratio Assignable measured •...
- Page 104 Technical data Proline Cubemass C 100 HART Pulse/frequency/switch output Pulse output Failure mode Choose from: • Actual value • No pulses Frequency output Failure mode Choose from: • Actual value • 0 Hz • Defined value: 0 to 12 500 Hz...
-
Page 105: Power Supply
Proline Cubemass C 100 HART Technical data Protocol-specific data Protocol-specific data • For information on the device description files • For information on the dynamic variables and measured variables (HART device variables) → 48 16.5 Power supply Terminal assignment →... -
Page 106: Performance Characteristics
Technical data Proline Cubemass C 100 HART 16.6 Performance characteristics Reference operating • Error limits based on ISO 11631 conditions • Water with +15 to +45 °C (+59 to +113 °F) at2 to 6 bar (29 to 87 psi) • Specifications as per calibration protocol •... - Page 107 Proline Cubemass C 100 HART Technical data SI units 1:10 1:20 1:50 1:100 1:500 [mm] [kg/h] [kg/h] [kg/h] [kg/h] [kg/h] [kg/h] 0.04 22.5 1 000 US units 1:10 1:20 1:50 1:100 1:500 [inch] [lb/min] [lb/min] [lb/min] [lb/min] [lb/min] [lb/min] ¹⁄₂₄...
- Page 108 Technical data Proline Cubemass C 100 HART Response time The response time depends on the configuration (damping). Influence of ambient Current output temperature o.r. = of reading Temperature coefficient Max. ±0.005 % o.r./°C Pulse/frequency output Temperature coefficient No additional effect. Included in accuracy.
- Page 109 Proline Cubemass C 100 HART Technical data o.r. = of reading It is possible to compensate for the effect by: • Reading in the current pressure measured value via the current input. • Specifying a fixed value for the pressure in the device parameters.
-
Page 110: Installation
Technical data Proline Cubemass C 100 HART 16.7 Installation Installation conditions → 18 16.8 Environment Ambient temperature → 20→ 20 range Temperature tables Observe the interdependencies between the permitted ambient and fluid temperatures when operating the device in hazardous areas. -
Page 111: Process
Proline Cubemass C 100 HART Technical data 16.9 Process Medium temperature range –50 to +205 °C (–58 to +401 °F) Dependency of ambient temperature on medium temperature A0031121 20 Exemplary representation, values in the table below. Ambient temperature range... - Page 112 Technical data Proline Cubemass C 100 HART Flow limit Select the nominal diameter by optimizing between the required flow range and permissible pressure loss. For an overview of the full scale values for the measuring range, see the "Measuring range" section → 101 •...
-
Page 113: 16.10 Mechanical Construction
Proline Cubemass C 100 HART Technical data 16.10 Mechanical construction Design, dimensions For the dimensions and installation lengths of the device, see the "Technical Information" document, "Mechanical construction" section. Weight All values (weight exclusive of packaging material) refer to devices with VCO couplings. - Page 114 Technical data Proline Cubemass C 100 HART Order code for "Housing", option A "Compact, aluminum, coated" The various cable entries are suitable for hazardous and non-hazardous areas. Cable entry/cable gland Material Cable gland M20 × 1.5 Adapter for cable entry with female thread G ½"...
-
Page 115: 16.11 Human Interface
Proline Cubemass C 100 HART Technical data Accessories Protective cover Stainless steel, 1.4404 (316L) Safety Barrier Promass 100 Housing: Polyamide Process connections • Fixed flange connections: • EN 1092-1 (DIN 2512N) flange • ASME B16.5 flange • JIS B2220 flange •... - Page 116 Technical data Proline Cubemass C 100 HART For some work performed on the measuring device (e.g. electrical connection), it is advisable to disconnect the local display from the main electronics module: 1. Press in the side latches of the local display.
-
Page 117: 16.12 Certificates And Approvals
The device meets the legal requirements of the applicable EU Directives. These are listed in the corresponding EU Declaration of Conformity along with the standards applied. Endress+Hauser confirms successful testing of the device by affixing to it the CE mark. RCM-tick symbol The measuring system meets the EMC requirements of the "Australian Communications... -
Page 118: 16.13 Application Packages
The application packages can be ordered with the device or subsequently from Endress+Hauser. Detailed information on the order code in question is available from your local Endress+Hauser sales center or on the product page of the Endress+Hauser website: www.endress.com. -
Page 119: 16.14 Accessories
For an overview of the scope of the associated Technical Documentation, refer to the following: • W@M Device Viewer (www.endress.com/deviceviewer): Enter the serial number from nameplate • Endress+Hauser Operations App: Enter the serial number from the nameplate or scan the 2D matrix code (QR code) on the nameplate Endress+Hauser... - Page 120 Technical data Proline Cubemass C 100 HART Standard documentation Brief Operating Instructions Brief Operating Instructions for the sensor Measuring device Documentation code Proline Cubemass C KA01217D Transmitter Brief Operating Instructions Measuring device Documentation code Proline Promass 100 KA01334D Technical Information...
-
Page 121: Index
Proline Cubemass C 100 HART Index Index Degree of protection ..... 32, 110 Density ........111 About this document . - Page 122 Index Proline Cubemass C 100 HART Operating tools Via HART protocol ....44, 116 Hardware write protection ..... 78 Via service interface (CDI-RJ45) .
- Page 123 Proline Cubemass C 100 HART Index Preparing for electrical connection ... . 28 Display (Wizard) ......63 Preparing for mounting .
- Page 124 Index Proline Cubemass C 100 HART Sensor Sensor adjustment ......71 Mounting ....... 23 Simulation .
- Page 125 Proline Cubemass C 100 HART Index US units ....... 113 Wizard Current output 1 to n .
- Page 126 www.addresses.endress.com...
