1.9 Physical Requirements

The following sections show the physical dimensions, weight, mounting
requirements, ventilation requirements, and the perimeter required for
maintenance access for Transpector MPH.

1.9.1 Physical Dimensions

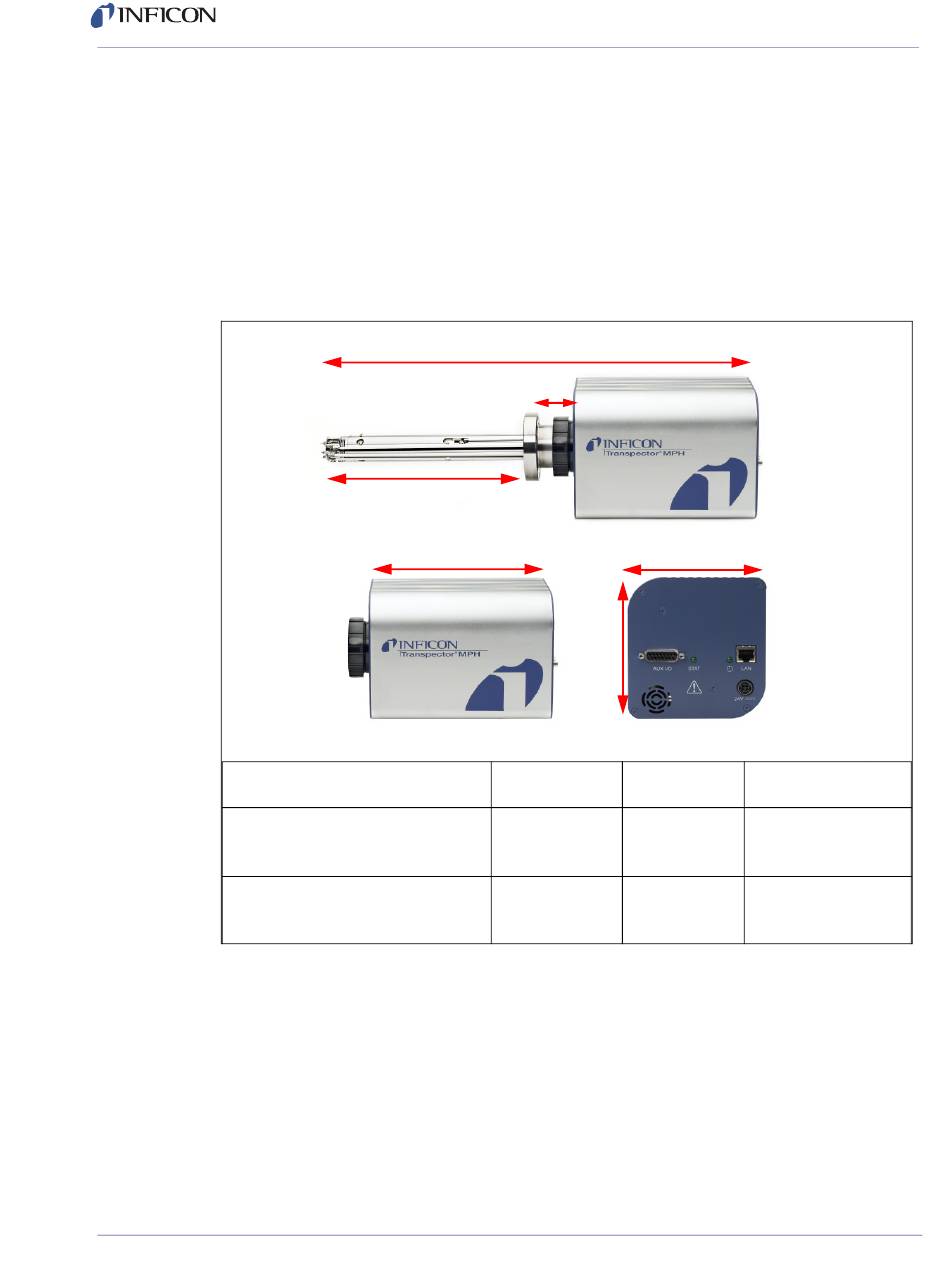

Figure 1-1
Figure 1-1 Physical dimensions
MPH100F, MPH200F,
MPH100M, MPH200M,

1.9.2 Weight

The Transpector MPH electronics module weighs 1.53 kg (3 lb. 6 oz.). The
Transpector MPH systems total weight depends on which sensors are used.
shows the overall physical dimensions for Transpector MPH.
(A)
169.9 mm (6.69 in.)
Transpector MPH
MPH300F
MPH300M
Transpector MPH Operating Manual
(C)
(B)
115.1 mm (4.53 in.)
121.7 mm
(4.79 in.)
(A) (B)
143 mm 50 mm
(5.63 in.) (1.98 in.)
199 mm 50 mm
(7.83 in.) (1.98 in.)
(C)
365.7 mm
(14.40 in.)
421.6 mm
(16.60 in.)
