1.9.3 Mounting Requirements

The sensor is mounted to a high-vacuum chamber with a 69.9 mm (2.75 in.) DN40
ConFlat
of 38.1 mm (1.5 in.).
The electronics module attaches to and is supported by the sensor.
Transpector MPH can be mounted in any position.

1.9.4 Ventilation Requirements

At least 25.4 mm (1 in.) of open space around the Transpector MPH electronics
module must be maintained for proper ventilation.

1.9.5 Maintenance Access

Easy access to Transpector MPH should be maintained for installation and
maintenance activities.

1.10 Electrical Power Requirements

Transpector MPH must be connected to a source of power as specified in the
following sections.

1.10.1 Required Supply Voltage

20 to 30 V(dc), 24 V(dc) typical

1.10.2 Current Rating

1.25 A maximum

1.10.3 Electrical Connection

Latching, 4-pin DIN connector, internally isolated from system ground.
See Figure

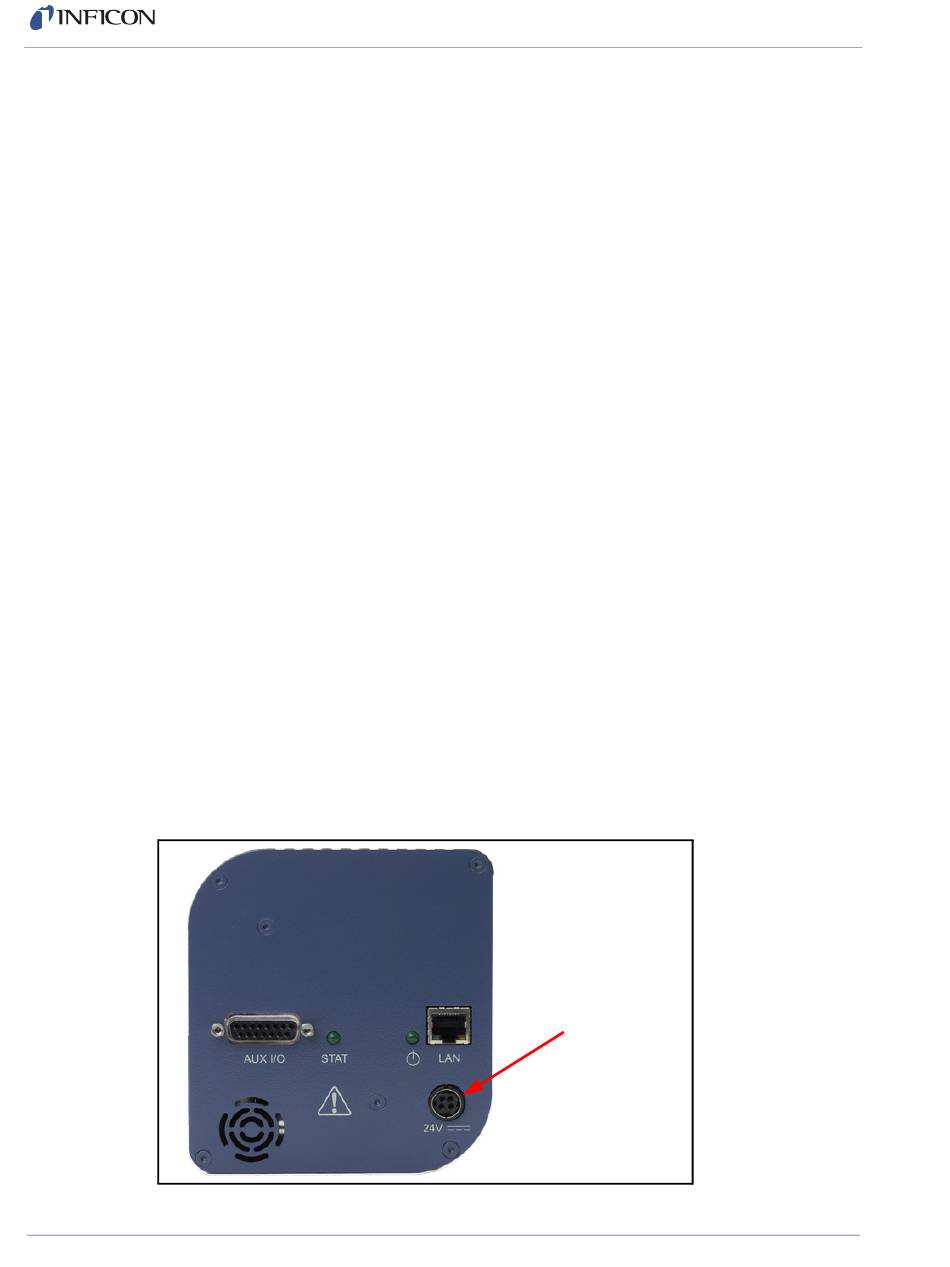

Figure 1-2 Transpector MPH connections
1 - 7
®
flange with an extension tube with an OD of 41.2 mm (1.62 in.) and an ID
1-2.
Transpector MPH Operating Manual
Electrical Connection
