5
Connect the supplied 1/8 in. nylon hose into the 1/8 in. connection of the
solenoid.
6
Connect the other end of the 1/8 in. nylon hose into the 1/8 in. gas connection
of the HPR valve. See

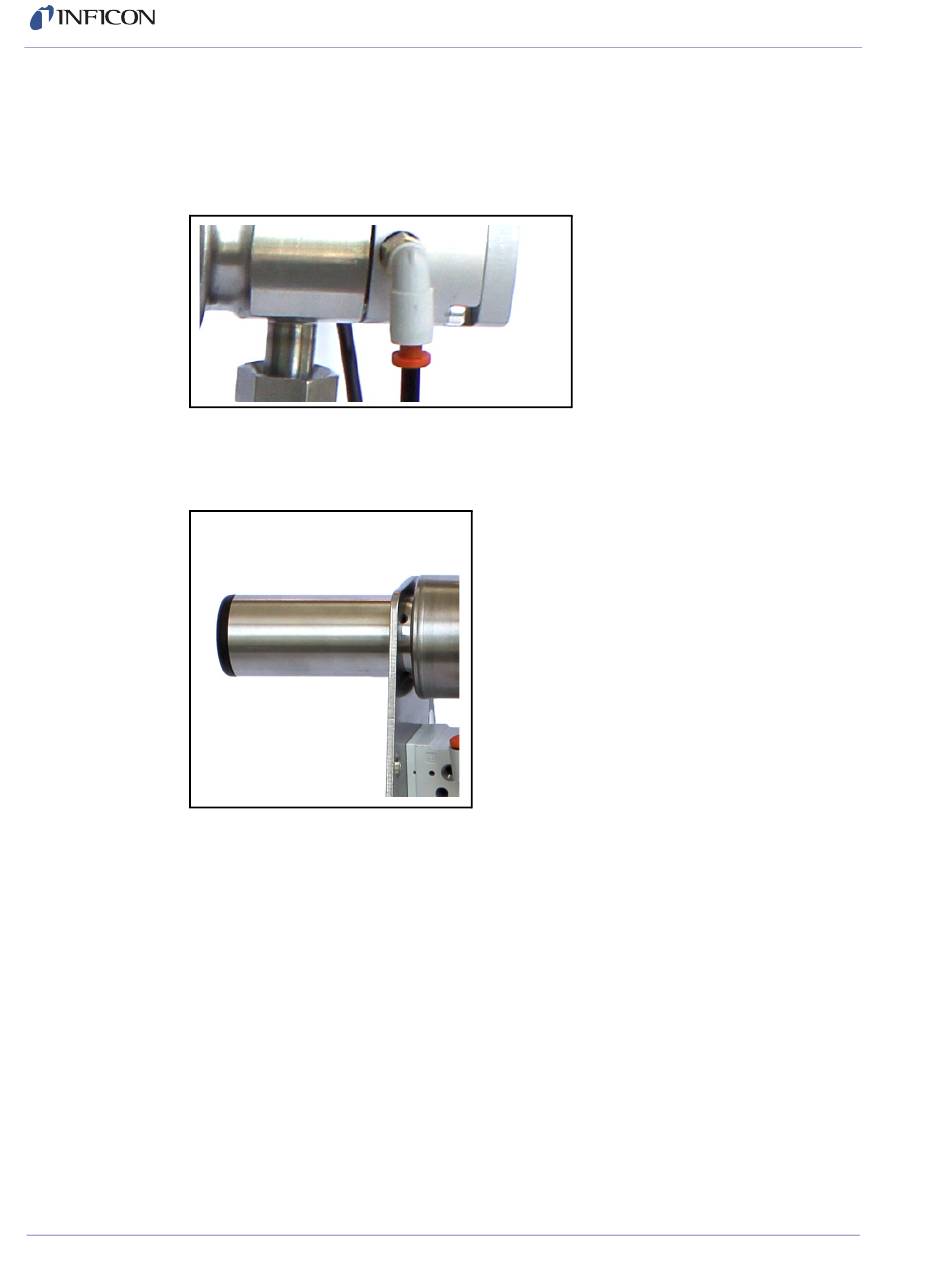

Figure 1-13 Valve gas connection
7
Insert the end of the calibration reference into the circular hole of the mounting
bracket. See
Figure 1-14 Calibration reference bracket connection
8
Connect the compressed air required for valve operation into the
1/4 in. connection of the solenoid.
1 - 21
Figure 1-13.
Figure 1-14.
