1.17.3 Connecting the Pirani Interlock Cable

The Pirani gauge is fully powered by the Transpector MPH Auxilliary I/O
connection. Install the RJ-45 connection of the interlock cable into the gauge and
connect the 15-pin D-Sub connection to the Auxilliary I/O port of Transpector MPH.
See Figure 1-9.

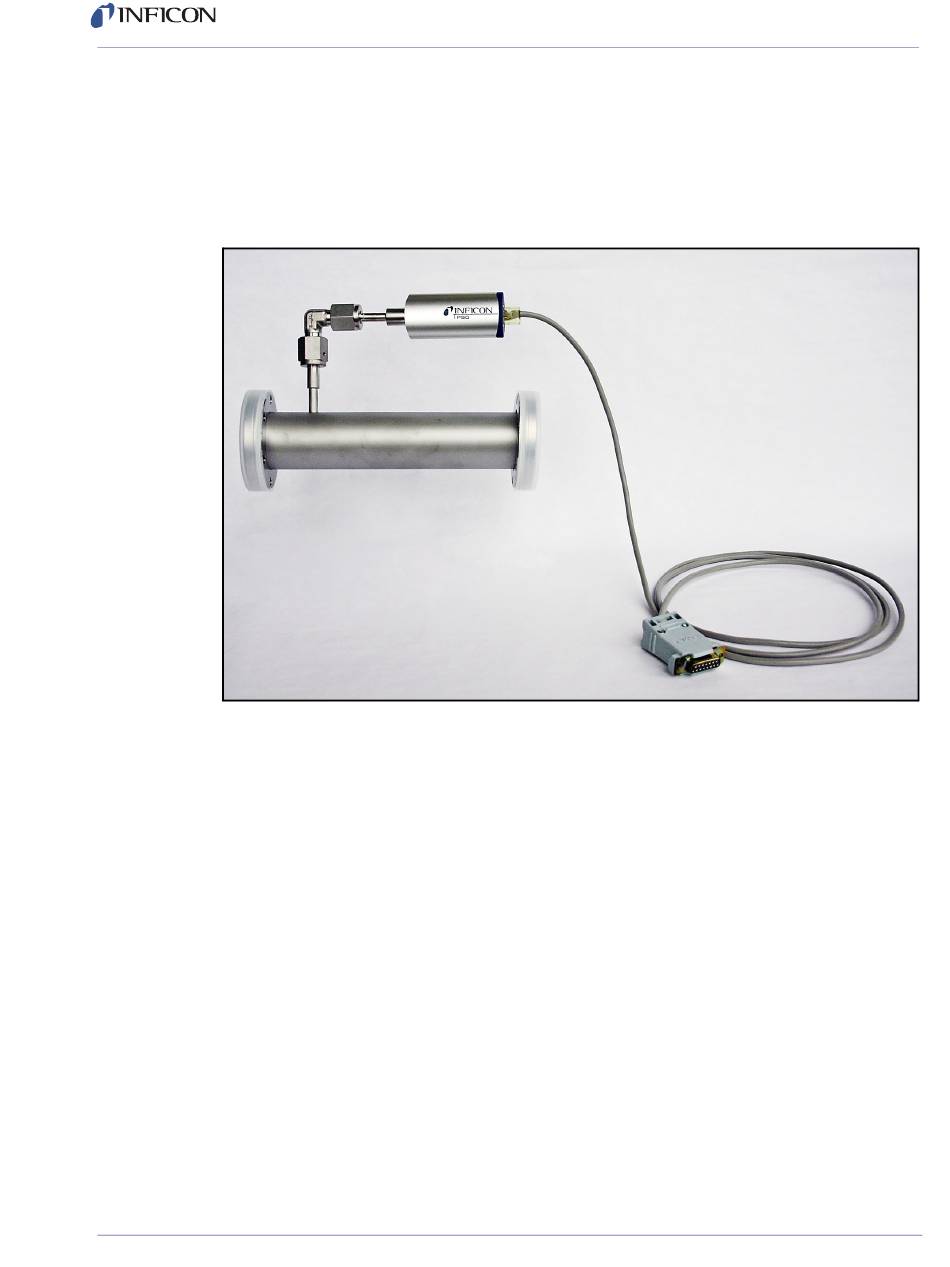

Figure 1-9 Assembled interlock
