1.6 Physical Requirements

1.6.1 Physical Dimensions

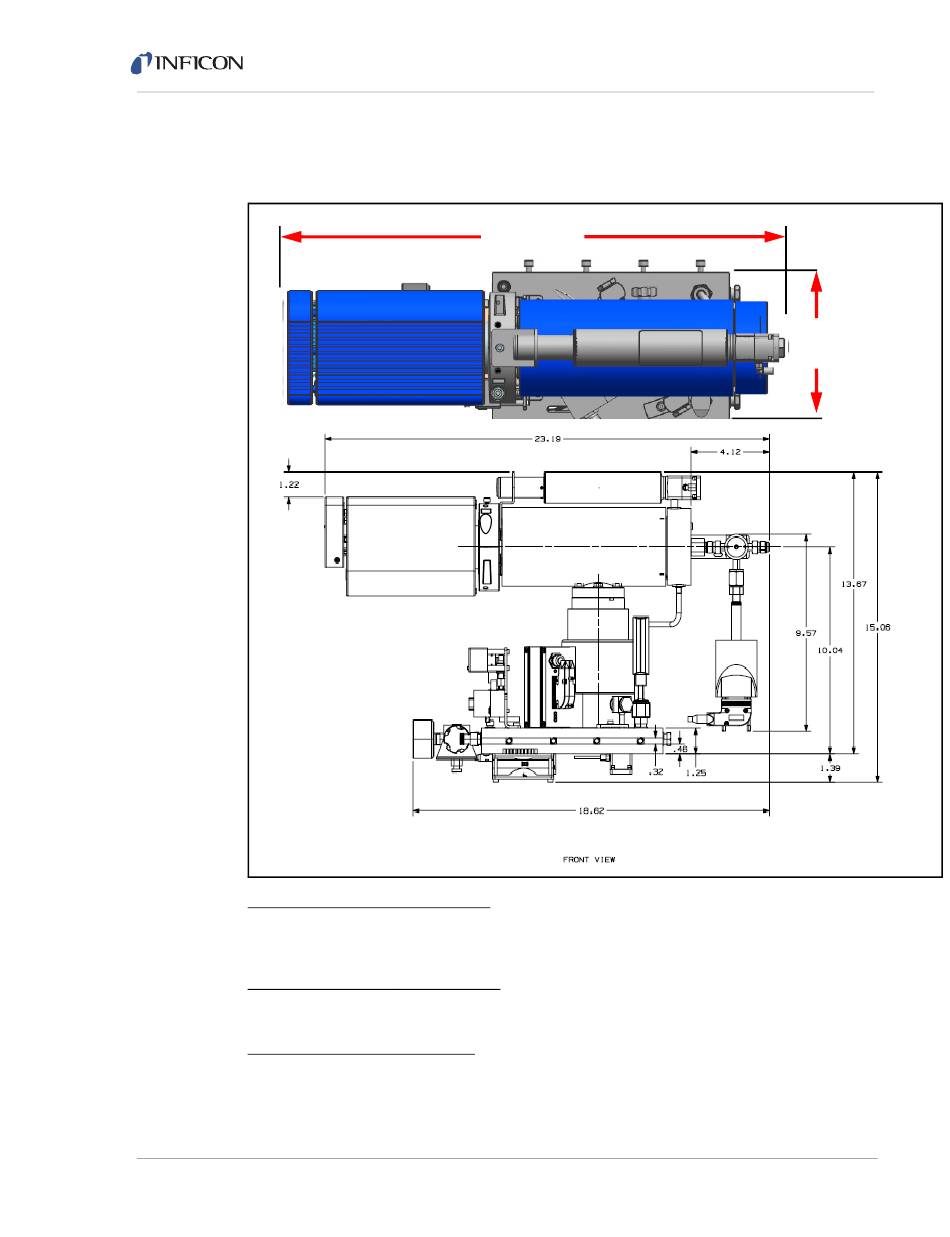

Figure 1-1 Pumping system dimensions
Pumping System dimensions
588.7 x 152 x 383 mm (23.18 x 6.0 x 15.08 in.) when configured with CDG and
3-way valve
ControllerController
195 x 207 x 89 mm (7.7 x 8.1 x 3.5 in.)
Foreline Pump dimensions
218 x 150 x 147 mm (8.6 x 5.9 x 5.8 in.)
NOTE: See
607 mm
(23.9 in.)
dimensions
Figure 2-8 on page 2-12
Transpector SPS Operating Manual
for cable connections.
152 mm
(6.0 in.)
1 – 6
